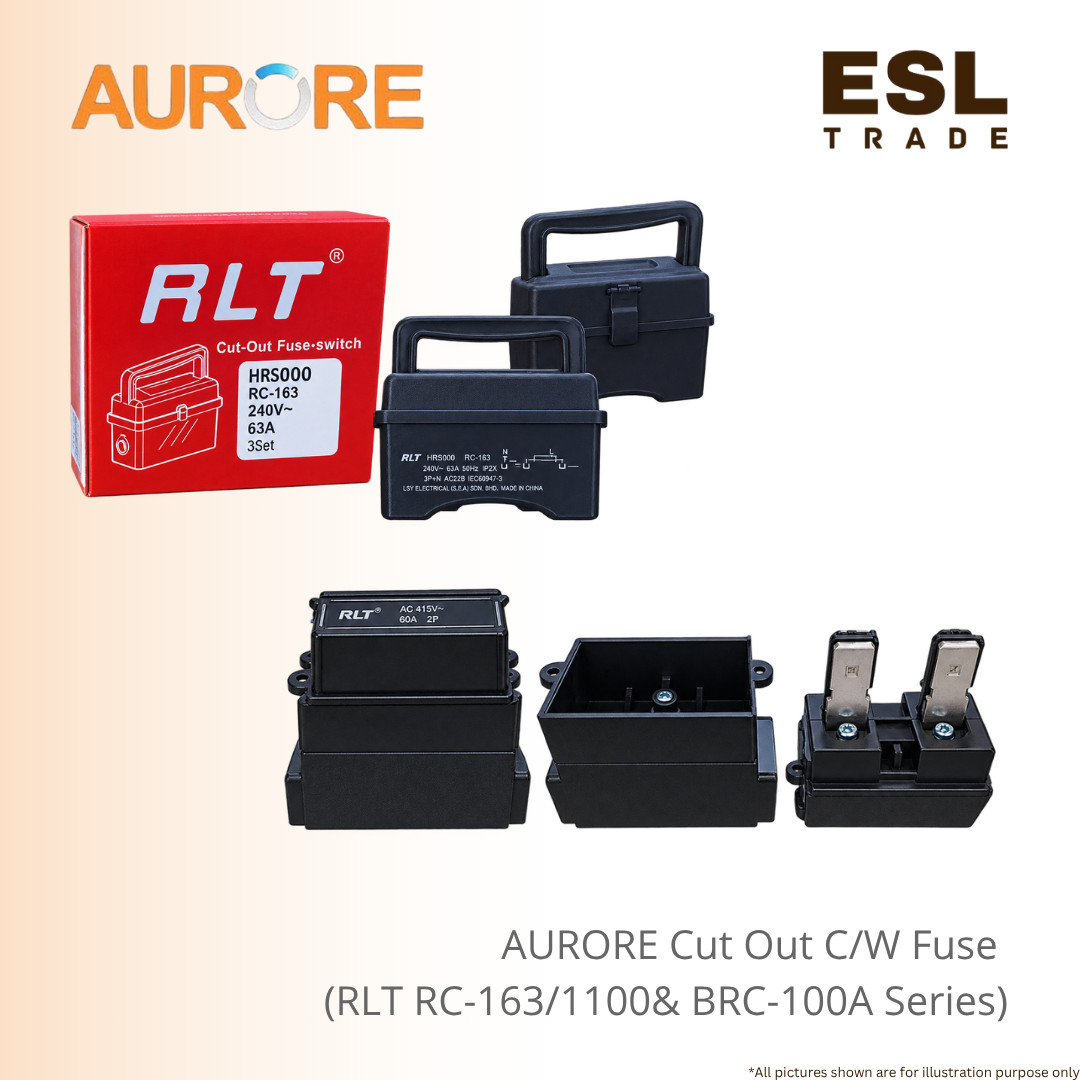

AURORE RLT Cut Out Fuse Switch Unit 63A 100A 240V Main Electrical Distribution Premium
Ensure robust overcurrent protection and reliable electrical service isolation with the RLT Cut-Out Fuse-Switch Unit Series (Models RC-163, RC-1100, and BRC-100A).
RLT Cut-Out Fuse-Switch Unit Series is designed as low-voltage cut-out fuse-switch disconnectors, these heavy-duty electrical units serve as essential protection points at main incoming power supply lines, distribution boards, and service control panels.
RLT Cut-Out Fuse-Switch Unit Series unit comes complete with a compatible fuse link (c/w Fuse) inside a high-insulation, flame-retardant protective housing.
The integrated carrier handle enables safe manual disconnection of the circuit during maintenance, servicing, or emergency overcurrent protection.
Operating at standard single-phase mains voltage (240V 50Hz), the series conforms to standard low-voltage switch disconnector specifications (such as IEC 60947-3 requirements shown on product casing).
The series includes three model variants to accommodate diverse current handling capacities:
-
RLT RC-163 Cut Out Fuse Unit (63A): Rated for 63A service at 240V 50Hz. Ideal for residential DB boards, light commercial distribution panels, and sub-circuits. Wholesale packaged in master cartons containing 60 pieces per carton (1CTN – 60PCS).
-
RLT RC-1100 Cut Out Fuse Unit (100A): Higher capacity 100A cut-out fuse unit suitable for heavy-duty main electrical incoming supply lines and commercial switchboards. Wholesale packaged in master cartons containing 60 pieces per carton (1CTN – 60PCS).
-
BRC-100A Cut Out Fuse Unit (100A): Heavy-duty 100A cut-out unit complete with fuse carrier base and carrier assembly for commercial and industrial supply boards. Wholesale packaged in master cartons containing 36 pieces per carton (1CTN – 36PCS).
Engineered with solid electrical contacts and secure mounting bases, this cut-out fuse series offers reliable service life for electrical contractor projects and maintenance supplies.
Product Details
RLT Cut Out Fuse Switch Unit
| Specification Parameter | RLT RC-163 (63A) | RLT RC-1100 (100A) | BRC-100A (100A) |
| Brand / Label | RLT | RLT | BRC / RLT Series |
| Model Designation | RC-163 (HRS000 RC-163) | RC-1100 | BRC-100A |
| Current Rating (Amperage) | 63A | 100A | 100A |
| Operating Voltage | 240V~ 50Hz (AC220) | 240V~ 50Hz | 240V~ 50Hz |
| Product Type | Cut-Out Fuse-Switch Disconnector | Cut-Out Fuse-Switch Disconnector | Cut-Out Fuse-Switch Unit |
| Included Components | Complete with Fuse (c/w Fuse) | Complete with Fuse (c/w Fuse) | Complete with Fuse (c/w Fuse) |
| Standard Reference | Low Voltage Cut-Out Fuse Switch (IEC60947-3) | Low Voltage Cut-Out Fuse Switch | Low Voltage Cut-Out Fuse Switch |
| Housing Material | Heavy-Duty Insulated Molded Casing | Heavy-Duty Insulated Molded Casing | Heavy-Duty Insulated Molded Casing |
| Wholesale Packaging | 60 Pieces / Carton (1CTN – 60PCS) | 60 Pieces / Carton (1CTN – 60PCS) | 36 Pieces / Carton (1CTN – 36PCS) |
| Recommended Applications | Main DB Boards, Sub-panels, Residential & Commercial Incoming Line Protection | Main Switchboards, Commercial Distribution Boards, High Current Line Protection | Main Electrical Supply Panels, Industrial Control Boards |
Common Product FAQs
Q: Does the RLT Cut-Out Unit come with the fuse included?
A: Yes, all models in this series (RC-163, RC-1100, and BRC-100A) come complete with cut out fuse (c/w Fuse) ready for installation.
Q: What is the difference in current rating between models RC-163, RC-1100, and BRC-100A?
A:
-
RC-163: Rated for 63A continuous load capacity.
-
RC-1100: Rated for 100A heavy-duty current capacity.
-
BRC-100A: Rated for 100A heavy-duty current capacity with dedicated carrier housing style.
Q: What is the primary function of a cut out fuse unit?
A: A cut-out fuse-switch unit serves as an overcurrent protection device and safe manual disconnecting switch at main incoming power supply lines or distribution panels.
Q: What standard line voltage do these cut out fuse units operate on?
A: These units operate on standard single-phase AC mains voltage of 240V at 50Hz.
Q: How many units are packed in a master wholesale carton?
A: Packaging varies by model:
-
RC-163 (63A): 60 pieces per carton (1CTN – 60PCS).
-
RC-1100 (100A): 60 pieces per carton (1CTN – 60PCS).
-
BRC-100A (100A): 36 pieces per carton (1CTN – 36PCS).
