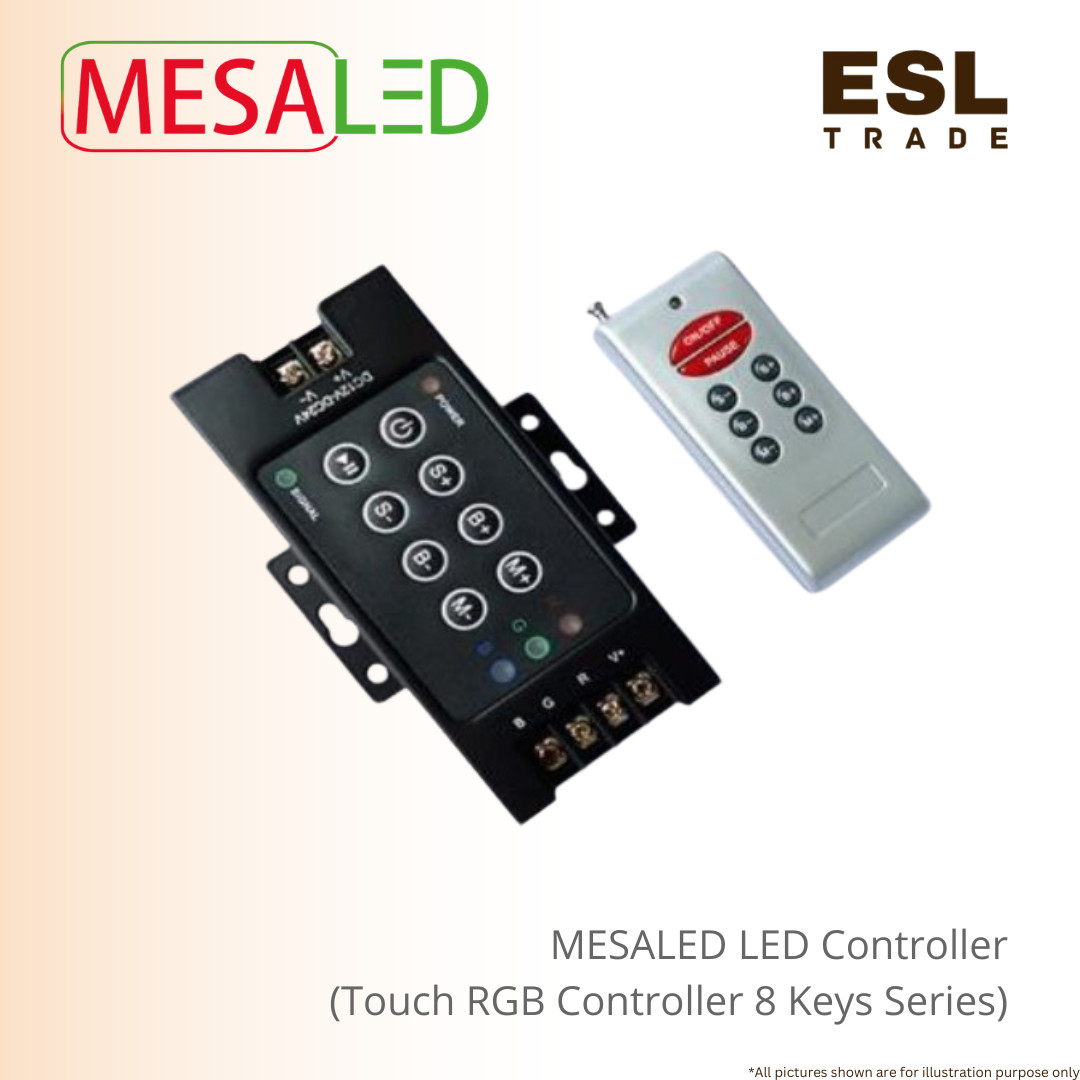

MESALED AC-1228 High-Power RGB LED Controller with 8-Key Wireless Remote DC 12V-24V 30A 3-Channel Dimmer for Professional Multi-Color LED Strip Installations

Description

MESALED AC-1228 High-Power RGB LED Controller with 8-Key Wireless Remote DC 12V-24V 30A 3-Channel Dimmer for Professional Multi-Color LED Strip Installations

The MESALED AC-1228 RGB Controller is a robust, high-capacity lighting management system designed for professional-grade LED installations requiring significant power and versatile control.

Built to handle demanding environments, this controller supports a wide voltage input range of DC 12V to 24V and is capable of delivering a massive total output power of 360W at 12V or 720W at 24V.

With a high output current of under 30A across three channels, it is the ideal solution for powering extensive runs of RGB LED strips, architectural accents, or large-scale commercial signage without the need for multiple smaller controllers.

Precision control is delivered through a convenient 8-key wireless infrared remote, which allows users to navigate through 25 distinct pre-programmed patterns.

The intuitive interface provides granular control over the lighting environment, including 100 levels of speed adjustment for dynamic modes and 256 steps of brightness progression for static colors.

This level of detail ensures that you can achieve the exact aesthetic required for any venue, from subtle ambient fades to high-energy color-changing sequences.

Designed for durability and ease of installation, the AC-1228 features a compact receiver measuring L121 x W75 x H25 mm, equipped with professional screw terminals for secure power and load connections.

The system includes a smart “pause” function to freeze static effects and is backed by a two-year warranty, ensuring long-term reliability for your professional lighting projects.

Whether managing complex decorative lighting or standard retail displays, the MESALED AC-1228 provides the power and flexibility needed for top-tier results.

Product Features :

• Massive Output Power: Capable of driving high-capacity loads with a maximum output of 360W at 12V or 720W at 24V.

• High Current Handling: Supports 3 channels with a total output current of less than 30A, suitable for extensive LED installations.

• 8-Key Remote Interface: Includes a wireless remote for easy toggling of power, modes, and intensity.

• Extensive Program Library: Features 25 built-in programs including static colors and dynamic pattern functions.

• Precision Dimming: Offers 256 steps of brightness adjustment, allowing for highly accurate light level customization.

• Adjustable Dynamics: Provides 100 speed levels for changing progression to match the pace of any event or environment.

• Industrial-Grade Build: Compact and sturdy receiver size (L121 x W75 x H25 mm) with secure screw terminal load interfaces.

• Extended Reliability: Comes with a two-year product warranty, providing professional-grade assurance for long-term use.

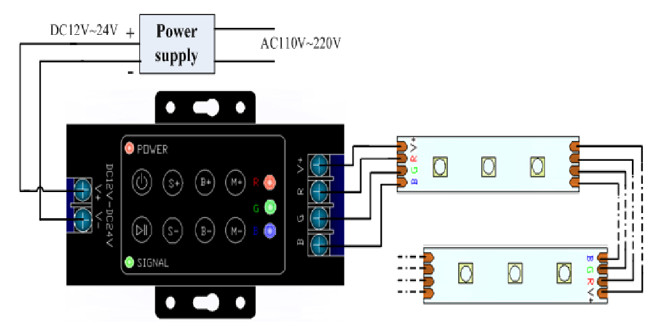

Product Details :
