TL-LITE 8mm COB LED Strip to Strip Light Connectors Solderless I, L, T, Cross Shape & Wire Terminal Joints
Achieve seamless, dot-free linear lighting installations with the professional-grade TL-LITE 8mm COB LED Strip to Strip Light Connectors.
Continuous Chip-on-Board (COB) LED strips are highly sensitive to gaps and clumsy wiring, which can ruin their signature uniform glow.
These premium, ultra-compact transparent clip connectors are specifically engineered to maintain perfect electrical continuity across 8mm COB tapes without creating ugly dark spots or structural bulk inside slim aluminum lighting profiles.
Designed for maximum versatility on complex job sites, this installation collection eliminates the need for tedious, time-consuming on-site soldering.
Contractors and interior designers can execute crisp corners, branching pathways, and extended runs using a complete matrix of structural layout variations.

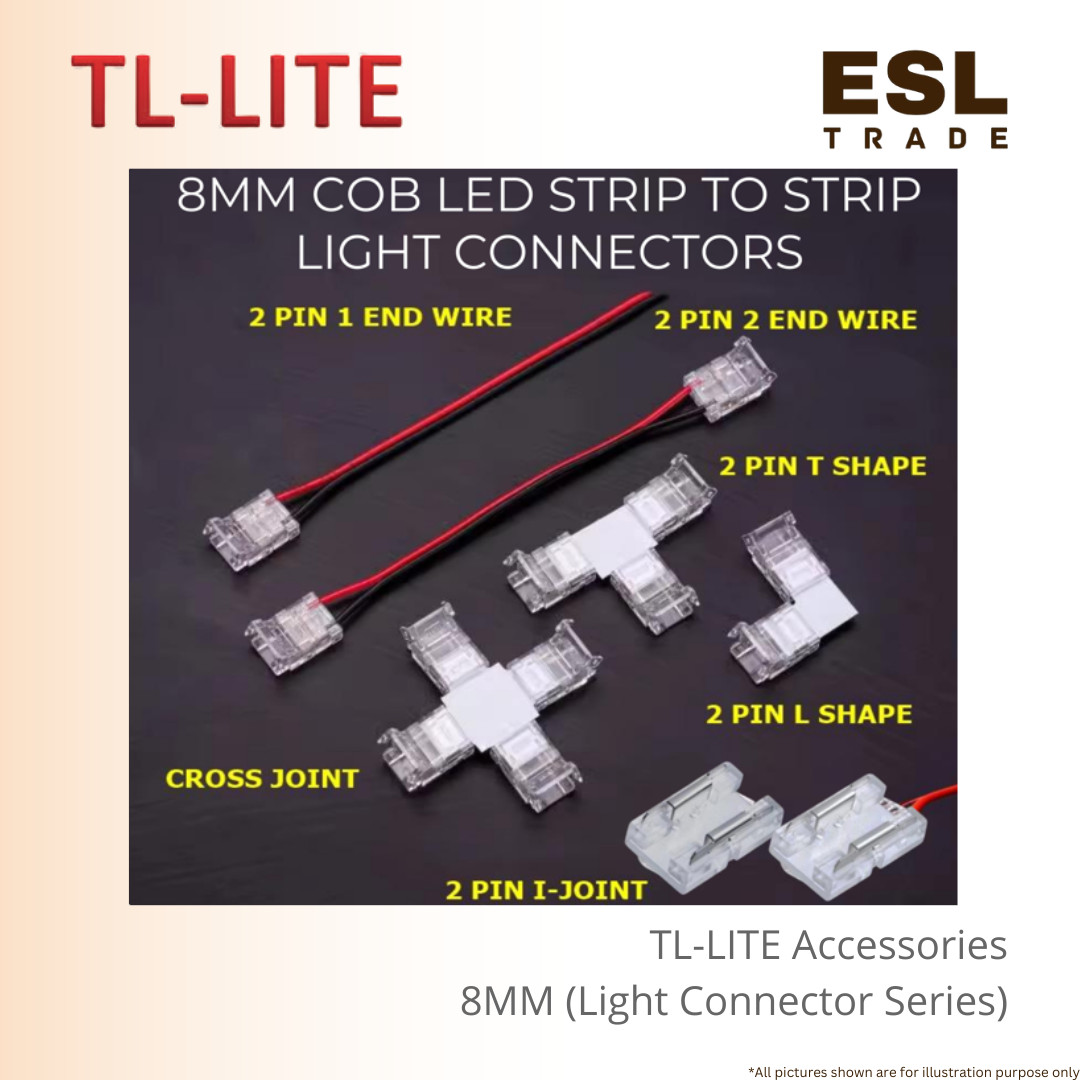

The lineup features standard Strip to Strip I-Joints for straight line extension, right-angle L-Joints for seamless corner transitions, T-Joints for split-direction paths, and complex Cross Joints for multi-directional structural grids.
Furthermore, the 2 Pin 1 End Wire and 2 Pin 2 End Wire models offer reliable pre-assembled pigtail bridges to jump power across gaps or route connections effortlessly back to your power supply.
Safety and high capacity are central to the TL-LITE connector series design. Unlike flimsy generic clips that suffer from loose connections and melted plastics, these high-current connectors are built with a robust mechanical snap-lock clamp that bites securely into the PCB pads.
They reliably handle structural loads with a maximum current rating of up to 5A or 6A depending on the specific joint architecture.
Give your residential, commercial, or office cove lighting projects a clean, ultra-reliable, and highly professional finish with these indispensable toolless termination components.
Product Details
Key Features
-
Brand: TL-LITE (TL Electric & Lighting)
-
Product Series: 8mm COB LED Strip to Strip Light Connectors
-
Connection Method: Solderless, tool-free mechanical snap-clamp
-
Housing Style: Transparent / Clear low-profile casing (prevents lighting shadows)
-
Pin Configuration: 2-Pin architecture optimized for single-color COB LED strips
-
Compatibility: Perfectly tailored for all standard 8mm wide flexible COB LED tapes
Technical Layout & Current Specification Matrix
| Connector Variant Name | Structural Connection Profile | Maximum Current Rating | Application Purpose |
| I-JOINT | Strip to Strip Straight I-Joint | Max Current: 6A | Extending two COB strips in a perfect straight line. |
| L-JOINT | Strip to Strip 90° Right-Angle L-Joint | Max Current: 5A | Running strips smoothly around sharp 90-degree corners. |
| T-JOINT | Strip to Strip 3-Way T-Shape Joint | Max Current: 5A | Splitting a single main lighting feed into two opposite directions. |
| CROSS-JOINT | Strip to Strip 4-Way Cross Joint | Max Current: 6A | Creating complex 4-way intersecting lighting grids or matrices. |
| 2 PIN 1 END WIRE | Strip to Raw Lead Wire Terminal | Heavy-duty rating | Connecting the start or end of a COB strip run to the main power lead. |
| 2 PIN 2 END WIRE | Strip to Strip Interconnected Wire Bridge | Heavy-duty rating | Jumping lighting signals over gaps, structural beams, or architectural steps. |
