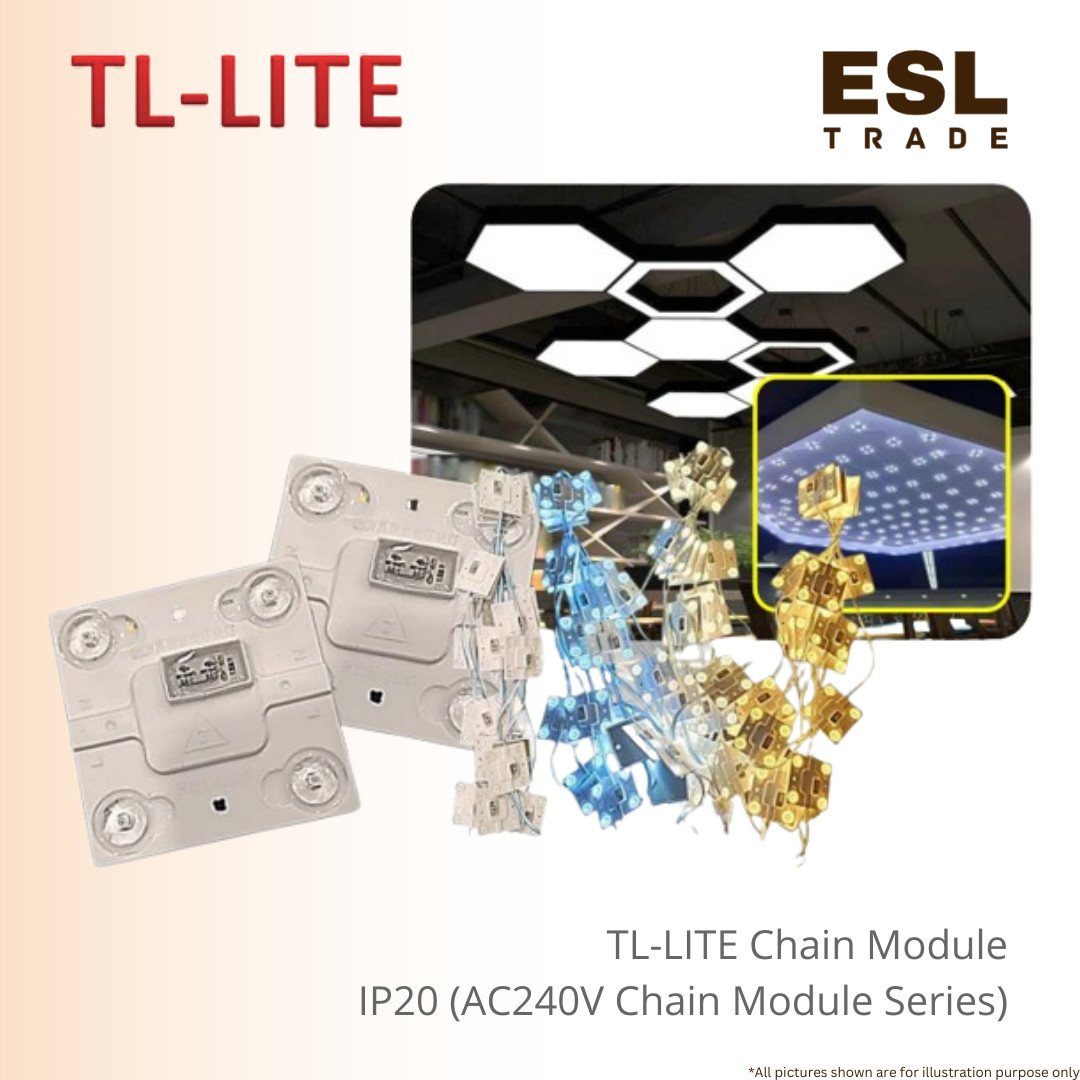

TL-LITE AC240V Chain LED Module 4W SMD 2835 Wide Angle 170° Backlighting for Stretch Ceilings, Hoardings & Flex Boards
Achieve flawless, shadow-free illumination across expansive structural areas with the heavy-duty TL-LITE AC240V Chain LED Module.
This TL-LITE AC240V Chain LED Module high-performance architectural lighting component is engineered explicitly for high-visibility commercial applications, offering an ideal backlighting system for modern stretch ceilings, construction hoardings, retail lightboxes, and large flex board advertisements.
Running directly on an standard high-voltage AC 240V power framework, it eliminates the need for external low-voltage transformers, simplifying your electrical layouts and significantly decreasing installation time and hardware costs on massive job sites.
Equipped with premium SMD 2835 LED technology, each robust 65x65mm square block outputs a strong 4W power profile.
To eliminate the common problem of hot-spotting behind translucent fabrics or thin advertising skins, every module integrates an advanced PMMA optical lens that spreads light at an ultra-wide 170-degree beam angle.
Combined with a highly conductive Aluminum PCB substrate that accelerates heat dissipation, this system pumps out a crisp, uniform 400 lumens of light per module.
To match your project’s aesthetic intent, the series scales across three specialized color temperatures: an upscale 3000K Warm White, a balanced 4000K Cool White, and an ultra-bright 10000K Sky White optimized for deep signage contrast.
These IP20 indoor-rated units are packaged in highly convenient installation runs consisting of 20 pieces per row, totaling 80 high-density LEDs per chain.
Maximize your architectural impact and sign clarity with this powerful plug-and-play lighting solution.
Product Details
Key Features
-
Brand: TL-LITE (TL Electric & Lighting)
-
Product Line: AC240V Chain LED Module Series
-
High-Voltage Convenience: Works directly on AC 240V mains, saving space by omitting external step-down power supplies.
-
Optical Uniformity: Advanced PMMA lenses flatten light throw to create a smooth ambient canvas behind translucent surfaces.
-
Primary Applications: Translucent stretch ceilings, advertising hoardings, commercial flex boards, retail lightboxes, corporate logo signs, and architectural bulkhead arrays.
Technical Specifications Matrix
| Technical Attribute | Specification Data Value |
| Model Circuit Type | AC240V CHAIN LED MODULE |
| Working Input Voltage | AC 240V High Voltage Mains |
| Power Consumption per Module | 4 Watts (4W) |
| Internal LED Specification | Premium SMD 2835 Core |
| Optical Lens Diffusion Angle | 170° Ultra-Wide Flood Beam |
| Luminous Output Intensity | 400 Lumens (400LM) per module |
| Ingress Protection Code | IP20 Indoor / Enclosed Space Rated |
| Structural Board Materials | High-Conductivity Aluminum PCB + PMMA Lens |
| Physical Block Dimension | 65mm × 65mm |
| Standard Packaging Setup Quantity | 20 Pieces per Row Line (Total 80 LEDs per set) |
Color Temperature (CCT) Options Matrix
| CCT Value | Visual Profile Setting | Target Application |
| 3000K | Warm White ambient glow | Upscale hotel lobbies, luxury residential stretch ceilings, lounges. |
| 4000K | Neutral / Cool White natural look | Modern office spaces, showrooms, retail display coves. |
| 10000K | High-Contrast Sky White pierce | Outdoor commercial signage hoardings, high-visibility flex boards. |
