Description

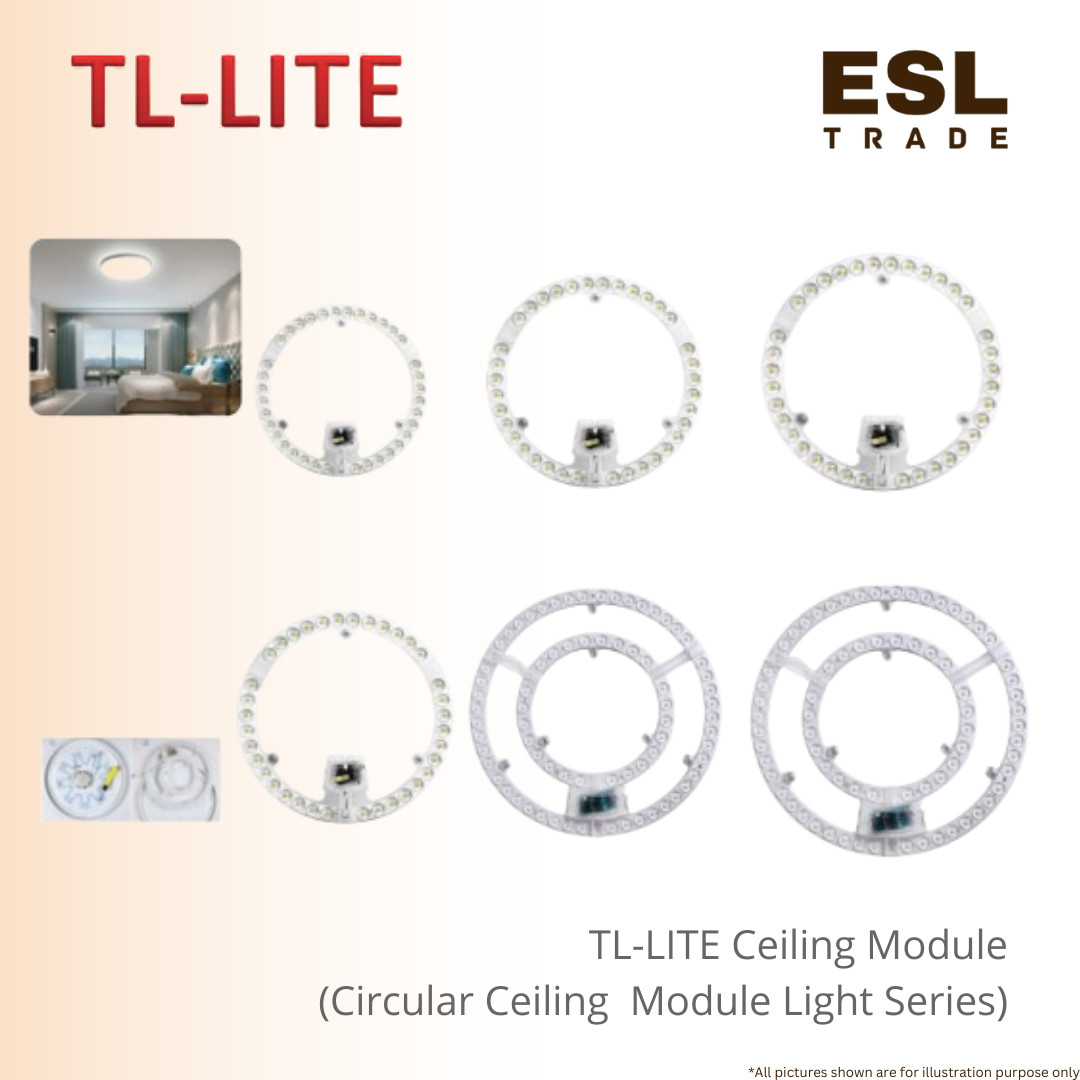

TL-LITE Circular LED Ceiling Module Retrofit Light Panel with Magnet Base AC220V-240V 180° Beam Angle Replacement Round Lamp Plate 12W 18W 24W 36W 48W 72W 100W
Breathe new life into your residential or commercial lighting fixtures with the commercial-grade TL-LITE Circular LED Ceiling Module Retrofit Light Panel Series.
TL-LITE Circular LED Ceiling Module Retrofit Light Panel Series is engineered as a premium, cost-saving upgrade solution, these high-performance circular plates allow electricians, facility managers, and homeowners to seamlessly replace outdated fluorescent circular tubes or failing integrated gear trays without discarding the decorative outer lamp housing.
TL-LITE Circular LED Ceiling Module Retrofit Light Panel Series is operating efficiently on standard low-frequency grid lines from AC 220V to 240V, this advanced light engine delivers uniform, glare-free illumination directly into living spaces, office corridors, retail shops, and utility rooms.
The true versatility of the TL-LITE Circular LED Ceiling Module Retrofit Light Panel series lies in its massive, scalable selection of sizing and power tiers, custom-tailored for any room scale.
Contractors can select from an extensive range including 12W (120mm), 18W (155mm), 24W (195mm), 36W (230mm), 48W (265mm), 72W (305mm), and the ultimate high-output 100W (350mm) configuration.
To match specific project requirements or environmental moods, select models offer a crisp 6500K Cool Daylight option, while others feature a dynamic 6500K / 3-in-1 color-shifting profile to toggle ambiance at the flick of a switch.
Installation is incredibly fast and hassle-free, requiring no drilling or complex mounting hardware.
Each round light panel comes equipped with integrated magnets, allowing it to snap instantly onto any metal ceiling fan or lamp base plate.
Paired with an extra-wide 180° light distribution beam angle to completely eliminate harsh dark corners, this eco-friendly retrofitting kit significantly cuts down on labor costs, reduces energy consumption, and extends overall fixture lifespans.
Product Details
Key Features
-
Brand: TL-LITE (TL Electric & Lighting)
-
Product Line: Magnetic Ceiling Circular Module Light Series
-
Tool-Free Installation: Equipped with a dedicated built-in heavy-duty magnet backing for instant snap-on mounting inside metallic light pans.
-
Maximum Light Coverage: Specially engineered optics deliver a wide 180° beam angle to ensure even, shadow-free illumination across full spaces.
-
Primary Applications: Fast internal conversion for flush mount bedroom lamps, living room fixtures, kitchen dome lights, corridor ceiling pans, and round balcony lights.
Technical Specifications Matrix
| Power Rating (Watt) | Physical Size / Diameter | Correlated Color Temperature (CCT) | Input System Voltage | Beam Angle | Standard Carton Quantity |
| 12W | 120 mm | 6500K Cool Daylight | AC 220V – 240V | 180° | 100 PCS / Carton |
| 18W | 155 mm | 6500K Cool Daylight | AC 220V – 240V | 180° | 100 PCS / Carton |
| 24W | 195 mm | 6500K Cool Daylight | AC 220V – 240V | 180° | 100 PCS / Carton |
| 36W | 230 mm | 6500K Cool Daylight | AC 220V – 240V | 180° | 60 PCS / Carton |
| 48W | 265 mm | 6500K / 3-in-1 Selectable Color | AC 220V – 240V | 180° | 40 PCS / Carton |
| 72W | 305 mm | 6500K / 3-in-1 Selectable Color | AC 220V – 240V | 180° | 40 PCS / Carton |
| 100W | 350 mm | 6500K / 3-in-1 Selectable Color | AC 220V – 240V | 180° | 40 PCS / Carton |
