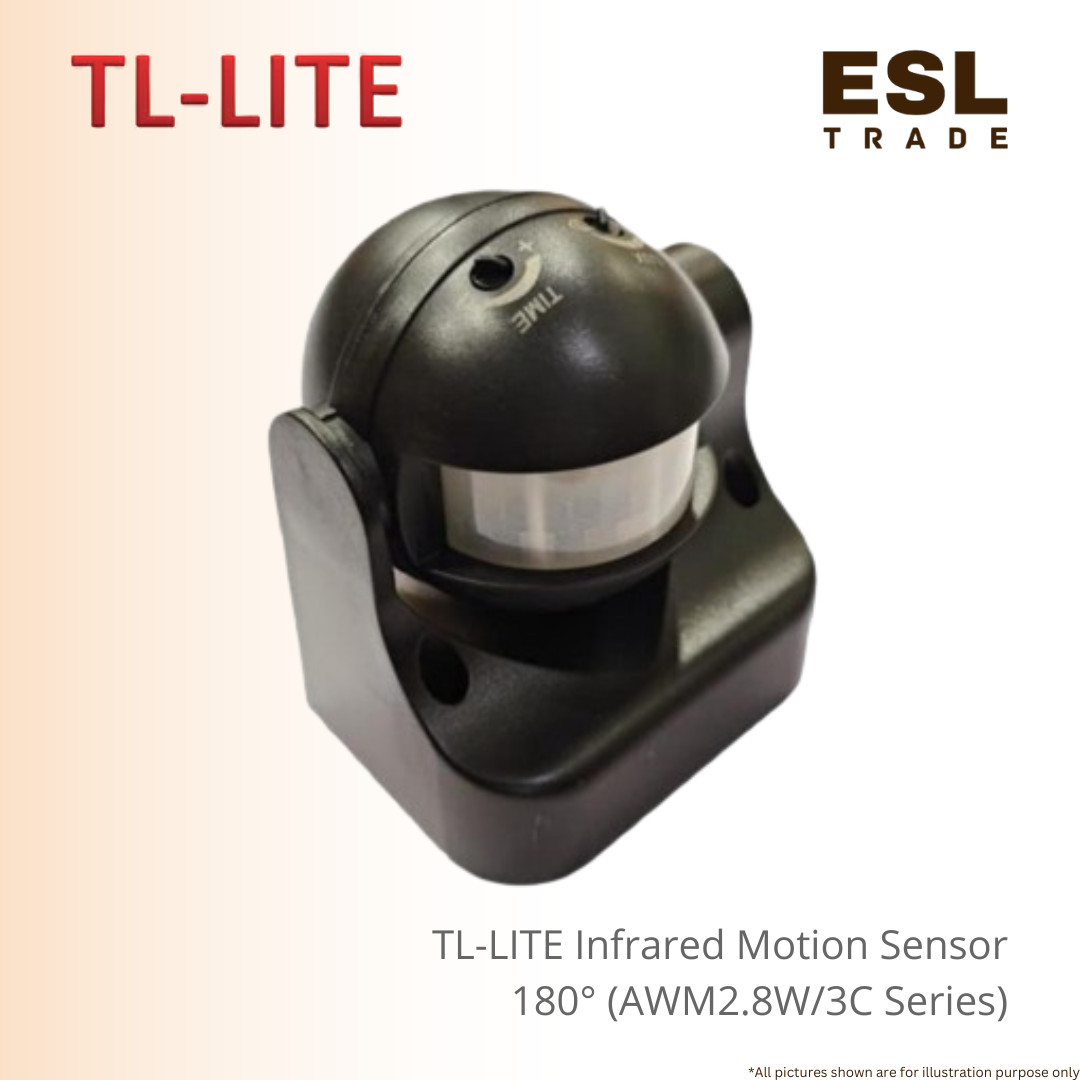

TL-LITE™ Infrared Motion Sensor 180° PIR Motion Detector AWM2.8W/3C Excellent for Outdoor Security Lighting
Enhance Your Security and Energy Efficiency with the TL-LITE 180° PIR Motion Detector
Upgrade your lighting automation and property security with the TL-LITE Infrared Motion Sensor. Engineered for precision, reliability, and ultimate convenience, this advanced Passive Infrared (PIR) motion detector provides seamless, hands-free lighting control wherever you need it most. Whether you are looking to secure your home’s exterior, optimize warehouse lighting, or cut down on electricity bills in commercial spaces, this high-performance sensor is your go-to solution.
Intelligent 180-Degree Motion Tracking
At the heart of the TL-LITE Motion Sensor is an accurate, wide-angle 180-degree detection zone. This wide tracking field ensures that no blind spots are left exposed, providing premium protection against intruders while delivering instant illumination the moment you step into its range. With a maximum detection distance of up to 12 meters (at temperatures under 24°C) and an ideal installation height ranging between 1.8 to 2.5 meters, it covers broad expanses effortlessly, making it perfect for driveways, gardens, corridors, and garages.
Fully Customizable Ambient Light and Time-Delay Settings
Unlike rigid, standard sensors, the AWM2.8W/3C model gives you absolute control over its operation. It features fully adjustable ambient light settings ranging from less than 10 LUX up to 2000 LUX. This allows you to program the sensor to work exclusively at night, during twilight hours, or even throughout broad daylight. Furthermore, its flexible time-delay setting allows you to choose how long your lights remain active once motion stops, adjusting smoothly from a quick 10 seconds (+/-3s) up to a full 5 minutes (+/-1min).
Robust Load Compatibility and Ultra-Low Power Consumption
The TL-LITE Infrared Motion Sensor is built to handle robust electrical demands. It supports a substantial rated load of up to 1200W for traditional incandescent lamps and up to 300W for modern energy-saving lamps and LEDs. Despite its heavy-duty capacity, the sensor itself is highly efficient, drawing less than 0.9W of electricity during both active work and static standby modes. This ultra-low power consumption ensures that your automation stays highly economical.
Built for Diverse Environments
Designed to withstand various environmental conditions, the device operates smoothly in humidity levels below 93% RH. It tracks moving speeds from 0.6 to 1.5 meters per second, picking up regular human strides instantly without false triggers from minor wind or vibrations. The catalog also includes clear, versatile wiring schematics, including Parallel Switch and Standard Switch wiring layouts, allowing for professional, trouble-free integration into existing setups.
Product Details :
| Technical Parameter | Specification |
| Brand | TL-LITE™ (TL Electric & Lighting) |
| Product Line | AWM Infrared Motion Sensor Lamp |
| Model Code | AWM2.8W/3C |
| Power Supply | 110V/AC–240V/AC |
| Frequency | 50/60Hz |
| Ambient Light Sensitivity | < 10–2000 LUX (Adjustable) |
| Time-Delay | Min: 10 sec ± 3 sec / Max: 5 min ± 1 min |
| Rated Load (Incandescent) | 1200W |
| Rated Load (Energy Saving) | 300W |
| Detection Distance | 12m Max (< 24°C) |
| Detection Angle | 180° |
| Working Humidity | < 93% RH |
| Installation Height | 1.8m–2.5m |
| Power Consumption | < 0.9W (Work) / < 0.9W (Static) |
| Detection Moving Speed | 0.6–1.5 m/s |
| Standard Carton Qty | 50 PCS |
