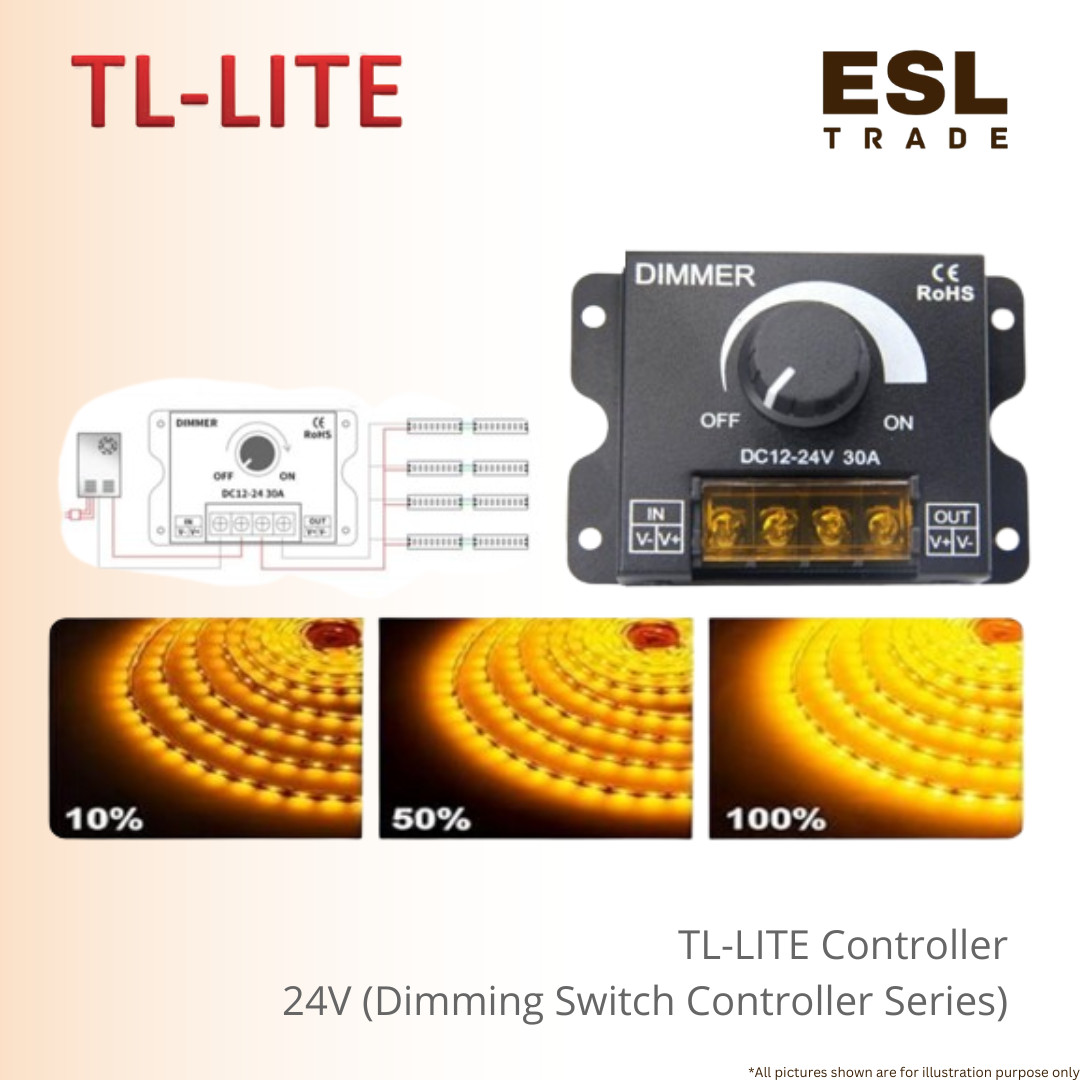

TL-LITE DC12V-24V 30A LED Dimming Switch Controller Manual Stepless Rotary Dimmer Excellent for Single Color Strip Lights
Take full control of your linear architectural lighting with the heavy-duty TL-LITE DC12V-24V Dimming Switch Controller.
TL-LITE DC12V-24V Dimming Switch Controller is engineered for maximum reliability and simplicity, this manual rotary dimmer provides a smooth, flicker-free 0% to 100% stepless dimming range.
It is the ultimate control solution for adjusting the ambiance of single-color LED strip lights, tape lights, and low-voltage lamps across residential coves, kitchen under-cabinets, or commercial retail displays.
TL-LITE DC12V-24V Dimming Switch Controller is built to handle high-capacity installations, this robust controller supports an impressive input current of up to 30A.
This allows it to manage substantial electrical loads effortlessly delivering up to 360W at 12V or a massive 720W at 24V from a single control point.
One of its standout engineering advantages is the integrated automatic memory function.
If power is cut or turned off, the controller automatically remembers and restores the exact previous brightness level when turned back on, eliminating the need for daily manual readjustments.
TL-LITE DC12V-24V Dimming Switch Controller is designed with both functionality and durability in mind, the unit features a highly efficient internal architecture with an ultra-low static power consumption of just 1W.
Its compact, low-profile chassis measures 85mm (L) x 66mm (W) x 20mm (H) and includes heavy-duty, open screw-terminal blocks for secure In (V+/V-) and Out (V+/V-) wiring lines.
TL-LITE DC12V-24V Dimming Switch Controller is certified with CE and RoHS compliance standards and rated for operating temperatures from 20°C to 60°C, this manual dial dimmer offers professional installers an afford
Product Details:
Key Features
-
Brand: TL-LITE (TL Electric & Lighting)
-
Product Name: DC12-24V Dimming Switch Controller
-
Dimming Performance: 0 ~ 100% Stepless Dimming (Adjustable Range: 0~3%~100%)
-
Memory Function: Integrated automatic memory retention for last brightness status
-
Target Application: Primarily used to adjust single-color LED light lamps and flexible LED strips
-
Certifications: CE, RoHS compliant
Technical Specifications Matrix
| Technical Attribute | Specification Data Value |
| Input Voltage Range | DC 12V – 24V Constant Voltage |
| Maximum Input Current | 0 – 30A |
| Maximum Load Capacity (Power) |
12V: 360W Max 24V: 720W Max |
| Internal Power Consumption | Low standby rating of 1W |
| Physical Dimensions | 85mm (L) × 66mm (W) × 20mm (H) |
| Working Temperature Range | 20°C ~ 60°C |
| Wiring Terminal Type | 4-Screw Terminal Blocks (IN: V+/V- | OUT: V+/V-) |
