TL-LITE PVC Cable Connector Terminal Block 10A 15A 20A 30A Screw & Quick Clip Wire Joiner Excellent for Junction Box Electrical Wiring Top Reliability

Description

TL-LITE PVC Cable Connector Terminal Block 10A 15A 20A 30A Screw & Quick Clip Wire Joiner Excellent for Junction Box Electrical Wiring Top Reliability

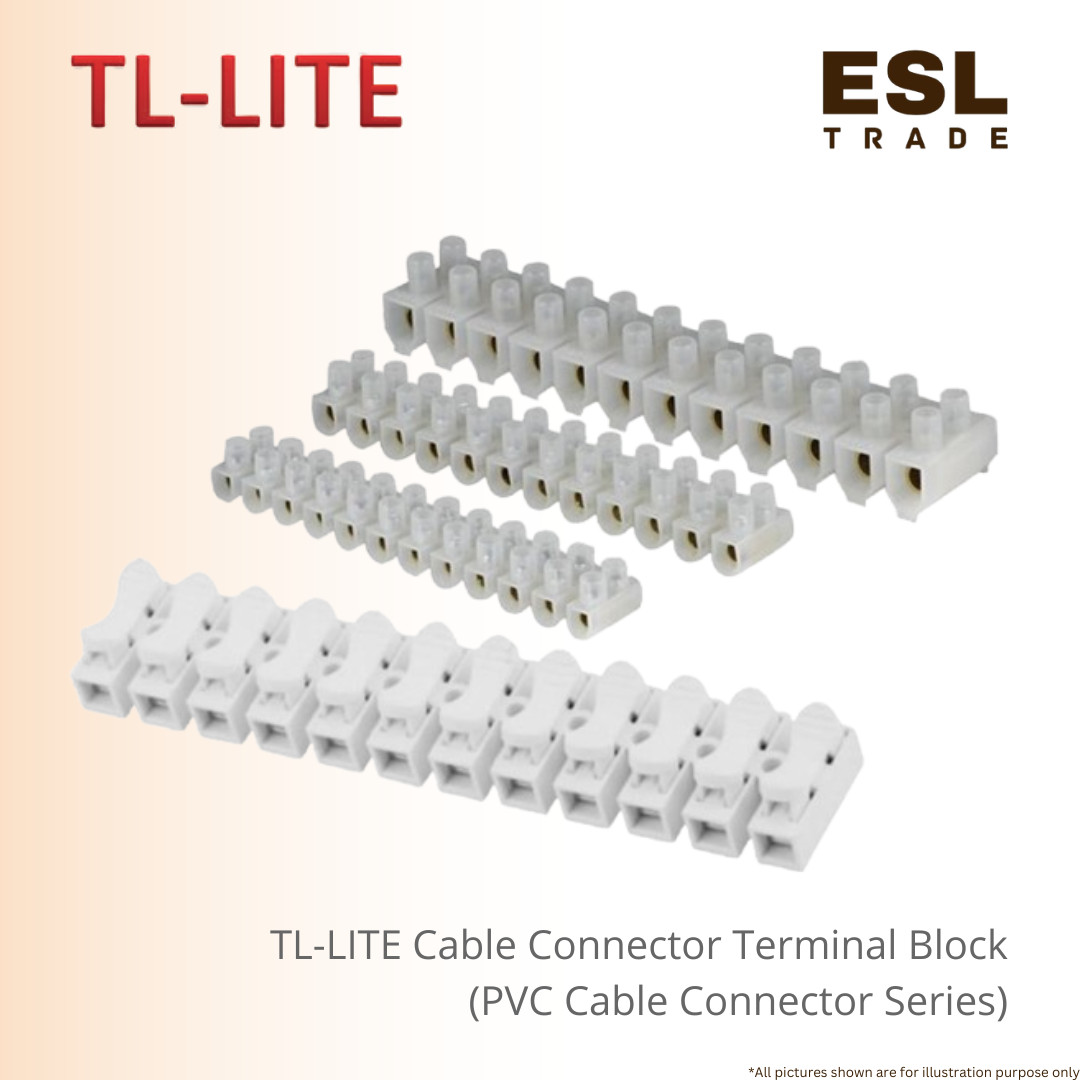

Secure and Streamline Your Electrical Installations with the TL-LITE PVC Cable Connector Terminal Block Series

Achieving clean, stable, and code-compliant electrical connections is foundational to any successful wiring project, whether you are managing heavy distribution boards or simple lighting configurations.

The TL-LITE PVC Cable Connector Terminal Block collection provides a highly versatile, industrial-grade solution designed to eliminate loose wiring hazards and simplify multi-point cable joining.

Engineered to act as a secure mechanical bridge between electrical conductors, these terminal strips prevent short circuits, withstand physical stress, and bring complete structural order to your junction boxes, light fixtures, and distribution panels.

Dual Termination Systems: Traditional Screw vs. Innovation Quick Clip

To satisfy varying installation styles and specific field conditions, the TL-LITE product line offers two distinct termination mechanisms:

• Top Termination Screws Variant: The classic standard for permanent, heavy-duty electrical clamping. Featuring solid metal internal inserts tightened by high-torque screws, this system ensures an incredibly rigid grip on solid or stranded core copper lines. It is available across four separate sizes ranging up to 30A to match different cable gauges.

• Quick Clip Terminal Block Variant: Designed specifically to decrease labor time drastically. This toolless variation utilizes integrated pressure levers that clamp down on stripped wire ends instantly. Rated firmly at 15A, it is perfect for fast-paced commercial installations, maintenance repairs, or tricky overhead lighting arrays where driving individual screws can be exhausting   .

Robust Tiered Current and Size Matrix

Electrical configurations vary from low-power signals to heavy appliance draws. To prevent thermal overloading and ensure complete compliance with regional building bylaws, this series features five meticulously calculated specification variants:

• 10A Screw Base (107mm x 17mm x 13mm): Compact form factor optimized for low-amp lighting systems or domestic control lines.

• 20A Slim Screw Base (123mm x 20mm x 13mm): Engineered for balanced appliance distribution lines.

• 20A Deep Screw Base (123mm x 20mm x 15mm): Features an extended height channel to comfortably accept thicker wire insulation layers safely.

• 30A Heavy-Duty Screw Base (152mm x 20mm x 15mm): A robust structural strip designed to anchor heavy power inputs safely.

• 15A Quick Clip Base (123mm x 20mm x 13mm): A specialized tool-free lever configuration built for rapid wire termination.

Durable PVC Insulation Engineering

Safety is non-negotiable when dealing with mains electrical currents. The terminal block housings are molded from high-grade Polyvinyl Chloride (PVC), which acts as an exceptional electrical insulator.

This flexible yet sturdy PVC material handles impacts easily, provides reliable dielectric resistance, and can be cut cleanly down with wire snips to create shorter custom-length terminal segments as needed.

This adaptability makes the strips a staple choice for electrical contractors setting up complex junction arrays or lighting specifications.

Product Details :
