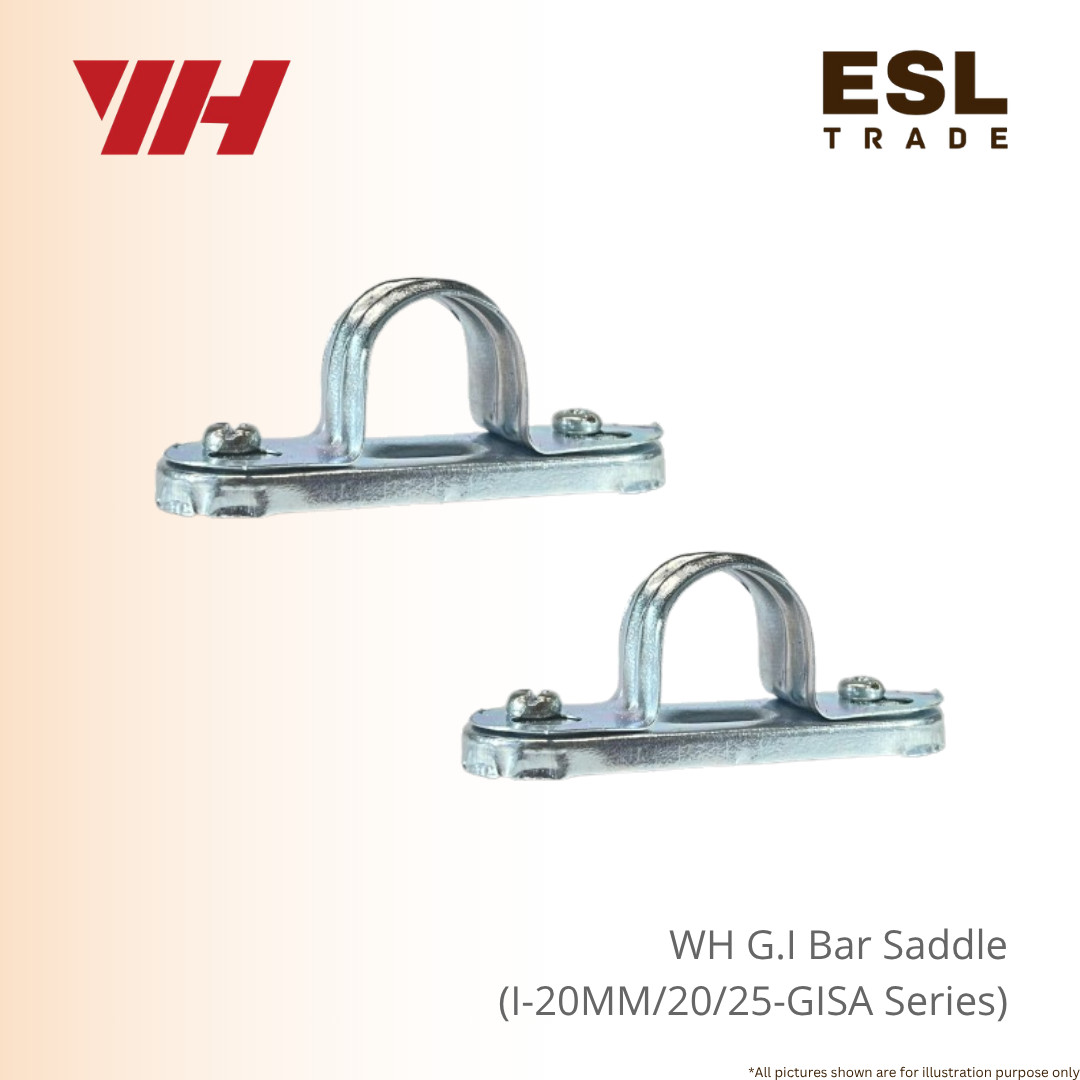

WIN INDIA G.I. Bar Saddle Galvanized Steel Spacer Bar Clamp (20mm, 3/4″ & 1″) Heavy Duty Electrical Conduit Base Fastener Reliable Quality
The INDIA G.I. Bar Saddle series provides a heavy-duty, raised spacer mounting solution for securing galvanized steel and rigid PVC electrical conduits away from walls, ceilings, and structural surfaces.
Unlike flat plain saddles, this saddles feature an integrated base bar spacer that elevates the conduit pipe slightly above the mounting surface, preventing moisture buildup behind the piping and allowing easy alignment with surface-mounted junction boxes and switch enclosures.
Manufactured from high-strength steel with a protective galvanized iron (G.I.) zinc coating, the INDIA Bar Saddle range delivers excellent resistance against rust, corrosion, and physical impact.
This makes them an ideal choice for surface-mounted conduit containment across industrial factories, plant rooms, multi-story car parks, commercial buildings, and outdoor electrical infrastructure.
Key structural and functional advantages of the INDIA G.I. Bar Saddle series include:
-
Elevated Base Bar Design: Integrated spacer bar raises the conduit off the mounting surface, ensuring smooth entry into box knockouts while preventing dirt and water accumulation behind the pipe.
-
Galvanized Protection: Durable zinc-plated finish guards against oxidation, rusting, and environmental weathering in humid or exposed conditions.
-
Dual-Screw Clamping Plate: Heavy-gauge arch clamp plate secures firmly to the spacer base using dual screw fasteners, holding conduits tightly in place under high vibration.
-
Standard Conduit Sizing: Available in three precise metric and imperial sizes: 20mm (Order Code: 1-20MM-GISA), 3/4″ (Order Code: 1-20GISA), and 1″ (Order Code: 1-25GISA).
Whether running exposed wiring routes in commercial facilities or industrial containment networks, the INDIA G.I. Bar Saddle series offers neat, long-lasting, and structurally sound conduit support.
Product Detail
| Description | Order Code |
|
INDIA 20MM GI BAR SADDLE
|
I-20MM-GISA
|
|
INDIA 3/4” GI BAR SADDLE
|
I-20GISA
|
|
INDIA 1” GI BAR SADDLE
|
I-25GISA
|
Frequently Asked Questions (FAQ)
Q1: What is the main difference between a GI Plain Saddle and a GI Bar Saddle?
A : A plain saddle mounts flat directly against the wall surface. A bar saddle includes a raised base bar spacer that lifts the conduit away from the wall.
This standoff clearance allows the conduit to line up straight into knockout entries on surface-mounted boxes without requiring offset bends.
Q2: What do the order codes 1-20MM-GISA, 1-20GISA, and 1-25GISA represent?
-
1-20MM-GISA: Represents the 20mm metric-designated GI Bar Saddle.
-
1-20GISA: Represents the 3/4″ imperial-designated GI Bar Saddle (fits 20mm outer diameter conduits).
-
1-25GISA: Represents the 1″ imperial-designated GI Bar Saddle (fits 25mm outer diameter conduits).
Q3: Why is elevating the conduit off the wall beneficial?
A : Elevating the conduit prevents water, moisture, and dust from being trapped between the conduit pipe and the wall, which reduces the risk of long-term corrosion on both the wall surface and the conduit.
Q4: How is the INDIA G.I. Bar Saddle installed?
A : First, the base bar is secured to the wall or ceiling using a central mounting screw or anchor.
The conduit pipe is then placed onto the curved channel of the base, and the top arch clamp plate is fastened over the pipe using the two side screws.
Q5: Are these bar saddles suitable for outdoor and high-humidity environments?
A : Yes, the galvanized iron construction with zinc protective plating provides rust and corrosion resistance, making them suitable for indoor factory floors, underground car parks, and outdoor exposed conduit networks
