Description

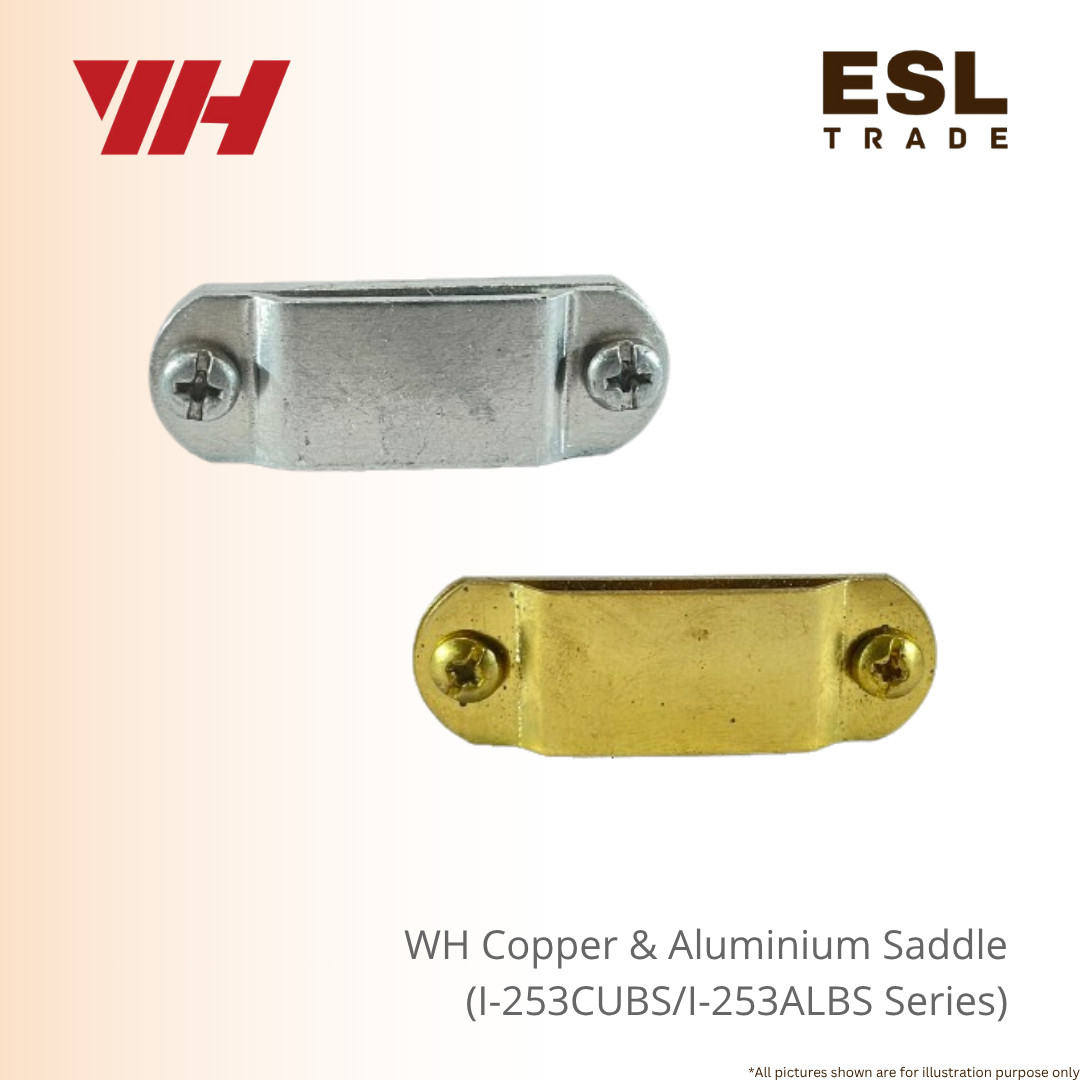

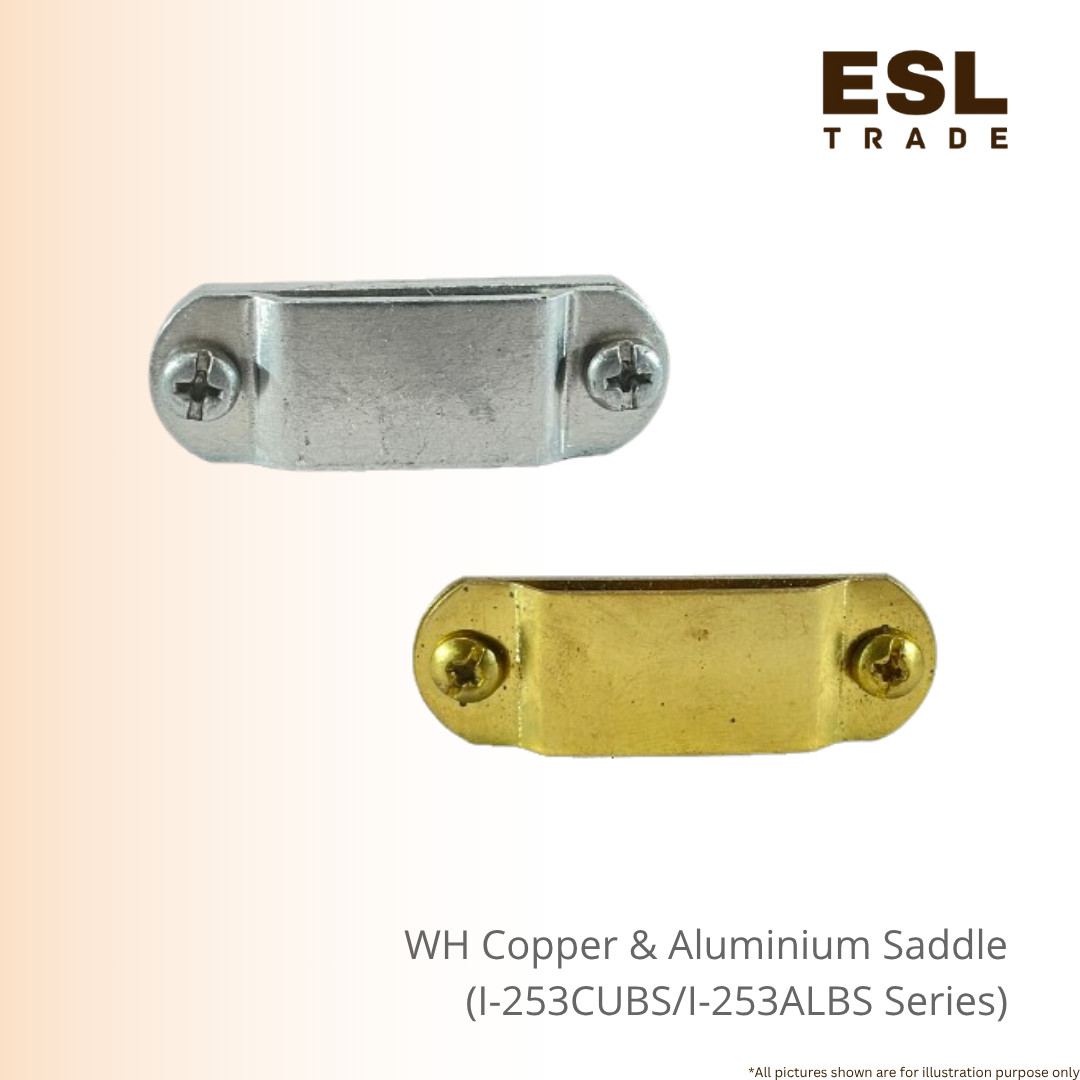

WIN India Copper & Aluminium Bar Saddle Tape Clamp Holder (1” x 1/8” / 25mm x 3mm) Lightning Protection & Earthing System Accessories Excellent Protection
The India Copper and Aluminium Bar Saddle Series provides a secure, robust, and reliable mounting solution for fixing flat earthing tape and lightning conductor bars to building walls, concrete pillars, structural steelwork, and masonry surfaces.
Engineered specifically to support standard 1” x 1/8” (25mm x 3mm) flat tape conductors, these metallic bar saddles ensure that earthing and lightning protection conductors remain firmly aligned and elevated along their routing paths.
Manufactured from high-grade metallic alloys, the series offers two material variants to perfectly match the conductor tape material utilized in the earthing layout:
-
Copper Bar Saddle (Order Code: 1-253CUBS): Crafted from high-conductivity solid copper/brass alloy, designed for securing bare copper tape conductors without risk of galvanic degradation or bimetallic corrosion.
-
Aluminium Bar Saddle (Order Code: 1-253ALBS): Crafted from durable aluminum alloy, designed specifically for holding aluminum tape conductors in lightweight or cost-effective lightning down-conductor networks.
Key structural and functional advantages of the India Bar Saddle range include:
-
Material Matching Prevention: By pairing copper tape with copper saddles and aluminum tape with aluminum saddles, installers prevent galvanic corrosion between dissimilar metals under outdoor weather exposure.
-
Precision Dimensioning: Tailored specifically for 1” x 1/8” (25mm x 3mm) conductor bars, ensuring a snug clamp grip using dual zinc-plated screw fasteners.
-
Weatherproof & Durable: Built to endure environmental exposure, moisture, and thermal expansion across outdoor building facades, roofs, and grounding pits.
Whether installing earthing grids for main switchboards or setting up roof-level lightning protection down-conductors, the India Copper and Aluminium Bar Saddle Series delivers dependable, long-term conductor support
Product Detail
| Description | Order Code |
|
INDIA 1″ X 1/8″ COPPER BAR SADDLE
|
I-253CUBS
|
|
INDIA 1″ X 1/8″ ALUMINIUM BAR SADDLE
|
I-253ALBS
|
Frequently Asked Questions (FAQ)
Q1: What size conductor bars fit these INDIA bar saddles?
A : These saddles are specifically sized to fit standard 1 inch x 1/8 inch (approx. 25mm x 3 mm) flat conductors, copper earthing tapes, or aluminium busbars.
Q2: Should I choose the copper or aluminium bar saddle?
A : You should match the material of the saddle to the material of the conductor tape being installed.
Use the Copper Bar Saddle (1-253CUBS) for copper conductors, and the Aluminium Bar Saddle (1-253ALBS) for aluminium conductors to prevent galvanic corrosion.
Q3: How are these bar saddles mounted to surfaces?
A : Each saddle features pre-drilled holes on both sides of the center channel. You can secure them to concrete, masonry, wood, or metal surfaces using standard screws and wall plugs.
