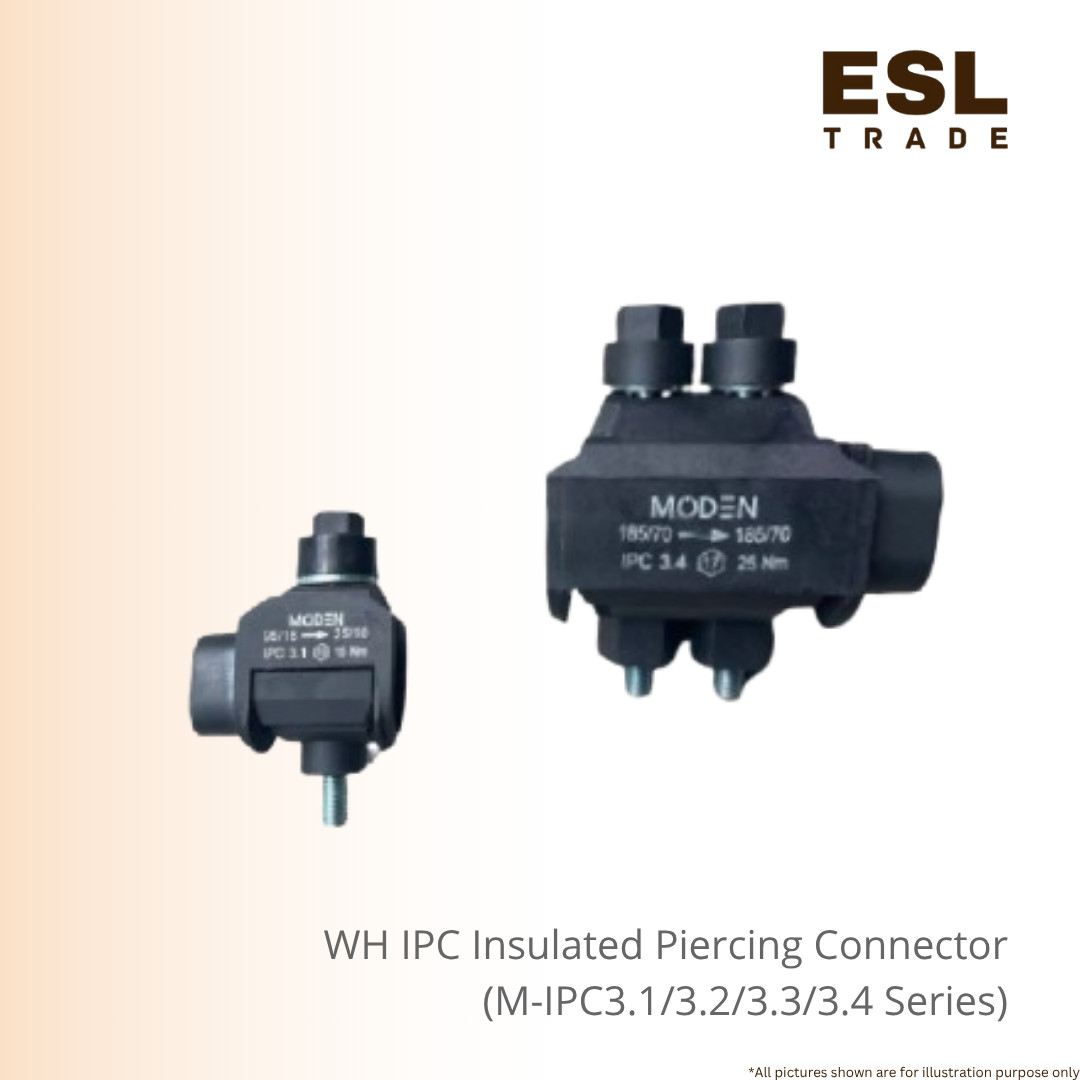

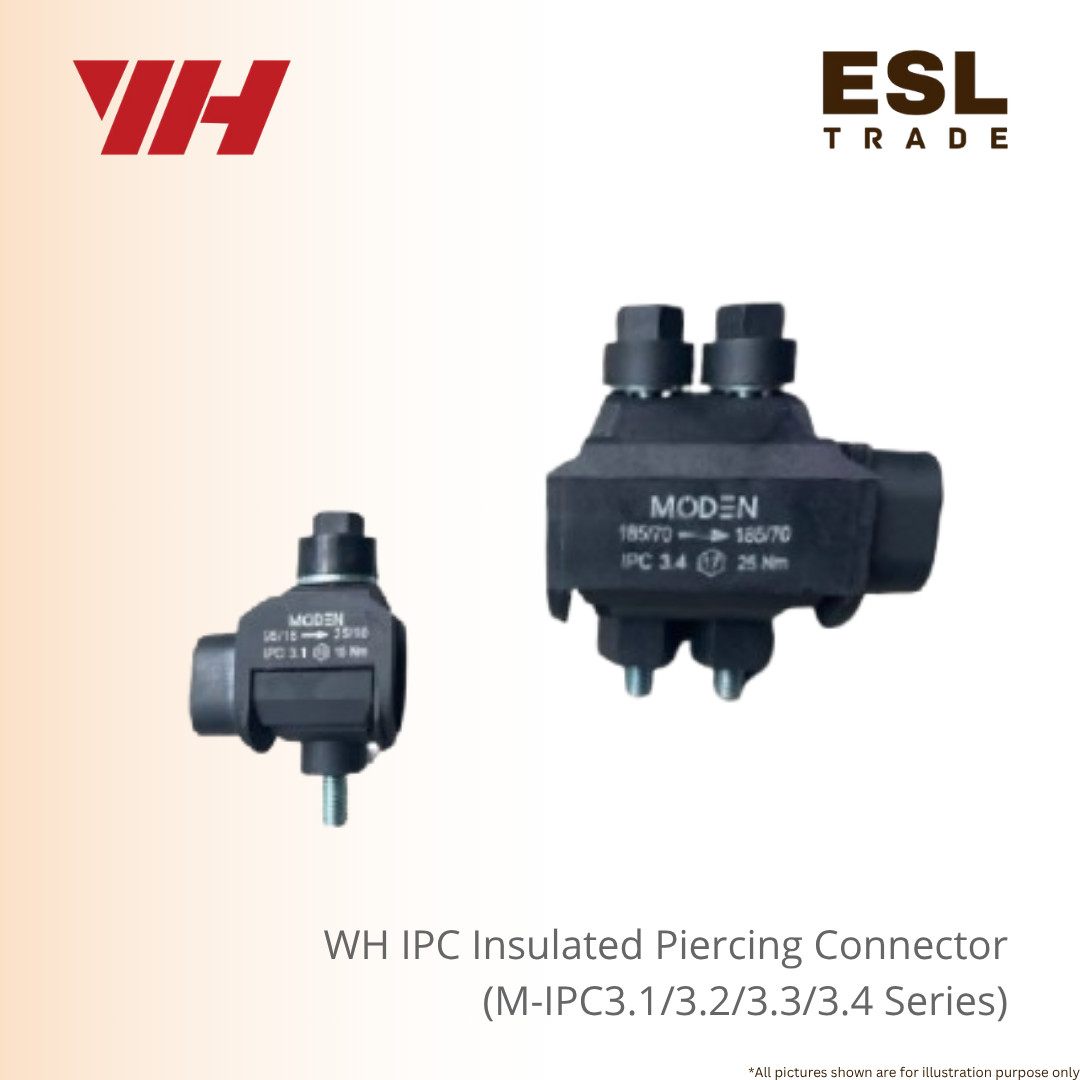

WIN MODDEN Insulated Piercing Connector IPC (M-IPC3.1 to M-IPC3.4) Excellent Cable Tap Clamp High Reliability Connection
The MODDEN Insulated Piercing Connector (IPC) Series provides a safe, efficient, and reliable method for making main-to-branch power line tap connections on low-voltage aerial bundled cable (ABC) systems and overhead distribution networks.
Designed to eliminate the need for outer cable insulation stripping, these piercing clamps utilize precision copper/aluminum alloy teeth that pierce through the outer jacket to establish direct electrical contact with conductor strands without compromising line integrity.
Engineered with high-strength, weather-resistant thermoplastic housing, MODDEN connector IPC units deliver waterproof, dustproof, and corrosion-resistant seals around connected conductors.
The integrated shear-head torque nut ensures proper tightening pressure during installation by shearing off automatically when reaching optimal contact torque (such as 25Nm on M-IPC3.4 model), eliminating installer over-tightening or loose connection errors.
The MODDEN IPC range offers four main sizing models to accommodate various wire gauges:
-
M-IPC3.1 (95/16–25/10mm²): Designed for connecting sub-main distribution lines to smaller service drop lines or street lighting circuits.
-
M-IPC3.2 (95/70–95/70 mm²): Optimized for mid-size sub-main line splices and equal-size branch connections.
-
M-IPC3.3 (185/120–25/16mm²): Built to tap low-voltage branch lines directly from heavy-duty feeder main lines.
-
M-IPC3.4 (185/70–185/70mm²): Built for heavy-duty overhead line taps requiring up to 25 Nm tightening torque.
Whether deployed in municipal street lighting projects, residential utility distribution, or industrial overhead power feeds, MODDEN connectors IPC deliver continuous power continuity and long-term durability
Product Details :
| Description | Order Code |
|
MODEN 3.1 95/16-25/10MM INSULATED PIERCING CONNECTOR
|
M-IPC3.1
|
|
MODEN 3.2 95/70-95/70MM INSULATED PIERCING CONNECTOR
|
M-IPC3.2
|
|
MODEN 3.3 185/120-25/16MM INSULATED PIERCING CONNECTOR
|
M-IPC3.3
|
|
MODEN 3.4 185/70-185/70MM INSULATED PIERCING CONNECTOR
|
M-IPC3.4
|
Frequently Asked Questions (FAQ)
Q1: Do I need to strip the outer cable insulation when installing a MODDEN connector IPC?
A : No. MODDEN connector IPC are designed with piercing teeth that penetrate through the cable insulation jacket to establish direct electrical contact with internal conductors without requiring insulation stripping.
Q2: How does the shear-head nut work on MODDEN connector IPC?
A : The shear-head nut is pre-calibrated to snap off when reaching the required contact torque (e.g., 25Nm on the M-IPC3.4 model). This ensures optimal electrical contact pressure without over-tightening or damaging cable strands.
Q3: Can MODDEN IPC connectors be used for both Copper (Cu) and Aluminum (Al) conductors?
A : Yes, the internal piercing blades are manufactured with special surface plating suitable for bimetallic jointing of both Copper and Aluminum conductors.
Q4: How do I select between M-IPC3.1, M-IPC3.2, M-IPC3.3, and M-IPC3.4?
A : Selection depends on your main and branch cable cross-sectional area sizes:
-
M-IPC3.1: Main 95/16mm² to Branch 25/10mm².
-
M-IPC3.2: Main 95/70mm² to Branch 95/70mm².
-
M-IPC3.3: Main 185/120mm² to Branch 25/16mm².
-
M-IPC3.4: Main 185/70mm² to Branch 185/70mm².
Q5: Are MODDEN IPC connectors suitable for outdoor, exposed environments?
Yes, the casing is constructed from UV-stabilized, high-impact thermoplastic materials with integrated rubber seals to protect against rain, dust, UV exposure, and weather aging.
