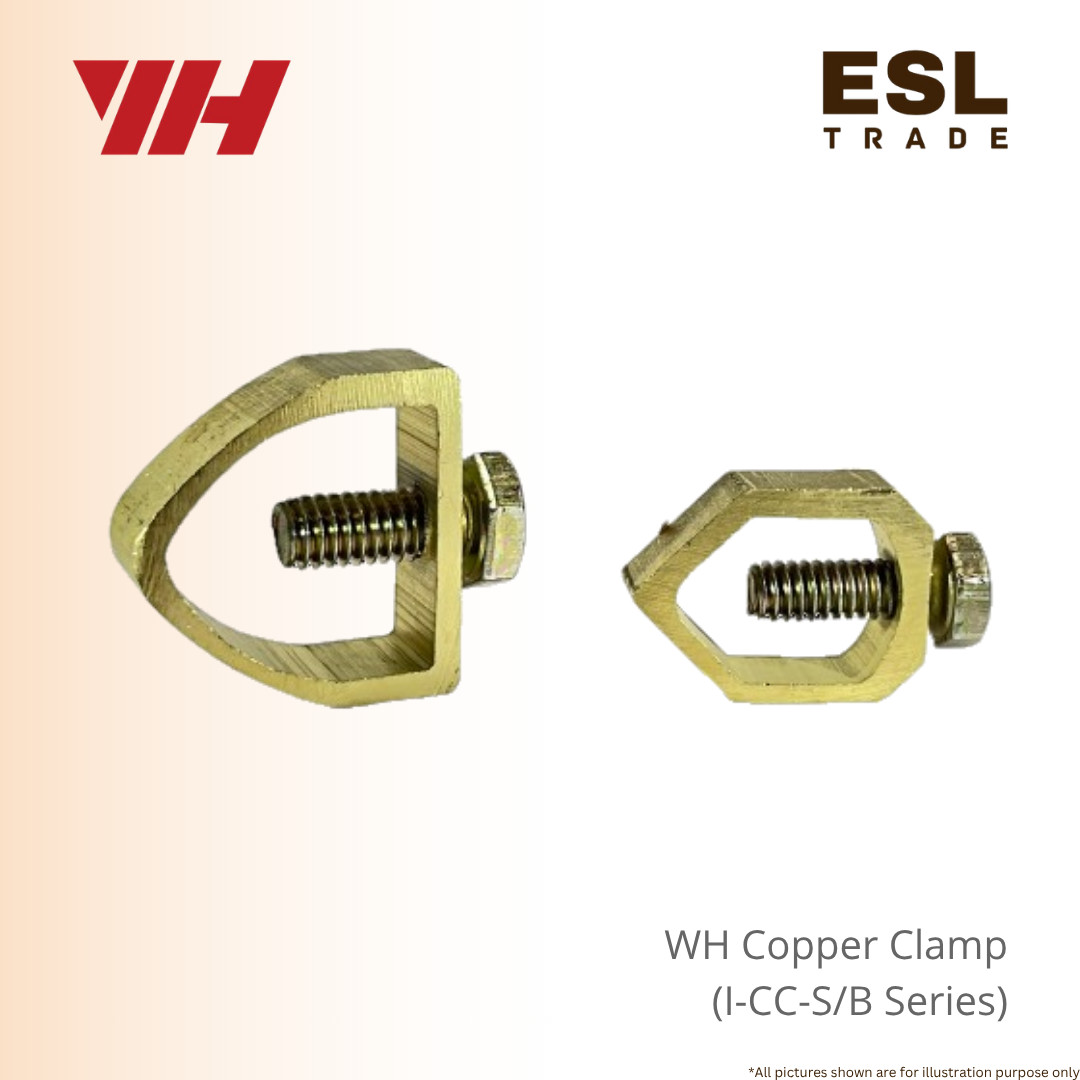

WIN INDIA Copper Clamp Heavy-Duty Brass Earth Rod Clamp Connection ((Small & Big / I-CC-S & I-CC-B) Excellent for Electrical Grounding Fitting for Superior Security
The INDIA Copper Clamp series delivers a robust, corrosion-resistant grounding clamp designed to secure lightning protection tapes, copper conductors, and earth cables directly to copper-bonded earth electrode rods.
Engineered to ensure low-resistance electrical conductivity, these mechanical clamps form a critical junction in earthing networks across residential, commercial, and industrial power distribution installations.
Manufactured from high-grade copper alloy (brass), the INDIA Copper Clamp range offers high mechanical strength and resistance against oxidation and corrosion when buried underground or exposed to weather.
Each clamp features a precision-machined threaded bolt mechanism that applies uniform clamping force to lock earth conductors firmly onto ground rods, ensuring long-term connection integrity and preventing loosening from thermal expansion or mechanical strain.
Key structural and functional features of the INDIA Copper Clamp series include:
-
High-Strength Brass Alloy Body: Heavy-duty metallic body prevents mechanical deformation during installation tightening and withstands high fault currents.
-
Corrosion-Resistant Performance: Suitable for direct-burial grounding pits, damp soil environments, and outdoor lightning protection systems.
-
Precision Hex Fastener Bolt: Heavy bolt provides reliable clamping tension to secure stranded copper wires, earth conductors, or ground rods.
-
Two Standard Sizes: Available in Small (Order Code: I-CC-S) and Big (Order Code: I-CC-B) configurations to match standard earth rod diameters and grounding conductor sizes.
Whether completing earthing pits for main switchboards, sub-station transformer grounding, or lightning protection down-conductor networks, the INDIA Copper Clamp series ensures safe and reliable electrical earthing terminations
Product Details :
| Description | Order Code |
|
INDIA COPPER CLAMP (SMALL)
|
I-CC-S
|
|
INDIA COPPER CLAMP (BIG)
|
I-CC-B
|
Frequently Asked Questions (FAQ)
Q1: What is the main function of an INDIA Copper Clamp?
A : An INDIA Copper Clamp is used to mechanically join and maintain electrical connection between an earth conductor (copper wire or tape) and a copper-bonded earth electrode/rod buried in the ground.
Q2: What is the material used for these clamps, and why is it important?
A : They are manufactured from high-grade brass/copper alloy. Brass provides mechanical strength and high corrosion resistance, ensuring long-term conductivity and preventing galvanic corrosion when connected to copper earth rods underground.
Q3: How do I select between the Small (I-CC-S) and Big (I-CC-B) versions?
-
I-CC-S (Small): Suitable for standard-diameter earth rods and smaller earth conductor wire gauges.
-
I-CC-B (Big): Designed for larger-diameter earth rods or thicker copper conductors and grounding tapes.
Q4: Can these copper clamps be installed directly inside concrete or earth pits?
A : Yes, these heavy-duty brass clamps are designed to withstand direct burial inside soil, earth inspection chambers, or concrete earth pits without deteriorating.
Q5: How should the clamp be tightened during installation?
A : Position the conductor against the earth rod inside the clamp opening and tighten the hex bolt using a standard spanner or wrench until the conductor is firmly clamped against the rod surface.
Avoid over-torquing beyond recommended limits to protect the thread.
