Description

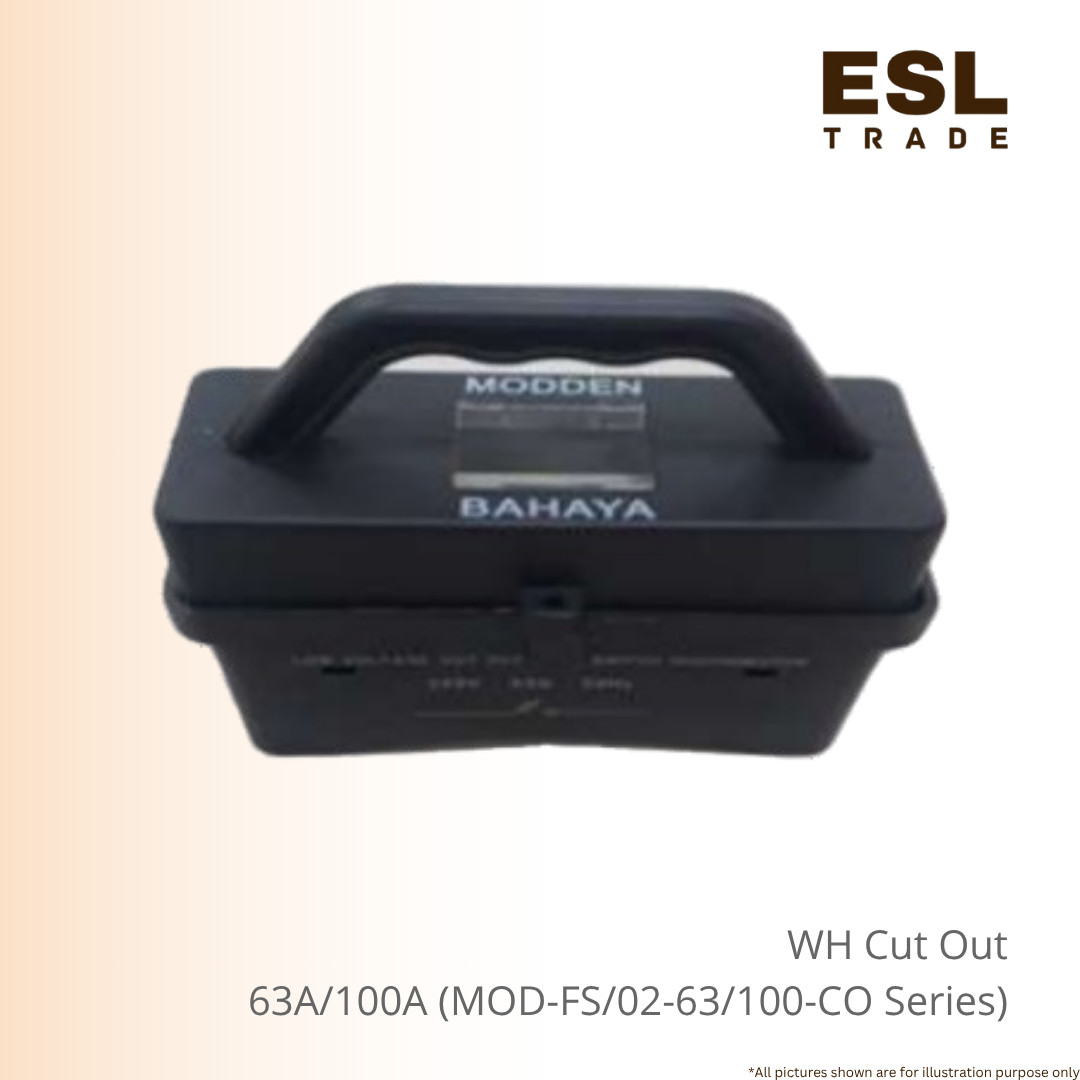

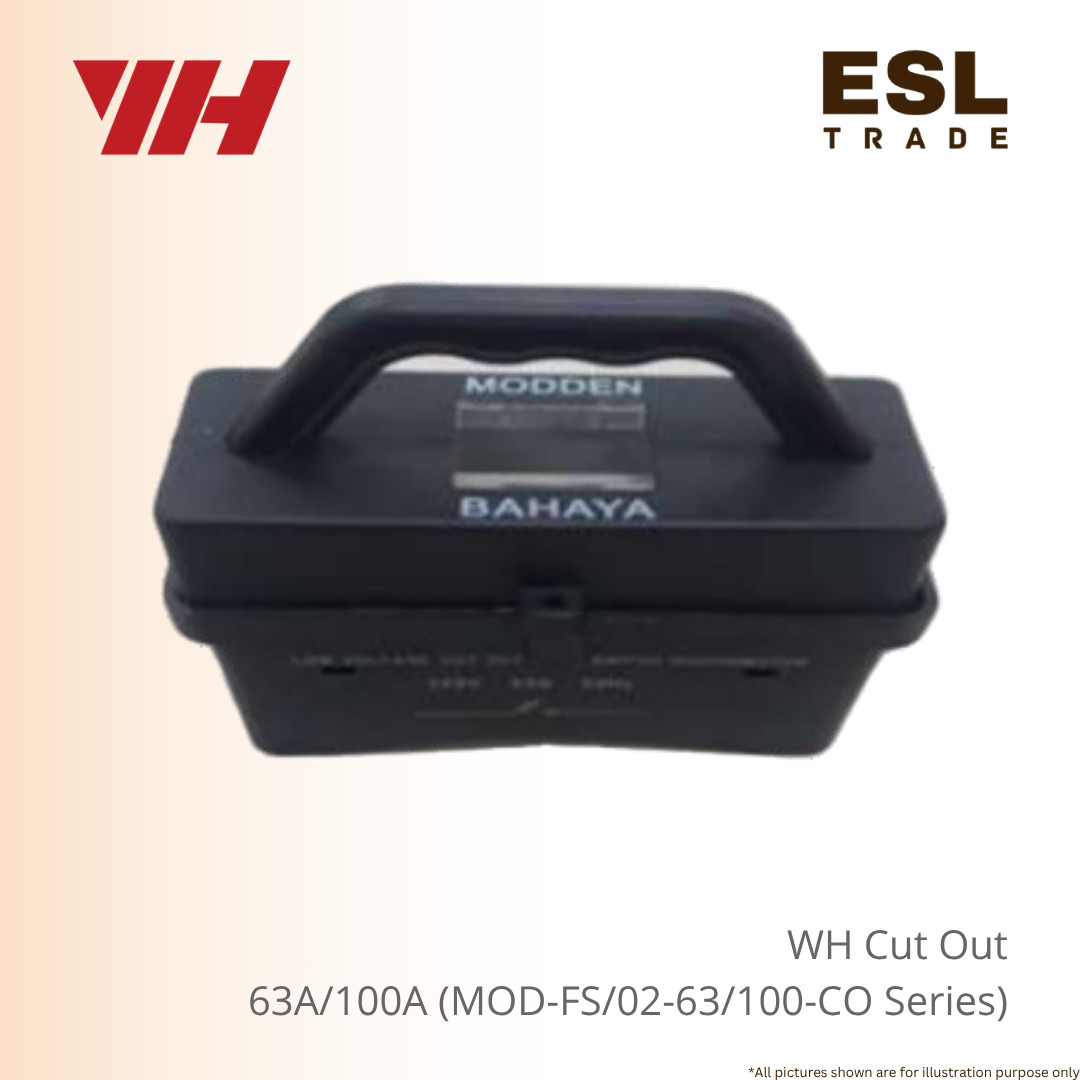

WH MODDEN Overhead Service Cut Out 63A Fuse Unit C/W Blade Fuse Handle Type Excellent Outdoor Electrical Protection for Superior Reliability
The MODDEN Service Cut Out Fuse Unit C/W Blade Fuse (Handle Type) series provides a heavy-duty, weather-resistant outdoor circuit protection solution engineered specifically for single-phase incoming power supply lines, pole-mounted service drops, and low-voltage distribution boards.
Designed as a primary protective isolating point, this cut-out assembly safeguards consumer service cables, kWh meters, and electrical infrastructure against high-current overloads and short-circuit faults.
Manufactured with an insulated, flame-retardant, high-impact composite housing, the MODDEN Cut Out unit features an ergonomic handle-type fuse carrier that houses high-rupturing capacity (HRC) blade fuses.
The external carrier handle allows maintenance personnel and utility operators to safely remove or insert the fuse link without exposing live electrical contacts.
The enclosure includes prominent warning safety markings (“BAHAYA”) and secure terminal access ports to maintain operator protection during routine inspections.
Key structural and functional advantages of the MODDEN Cut Out Fuse Unit series include:
-
Complete Protection Assembly: Supplied complete with matching HRC blade fuse links for instant operational readiness.
-
Safe Ergonomic Handle Carrier: Pull-out handle mechanism enables quick, secure fuse replacement and circuit isolation.
-
Impact-Resistant Insulated Housing: Tough, heat-resistant molding protects internal brass contacts from environmental exposure and mechanical impact.
-
Dual Amperage Options: Available in 63A (Order Code: MOD-FS/02-63-CO) and 100A (Order Code: MOD-FS/02-100-CO) models packaged in standard bulk carton units (60 per carton).
Whether deployed for residential service pole terminations, rural electrification networks, or commercial meter box incoming feeds, the MODDEN Cut Out series delivers reliable overcurrent protection and long-term operating safety.
Product Details :
| Description | Order Code | Packing Unit |
|
MODDEN 63A CUT OUT UNIT C/W BLADE FUSE (HANDLE TYPE)
|
MOD-FS/02-63-CO
|
60 PER CTN
|
|
MODDEN 100A CUT OUT UNIT C/W BLADE FUSE (HANDLE TYPE)
|
MOD-FS/02-100-CO
|
60 PER CTN
|
Frequently Asked Questions (FAQ)
Q1: What is the primary function of a MODDEN Cut Out Unit?
A : The MODDEN Cut Out Unit acts as a primary isolation and overcurrent protection point for incoming power supply lines.
Installed before the kWh electricity meter or main circuit breaker, it houses a high-rupturing capacity fuse to protect cables and meters from short circuits.
Q2: Does the unit come supplied with the blade fuse included?
A : Yes, both models (MOD-FS/02-63-CO and MOD-FS/02-100-CO) come as a complete set equipped with the corresponding blade fuse inside.
Q3: What is the advantage of the handle-type fuse carrier?
A : The ergonomic handle design allows operators and technicians to pull out the fuse carrier safely during servicing or emergency isolation. This eliminates the need for special fuse pullers and minimizes exposure to live internal terminals.
Q4: How do I select between the 63A (60A) and 100A cut-out models?
Selection depends on your service line’s total load capacity:
-
MOD-FS/02-63-CO (60A/63A): Suitable for standard single-phase residential supply feeds.
-
MOD-FS/02-100-CO (100A): Designed for higher-demand commercial or large residential service drops requiring higher amperage capacity.
Q5: How are these units packaged for bulk ordering?
Both models in the WH PRODUCTS CATALOGUE_69 are packed at a standardized bulk quantity of 60 units per carton.
