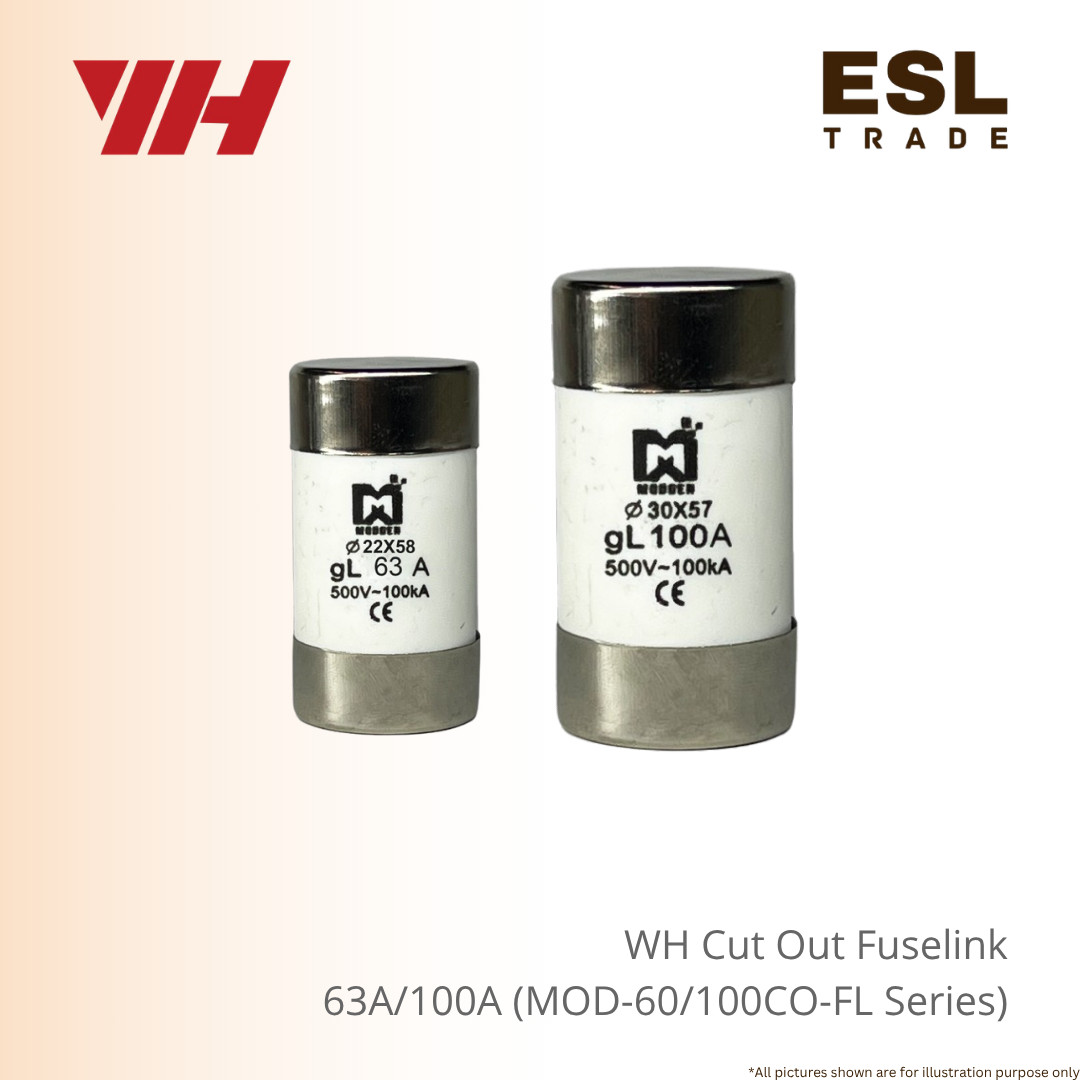

WH MODDEN Cylindrical Cut-Out Fuse Link gL 500V 100kA High Breaking Capacity (22 x 58 mm 60A / 30 x 57mm 100A) Excellent Service Line Protection for Dependable Reliability
The MODDEN Cylindrical Cut-Out Fuse Link series delivers high-breaking-capacity overcurrent and short-circuit protection specifically designed for service cut-out units, distribution boxes, and industrial electrical installations.
Engineered to comply with international low-voltage protection standards (CE marked) with a 500V voltage rating and an ultra-high breaking capacity of 100kA, these ceramic cartridge fuse links safeguard electrical service drops, meters, and sub-circuits against severe electrical fault conditions.
Constructed with high-grade ceramic bodies and silver-plated copper contact caps, MODDEN fuse links feature a class gL (general-purpose full-range breaking) operational characteristic.
This ensures prompt, controlled interruption during dangerous short-circuit faults while maintaining stable thermal endurance under normal continuous operating loads.
The precision dimensions ensure seamless fitment into standard cut-out carriers and fuse holders, preventing arc flashover and overheating at the terminal contacts.
Key structural and functional advantages of the MODDEN Cut-Out Fuse Link series include:
-
High Breaking Capacity (100kA): Interrupter capability rated at 100kA at 500V AC, preventing dangerous arc damage during high-fault currents.
-
Standardized Industrial Dimensions: Offered in 22x58mm (60A) and 30x57mm (100A) physical casing sizes for direct installation into matching cut-out handle carriers.
-
Full-Range gL Characteristic: Designed for general-purpose protection of service cables, distribution lines, and equipment against overloads and short circuits.
-
Durable Ceramic Body Construction: Thermally stable ceramic casing withstands extreme temperature surges without cracking or degrading during fault interruption.
Whether deployed for utility service entrance cut-outs, main distribution panels, or industrial power feeds, MODDEN Fuse Links provide essential overcurrent security and electrical stability.
Product Detail
| Description | Order Code | Packing Unit |
|
MODDEN 60A 22X58 CUT OUT FUSE LINK
|
MOD-60CO-FL
|
500 PER CTN
|
|
MODDEN 100A 30X57 CUT OUT FUSE LINK
|
MOD-100CO-FL
|
250 PER CTN
|
Frequently Asked Questions (FAQ)
Q1: What does “gL” mean on the MODDEN Fuse Link?
A : Class “gL” (or gG) designates a full-range general-purpose fuse link. It protects cables and electrical equipment against both slow overloads and sudden high-current short circuits.
Q2: Can I swap a 22×58 mm (60A) fuse link into a 100A cut-out carrier?
A : No. The physical dimensions differ (22x58mm vs. 30×57 mm) to prevent installing the wrong amperage rating, which ensures mechanical fit and circuit safety.
Q3: What does the 100kA rating signify?
A : The 100kA interrupting capacity indicates that the fuse link can safely interrupt fault currents up to 100,000amperes at 500V without bursting or causing catastrophic damage to the surrounding enclosure.
Q4: Are MODDEN fuse links compatible with MODDEN Cut-Out handle units?
A : Yes, MOD-60CO-FL (22x58mm) and MOD-100CO-FL (30×57 mm) are designed to fit into matching service cut-out units (such as the MODDEN handle-type cut-out carrier series).
Q5: What are the wholesale carton quantities for these fuse links?
-
MOD-60CO-FL (60A): 500pieces per carton.
-
MOD-100CO-FL (100A): 250pieces per carton.
