Description

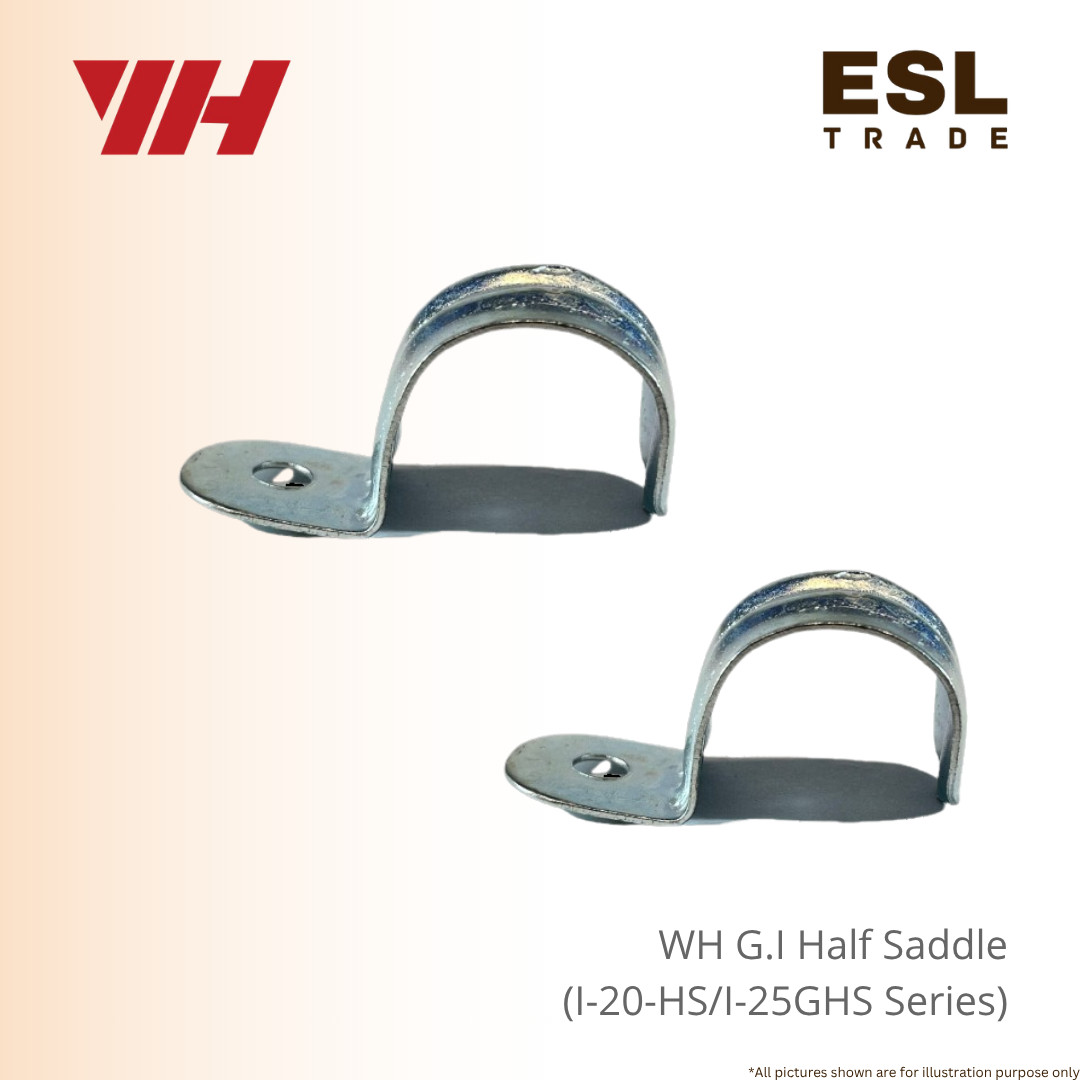

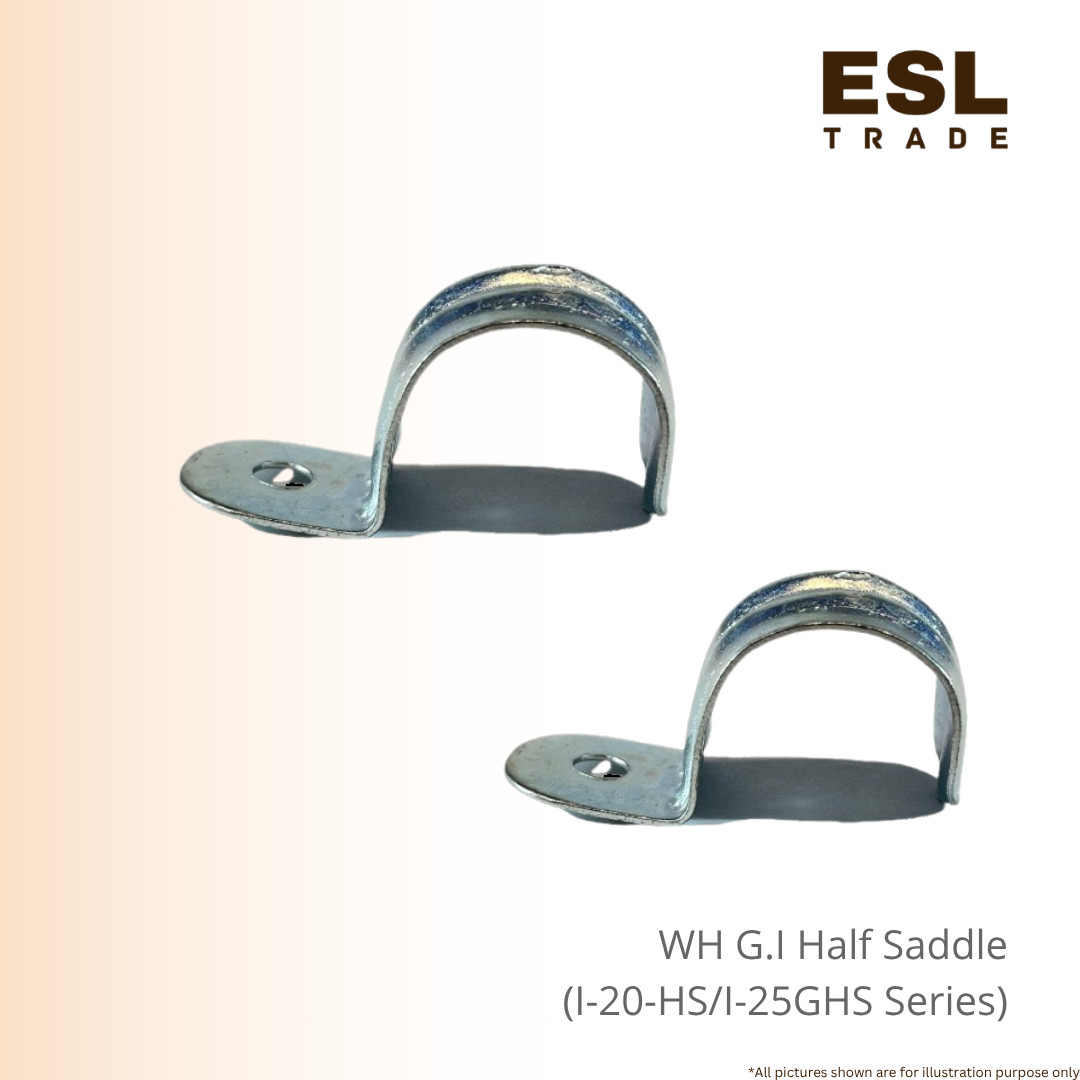

WIN INDIA G.I. Half Saddle Single-Ear Galvanized Conduit Clamp (3/4″ & 1″ / 20mm & 25mm) Excellent for Compact Electrical Conduit Support & Reliability
The INDIA G.I. Half Saddle series provides a space-saving, efficient, and reliable mounting clamp designed for securing galvanized steel and rigid PVC electrical conduits along walls, ceilings, and narrow structural surfaces.
Featuring a single-side mounting tab (single ear) design, half saddles are ideal for tight installation areas or corner runs where standard two-hole full saddles cannot easily fit, allowing fast surface fixing without compromising conduit stability.
Manufactured from high-grade galvanized iron (G.I.), the INDIA Half Saddle series is protected by a heavy zinc surface coating that offers resistance against rust, surface oxidation, and atmospheric corrosion.
This makes the saddles suitable for demanding commercial, industrial, and residential electrical containment applications in indoor plant rooms, basements, and outdoor exposed conduit runs.
Key structural and functional highlights of the INDIA G.I. Half Saddle range include:
-
Single-Ear Compact Design: Built with a single pre-punched fixing hole on one side, allowing installers to position screw fasteners close to walls, internal corners, and tight electrical enclosures.
-
Galvanized Corrosion Resistance: Heavy zinc-coated finish protects the steel body against moisture degradation and environmental weathering.
-
Precision Fitting Sizes: Available in the two standard electrical conduit sizes: 3/4” / 20mm (Order Code: 1-20-HS) and 1” / 25mm (Order Code: 1-25GHS).
-
Firm Mechanical Support: Formed steel contour holds rigid metal and PVC conduit pipes snugly against mounting surfaces to prevent sagging or pipe displacement.
Whether executing compact industrial wiring routes, perimeter fence conduit lines, or space-restricted panel entries, the INDIA G.I. Half Saddle series delivers dependable and space-efficient conduit support.
Product Details :
| Description | Order Code |
|
INDIA 3/4″ GI HALF SADDLE
|
I-20-HS
|
|
INDIA 1″ GI HALF SADDLE
|
I-25GHS
|
Frequently Asked Questions (FAQ)
Q1: What is the main difference between a GI Plain Saddle (Full Saddle) and a GI Half Saddle?
A : A full saddle (plain saddle) has two mounting ears with screw holes on both sides of the pipe arc, requiring clearance on both sides.
A half saddle has a single mounting ear on one side, making it ideal for installing conduits along tight corners, narrow wall ledges, or close to adjoining fixtures.
Q2: What do the order codes 1-20-HS and 1-25GHS indicate?
-
1-20-HS: Specifies the INDIA 3/4” (20mm) GI Half Saddle.
-
1-25GHS: Specifies the INDIA 1” (25mm) GI Half Saddle.
Q3: Are these half saddles resistant to rust and outdoor weathering?
A : Yes, the INDIA GI Half Saddles are constructed from galvanized iron featuring a protective zinc plating, which protects the steel body from rust and corrosion in outdoor or humid indoor environments.
Q4: Can GI half saddles be used for PVC conduit piping?
A : Yes. While engineered primarily for rigid galvanized steel conduits, they can also hold rigid PVC electrical conduits of matching outer diameters (20mm and 25mm).
Q5: How should half saddles be oriented during installation?
A : For horizontal wall runs, it is recommended to mount the half saddle with the mounting tab facing upward or toward the wall structure so that the weight of the conduit rests securely inside the curved arc of the saddle.
