WIN India Brass Earth Tag Cable Gland Earth Continuity Ring (3/4″ to 3″ / 20mm to 75mm) Industrial Earthing Accessory High Reliability Safety

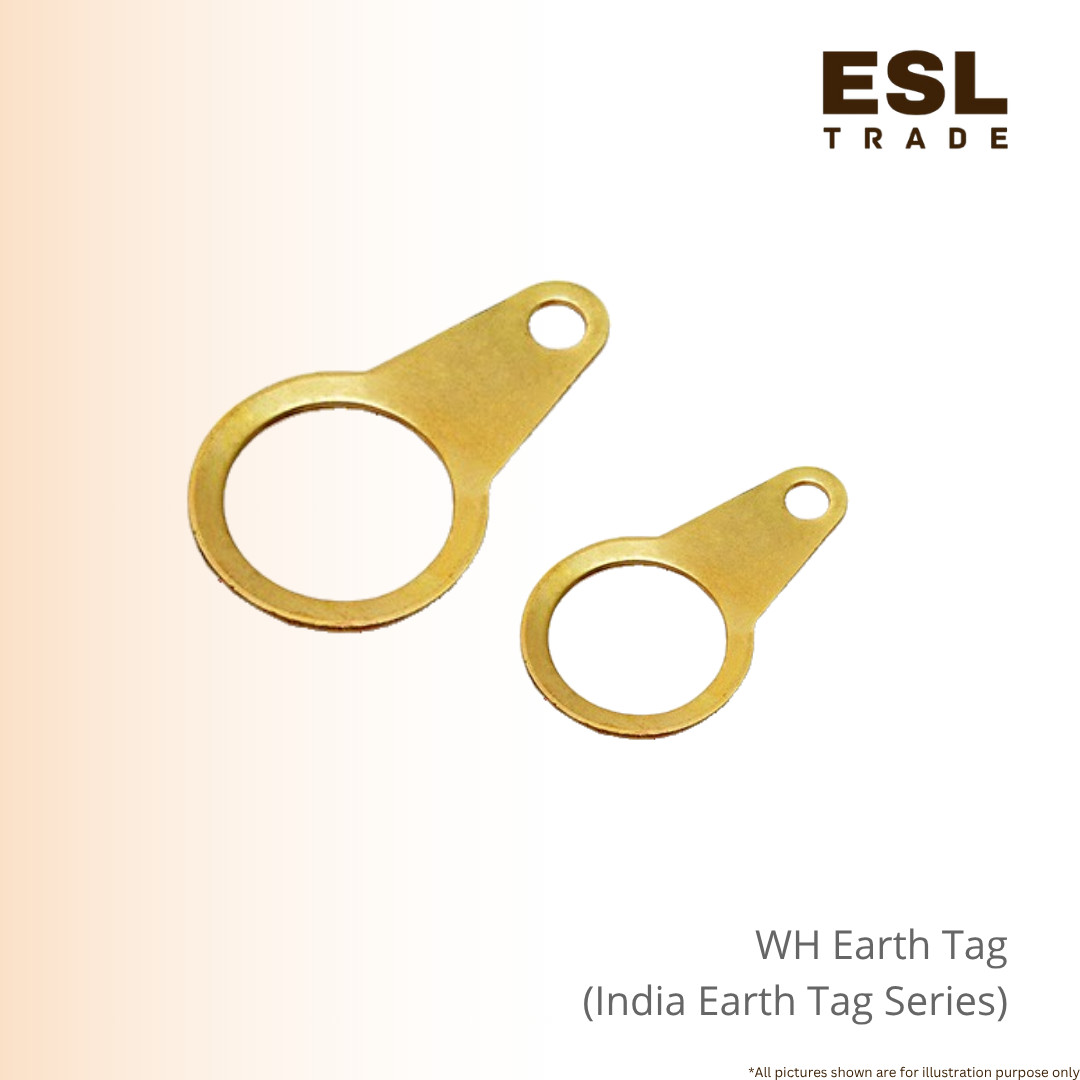

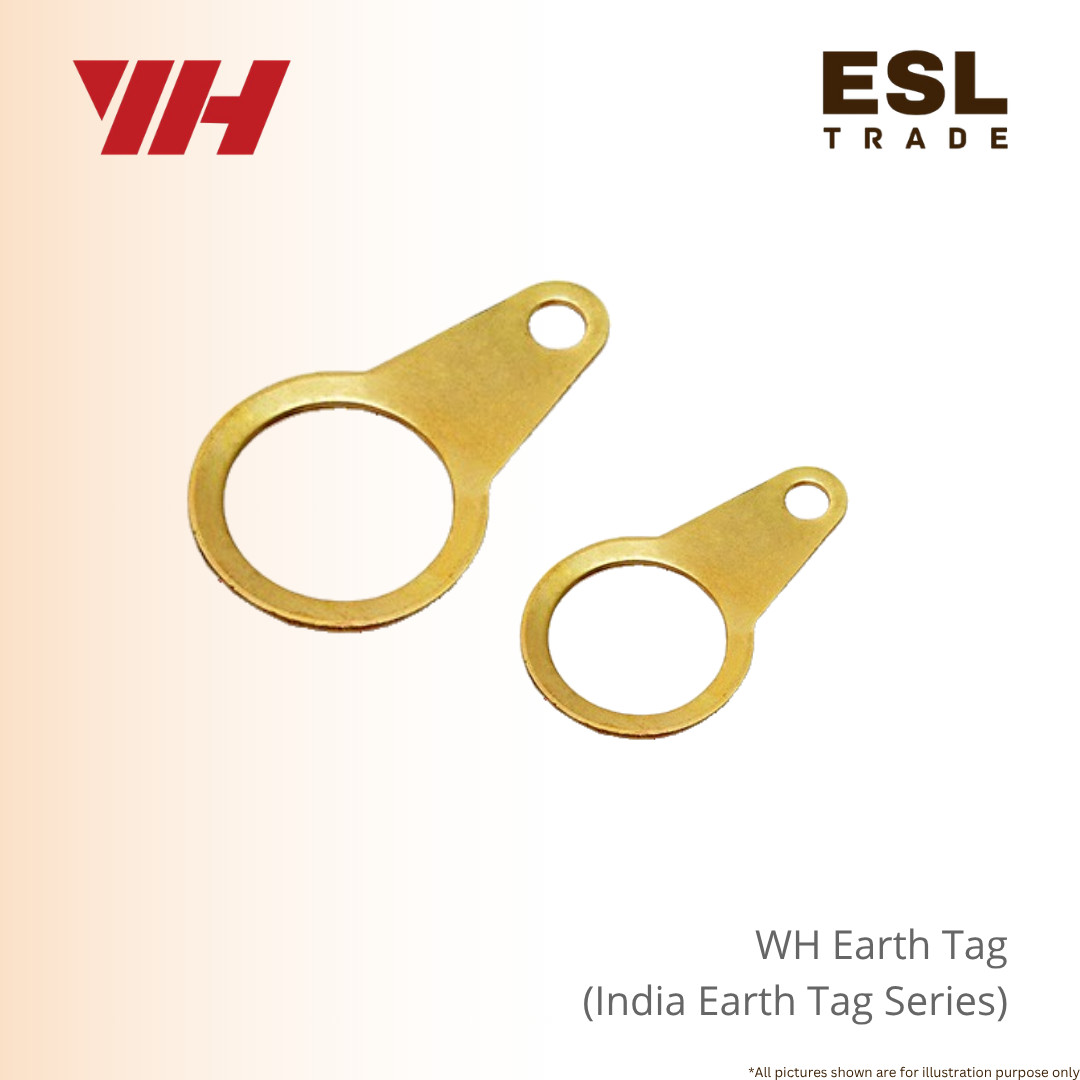

The India Brass Earth Tag series provides an essential earthing connectivity point between electrical cable glands and metal enclosures, switchboards, transformer boxes, or distribution panels.
Installed directly over the entry thread of a cable gland prior to securing it with a locknut, earth tags ensure a low-resistance, continuous fault-current path to ground, safeguarding electrical infrastructure against voltage surges and earth faults.
Manufactured from high-grade solid brass material, the India Earth Tag series delivers exceptional electrical conductivity, mechanical strength, and resistance to corrosion in both indoor and outdoor industrial environments.
Each tag features a precision-punched central hole designed to fit standard gland thread sizes, along with an extended grounding lug equipped with a terminal hole for easy attachment of earth bonding leads, copper wire, or earthing straps.
Key functional and structural advantages of the India Brass Earth Tag line include:
-
Comprehensive Imperial Sizing: Available in seven standard gland thread sizes, including
-
3/4” (1-20ET)
-
1” (1-25ET)
-
1 1/4” (1-32ET)
-
1 1/2” (1-38ET)
-
2” (1-50ET)
-
2 1/2” (1-62ET)
-
3” (1-75ET)
-
-
High Conductivity Brass Construction: Solid brass composition guarantees low contact resistance and structural integrity during high earth fault current events.
-
Universal Gland Compatibility: Designed to seamlessly integrate with standard CW, BW, A2, and E1W armored or unarmored brass cable glands.
Whether installing main switchboards, outdoor junction boxes, industrial power panels, or plant cable entries, the India Brass Earth Tag series delivers dependable earth continuity.
Product Details :
| Description | Order Code |
|
INDIA 3/4″ EARTH TAG
|
I-20ET
|
|
INDIA 1″ EARTH TAG
|
I-25ET
|
|
INDIA 1 1/4″ EARTH TAG
|
I-32ET
|
|
INDIA 1 1/2″ EARTH TAG
|
I-38ET
|
|
INDIA 2″ EARTH TAG
|
I-50ET
|
|
INDIA 2 1/2″ EARTH TAG
|
I-62ET
|
|
INDIA 3″ EARTH TAG
|
I-75ET
|
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of an Earth Tag in cable gland installation?
A : An earth tag is placed between the cable gland body and the entry hole of an electrical box or panel.
It provides an external connection terminal to attach an earth continuity wire or earth strap, ensuring that any fault currents from the cable or gland are safely routed to the earth system.
Q2: How do I select the correct size of India Earth Tag for my cable gland?
A : Select the order code that matches the thread size of your cable gland:
-
1-20ET: For 3/4” (20 mm) cable glands.
-
1-25ET: For 1” (25 mm) cable glands.
-
1-32ET: For 1 1/4” (32 mm) cable glands.
-
1-38ET: For 1 1/2” (38 mm / 40 mm) cable glands.
-
1-50ET: For 2” (50 mm) cable glands.
-
1-62ET: For 2 1/2” (63 mm) cable glands.
-
1-75ET: For 3” (75 mm) cable glands.
Q3: Is the India Earth Tag made of solid brass?
A : Yes, these earth tags are made from solid brass, ensuring low electrical resistance, high mechanical strength, and excellent corrosion resistance in industrial installations.
Q4: Where should the earth tag be positioned during assembly?
A : The earth tag should be fitted onto the entry thread of the cable gland on the outside (or inside) wall of the enclosure box before tightening the locknut, ensuring tight metallic surface contact for continuous electrical earthing.
Q5: How do I connect the grounding wire to the earth tag?
A : The extended lug on the earth tag includes a pre-punched mounting hole. Secure an earth cable lug or crimp terminal to the tag using a bolt, nut, and washer assembly connected to the main earthing bar of the switchboard.
