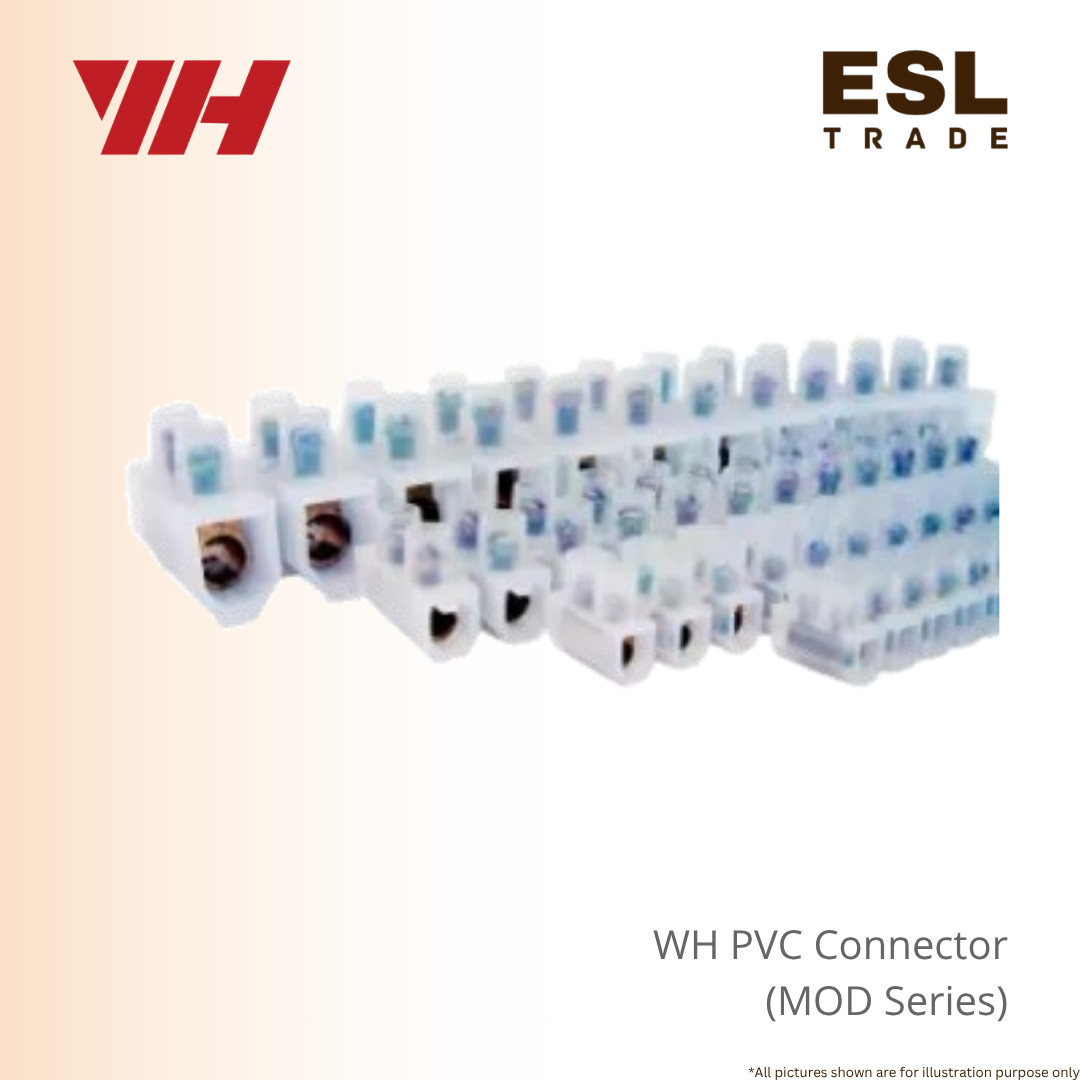

WH MODDEN Flexible PVC Terminal Connector Strip 12-Way Screw Connector Excellent Electrical Joint Block for Outstanding Versatility
The MODDEN Flexible PVC Terminal Connector Strip series provides a reliable, cost-effective wire termination and joining solution engineered for residential, commercial, and industrial electrical wiring applications.
Designed as a multi-pole screw terminal block, this connector strip enables clean, organized, and secure electrical connections between solid or stranded conductors without the need for soldering.
Manufactured with a high-flexibility, heat-resistant PVC insulating body, each strip features robust internal brass inserts and corrosion-resistant steel clamping screws.
The durable PVC housing provides effective dielectric insulation, protecting users and surrounding components against accidental electrical shorts and contact.
The flexible design allows installers to easily trim or cut the strip into custom pole counts (such as 2-way, 3-way, or 6-way segments) using standard utility cutters or pliers to fit specific junction box dimensions.
Key structural and functional advantages of the MODDEN PVC Connector series include:
-
High Dielectric & Thermal Insulation: Durable PVC housing insulates conductive internal terminals while remaining resilient against vibration and physical handling.
-
Easily Customizable Pole Lengths: Supplied in standard multi-way strips that can be cut down to any required number of terminal positions.
-
Reliable Brass Terminal Inserts: High-conductivity brass inserts with deep screw threads ensure high contact clamping force and low electrical resistance.
-
Broad Current Rating Selection: Offered in 6A, 10A, 15A, 20A, 30A, and 60A current capacities (Order Codes: MOD-6C through MOD-60C) to accommodate various wire gauges and circuit loads.
Whether completing lighting fixtures, junction boxes, control panels, or appliance wiring connections, the MODDEN PVC Connector series delivers neat, safe, and dependable wire management.
Product Details :
| Description | Order Code |
|
MODDEN 6A PVC CONNECTOR
|
MOD-6C
|
|
MODDEN 10A PVC CONNECTOR
|
MOD-10C
|
|
MODDEN 15A PVC CONNECTOR
|
MOD-15C
|
|
MODDEN 20A PVC CONNECTOR
|
MOD-20C
|
|
MODDEN 30A PVC CONNECTOR
|
MOD-30C
|
|
MODDEN 60A PVC CONNECTOR
|
MOD-60C
|
Frequently Asked Questions (FAQ)
Q1: How do I select the right MODDEN PVC connector size for my circuit?
A : Select a connector rating equal to or higher than your circuit breaker rating and cable capacity:
-
MOD-6C / MOD-10C (6A–10A): Best for small lighting loops, fans, and electronic drivers.
-
MOD-15C / MOD-20C (15A–20A): Ideal for standard power points, water heaters, and air conditioners.
-
MOD-30C / MOD-60C (30A–60A): Suitable for heavy-duty main power feeds and industrial machinery.
Q2: Can I cut the MODDEN PVC connector strip into smaller pieces?
A : Yes, the flexible PVC body is specifically designed to be easily trimmed using wire cutters or a utility knife. You can cut off 2-pole, 3-pole, or 4-pole segments as needed for tight junction box installations.
Q3: Should I twist my wires before inserting them into the terminal block?
A : For stranded copper cables, gently twisting the conductor strands together ensures no stray wires protrude outside the brass terminal cavity.
For fine multi-strand flexible wires, using insulated end wire ferrules is recommended for optimal contact pressure.
Q4: Can both solid and stranded copper wires be used with these connectors?
A : Yes, the internal brass sleeve and clamping screw design securely lock both solid core and stranded copper wires.
Q5: Are these connectors suitable for outdoor use?
A : MODDEN PVC connector strips provide basic insulation. For outdoor installations, they must be housed inside an IP-rated weatherproof enclosure or junction box to protect the connections from water, dust, and direct UV sunlight.
