Description
WH 13A Fused Plug Top Fused UK Type 3-Pin Excellent for Home & Office Electrical for Wire Plug Top High Reliability Safety
The WH 13A Fused Plug Top (Order Code: WH-13PT) delivers safe, standardized, and dependable power connection for household appliances, office electronics, and commercial equipment.
Certified with official MS SIRIM approval (ST MS SIRIM tested under compliance code WAQA8979978), this 3-pin fused plug top meets strict national safety standards for electrical insulation, current capacity, and mechanical impact resistance.
Engineered with high-grade flame-retardant polycarbonate housing, the WH-13PT features solid brass pins that provide maximum electrical conductivity and smooth insertion into standard 13A wall sockets and trailing socket extensions.
To safeguard connected appliances against electrical overloads, power surges, and short circuits, the plug top includes an internal 13A cartridge fuse mounted securely in a dedicated fuse holder.
Key physical and functional features of the WH 13A Plug Top include:
-

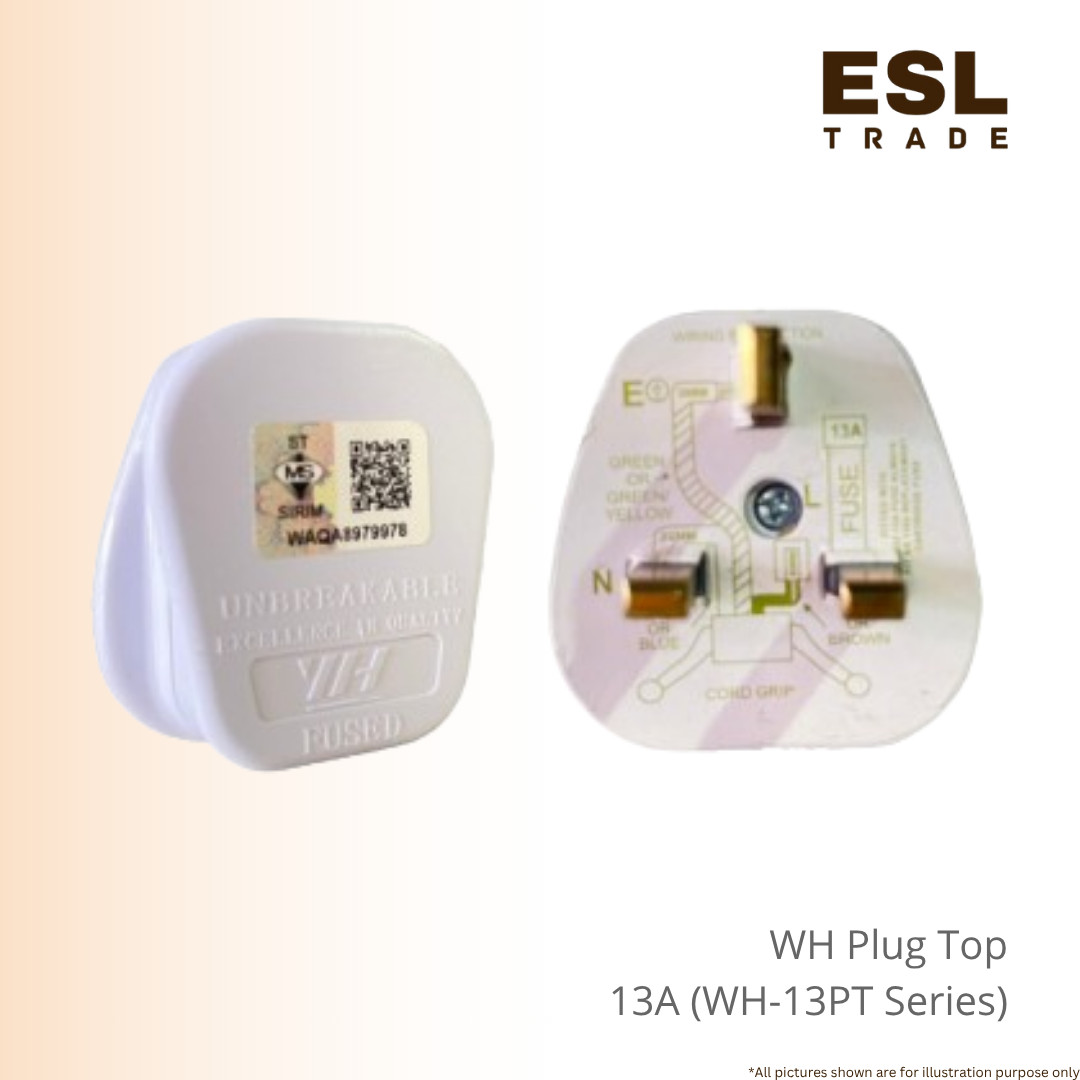

Clear Internal Wiring Markings: Features molded wire position indicators inside the housing (Earth / Green-Yellow, Neutral / Blue, Live / Brown) to ensure fast and correct wiring terminations for technicians and DIY installers.
-
Integrated Cable Grip Strain Relief: A sturdy internal cord clamp prevents mechanical strain on wire terminals when pulling or flexing the supply cord, preventing loose wire hazards over time.
-
SIRIM Safety Certification: Guaranteed compliance with Suruhanjaya Tenaga (ST) and MS safety guidelines ensures thermal endurance and over-current protection during continuous operation.
Whether replacing a damaged plug on home appliances like standing fans, electric kettles, and refrigerators, or wiring custom extension strips for commercial displays, the WH 13A Plug Top delivers safe and lasting performance
| Description | Order Code |
|
WH 13A PLUG TOP C/W SIRIM
|
WH-13PT
|
Frequently Asked Questions (FAQ)
Q1: Is the WH 13A Plug Top officially approved by SIRIM in Malaysia?
A : Yes, the WH-13PT plug top carries official ST (Suruhanjaya Tenaga) and MS SIRIM certification stickers (WAQA8979978), confirming compliance with national safety standards.
Q2: Does the plug top come with a fuse pre-installed?
A : Yes, each WH 13A plug top includes a pre-installed 13A BS 1362 standard cartridge fuse. If the fuse ever blows due to an electrical surge, it can be easily replaced by unscrewing the housing cover.
Q3: How do I identify the correct internal wiring terminals during installation?
A : The internal housing features clearly molded labels for proper wire placement:
-
E (Earth): Top pin terminal — Connect the Green/Yellow wire.
-
N (Neutral): Bottom-left terminal — Connect the Blue wire.
-
L (Live): Bottom-right terminal (connected to fuse) — Connect the Brown wire.
Q4: What size flexible cables can be fitted into the WH-13PT plug top?
A : The integrated cord clamp accepts standard 3-core PVC flexible cables ranging from light-duty 23/0.16 and 40/0076 up to medium/heavy-duty 70/0076 (1.25mm² to 1.5mm²) wires.
Q5: Can I use this plug top for high-power kitchen appliances like induction cookers or ovens?
A : The WH-13PT is rated for up to 13Amperes (approximately 3000Watts at 240V).
For appliances exceeding 13A or requiring continuous high wattage (such as heavy-duty water heaters), a dedicated direct power point or industrial socket connection should be used instead.
