Description

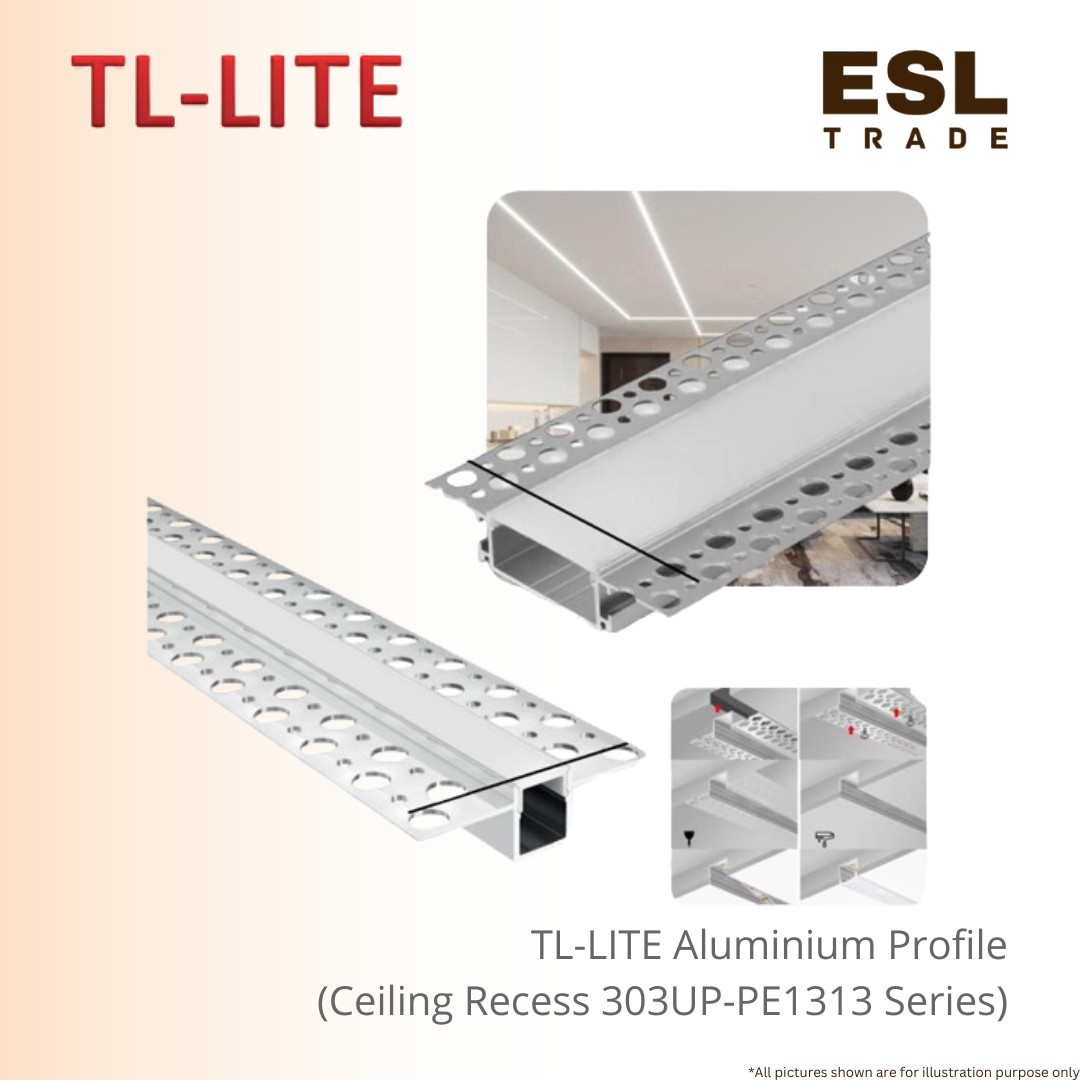

TL-LITE 303UP-PE Trimless Recessed Ceiling Aluminum Profile Plaster-In LED Channel (13mm / 28mm Internal Width) Excellent for Flawless Integration
TL-LITE 303UP-PE Series Trimless Recessed Ceiling Aluminum Profile is a Achieve Ultimate Minimalism with Plaster-In Trimless Linear Lighting
In elite architectural design, the most striking lighting is often the light you can see, coming from a source you cannot.
The TL-LITE 303UP-PE Series Trimless Recessed Ceiling Aluminum Profile is the definitive choice for professionals seeking a fully integrated, “mud-in” linear lighting solution.
Unlike standard recessed profiles that feature a visible metal flange sitting on top of the drywall, this plaster-in channel is designed to be completely skimmed over with plaster during the ceiling installation phase.
The result is a jaw-dropping, borderless ribbon of light that looks entirely flush and native to your ceiling or wall surface.
TL-LITE 303UP-PE Series Trimless Recessed Ceiling Aluminum Profile is a Dual-Model Versatility Tailored for Your Project
The 303UP-PE series is engineered in two specific sizes to give lighting designers maximum control over the scale and impact of their linear lighting tracks:
-
Model 303UP-PE1313: Featuring an ultra-compact body with an internal profile structure of 13mm x 13mm and a total wing-to-wing plastering width of 53mm. It is perfect for tight spaces or delicate, razor-thin lines of accent lighting.
-
Model 303UP-PE2313: Built for broader, more prominent structural lighting elements, this model boasts a robust internal slot size of 13.8mm x 28mm with a comprehensive plastering footprint width of 66 mm.
Both models feature perforated side wings meticulously designed to grab onto screws and structural joint compound plaster (2mm thickness recommended), forming an unbreakable bond with the drywall that eliminates cracking over time.
TL-LITE 303UP-PE Series Trimless Recessed Ceiling Aluminum Profile is a Heavy-Duty Structural Build & Advanced Thermal Control
High-performance LED tape lights generate substantial heat which, if trapped, degrades the brightness and lifetime of the diodes.
Crafted with premium-grade aluminum at a heavy-duty thickness of 0.95 mm, the TL-LITE 303UP-PE acts as a heavy-duty thermal heat sink.
It draws heat rapidly away from your high-density LED strips, guaranteeing long-lasting performance and consistent light output.
The visible metal components boast a sophisticated ALU + Silky Silver Finish, adding a clean, modern touch inside the channel itself.
To finish the look, the channels are coupled with premium Polycarbonate (PC) diffuser covers (0.75 mm thick for the PE1313; 0.85 mm thick for the PE2313).
These high-efficiency covers break up raw LED hot spots into a continuous, perfectly uniform beam of glare-free light, offering optimum eye comfort and luxury appeal.
TL-LITE 303UP-PE Series Trimless Recessed Ceiling Aluminum Profile is a Complete Professional-Grade Accessories for Flawless Mounting
Executing a trimless installation requires precise alignment. Every meter of the TL-LITE 303UP-PE series is supplied with a comprehensive mounting package, containing 2 pieces of heavy-duty wall clips and 2 pieces of dedicated end caps.
The end caps ensure that plaster, dust, and moisture stay completely out of the internal channel during the construction phase while preventing light leakage at the termination lines of your tracks.
TL-LITE 303UP-PE Series Trimless Recessed Ceiling Aluminum Profile is a Ideal Applications
The plaster-in layout is exceptionally favored for high-end environments, including:
-
Luxury Residential Plaster Ceilings: Form continuous linear tracks transitioning from a vertical wall right up into the horizontal ceiling.
-
Corporate Office Foyers & Lobbies: Guide guests with sharp, geometric light corridors that reflect corporate modernism.
-
High-End Galleries & Retail Showrooms: Introduce structural accent lines that emphasize pristine architectural forms without distracting fixtures.
Product Details
| Specification Parameter | Model: 303UP-PE1313 Details | Model: 303UP-PE2313 Details |
| Brand | TL-LITE™ (TL Electric & Lighting) | TL-LITE™ (TL Electric & Lighting) |
| Product Category | Ceiling Recess (Trimless/Plaster-In) | Ceiling Recess (Trimless/Plaster-In) |
| Installation Method | Screws + 2 mm Plaster Skimming | Screws + 2mm Plaster Skimming |
| Profile Core Dimensions | 13mm x 13mm x 53 mm | 13.8mm x 28 mm x 66 mm |
| Thickness of Aluminum (ALU) | 0.95 mm | 0.95 mm |
| Thickness of PC Diffuser | 0.75 mm | 0.85 mm |
| Surface Finish | ALU + Silky Silver Finish | ALU + Silky Silver Finish |
| Included Accessories | Wall Clip (2 pcs/m) & End Caps (2 pcs/m) | Wall Clip (2pcs/m) & End Caps (2 pcs/m) |
| Best Used For | Borderless thin accent lines, minimalist ceilings | Broad linear primary accents, seamless light grids |
