TL-LITE WAP3020 Ceiling Recess Aluminum Profile LED Linear Channel (43mm x 20mmx 30mm) Excellent for Flawless Integration

Description

TL-LITE WAP3020 Ceiling Recess Aluminum Profile LED Linear Channel (43mm x 20mmx 30mm) Excellent for Flawless Integration

TL-LITE WAP3020 Ceiling Recess Aluminum Profile is a Seamless Architectural Illumination for Sophisticated Interiors

Modern interior design thrives on clean lines, uncluttered surfaces, and integrated features that create an atmosphere of expansive elegance.

The TL-LITE WAP3020 Ceiling Recess Aluminum Profile is crafted precisely to embody this ethos.

Engineered to be embedded seamlessly into ceiling boards and drywall surfaces, this high-quality recessed linear channel bridges the gap between raw light output and clean structural integration.

Whether you are illuminating a minimalist residential kitchen, a busy corporate corridor, or a high-end luxury showroom, this aluminum extrusion helps you sculpt spaces with pure, borderless ribbons of light.

TL-LITE WAP3020 Ceiling Recess Aluminum Profile is a Engineered for Precision, Durability, and Longevity

At the heart of any high-performance lighting setup is efficient thermal management. LED strip lights produce a substantial amount of heat, which can quickly degrade light output and shorten component lifespans if left unchecked.

The WAP3020 model solves this problem with a robust, structural-grade aluminum body that features an optimal thickness of 0.85mm.

This substantial frame acts as a heavy-duty, highly effective heat sink that continuously draws warmth away from high-density LED strips, protecting your lighting investment and ensuring consistent brightness for years to come.

The visible metal flange sections are enhanced with a beautiful ALU + Silky Silver Finish.

This subtle, premium anodized finish gives the track an elegant, professional appearance that coordinates perfectly with modern architectural hardware, high-end ceiling plaster, and various paint colors.

TL-LITE WAP3020 Ceiling Recess Aluminum Profile is a Perfect Glare-Free Diffusion

To match the heavy-duty aluminum structure, the profile is paired with an premium Polycarbonate (PC) diffuser cover featuring a specialized thickness of 0.95mm.

The frosted cover is designed to eliminate harsh point-light glare and blend individual LED diodes into a smooth, continuous beam of light.

This advanced optical diffusion ensures that your lighting looks like a solid neon bar rather than a jagged line of separate dots, providing unparalleled visual comfort and a premium finish.

TL-LITE WAP3020 Ceiling Recess Aluminum Profile is a Optimized Dimensions & Hassle-Free Installation

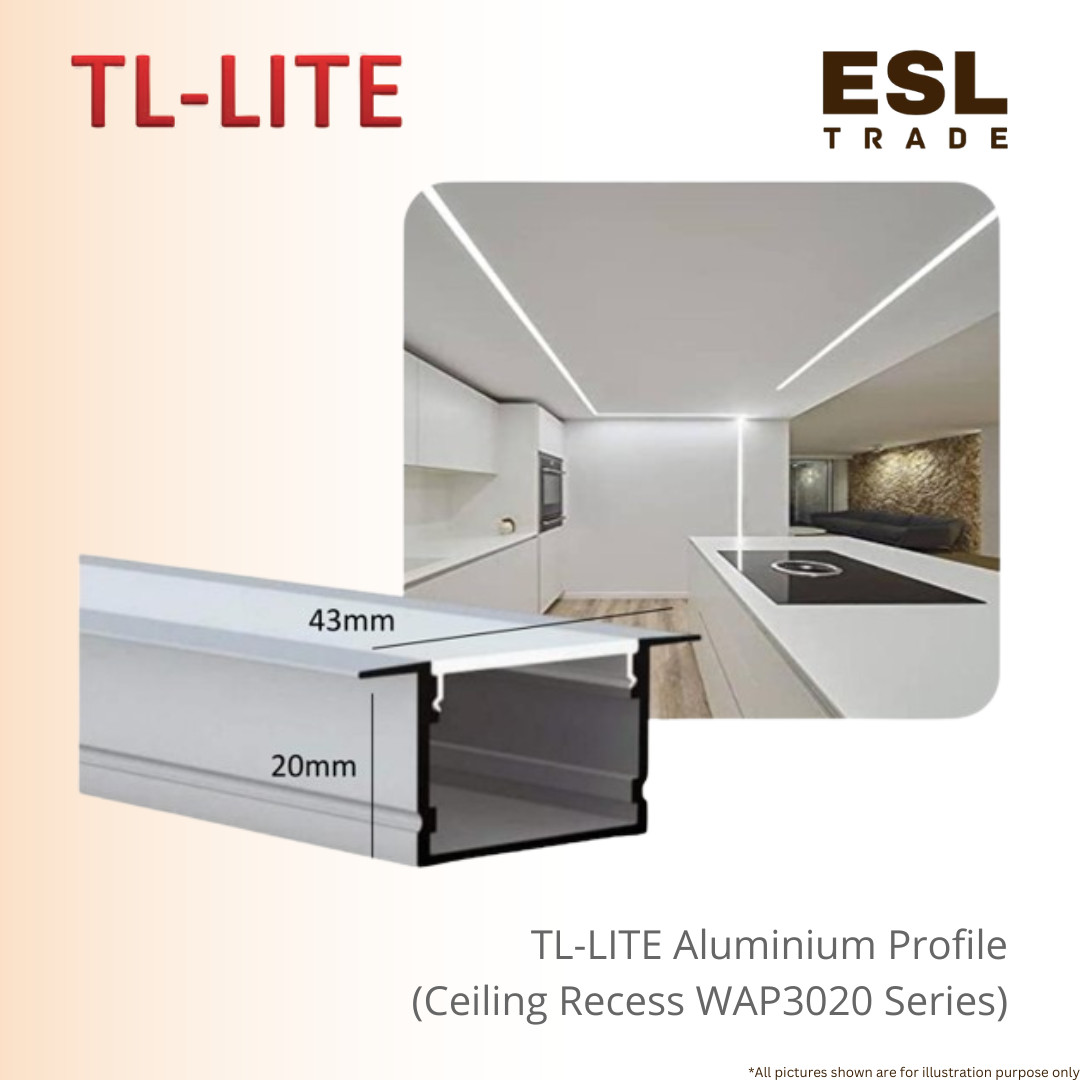

The profile is built with precise architectural dimensions: a 43mm overall outer flange width to cover rough ceiling cuts, a 20mm deep recess depth to ensure deep diffusion, and a substantial 30mm base dimension.

This generous internal spacing allows you to easily install high-output LED tapes or even run multiple side-by-side strips for extra bright primary ambient lighting.

To eliminate hidden costs and ensure a rapid, headache-free setup on the job site, each meter of the TL-LITE WAP3020 comes complete with dedicated hardware:

• 2 pieces of wall clips per meter for anchoring the profile into place, and
• 2 pieces of matching end caps per meter to fully enclose the track, seal against dust, and prevent unsightly light leakage behind the ceiling structure.

Versatile Applications

The recessed design of the WAP3020 makes it exceptionally suited for demanding layouts:

• Modern Kitchens & Islands: Create long, parallel tracks of light embedded directly over counter areas for clean, glare-free task lighting.

• Corridor & Foyer Lighting: Lead guests through high-end corporate or residential hallways with geometric linear pathways.

• Luxury Commercial Spaces: Frame retail display rooms, lobbies, and workspaces with premium linear borders that emphasize structural symmetry.
