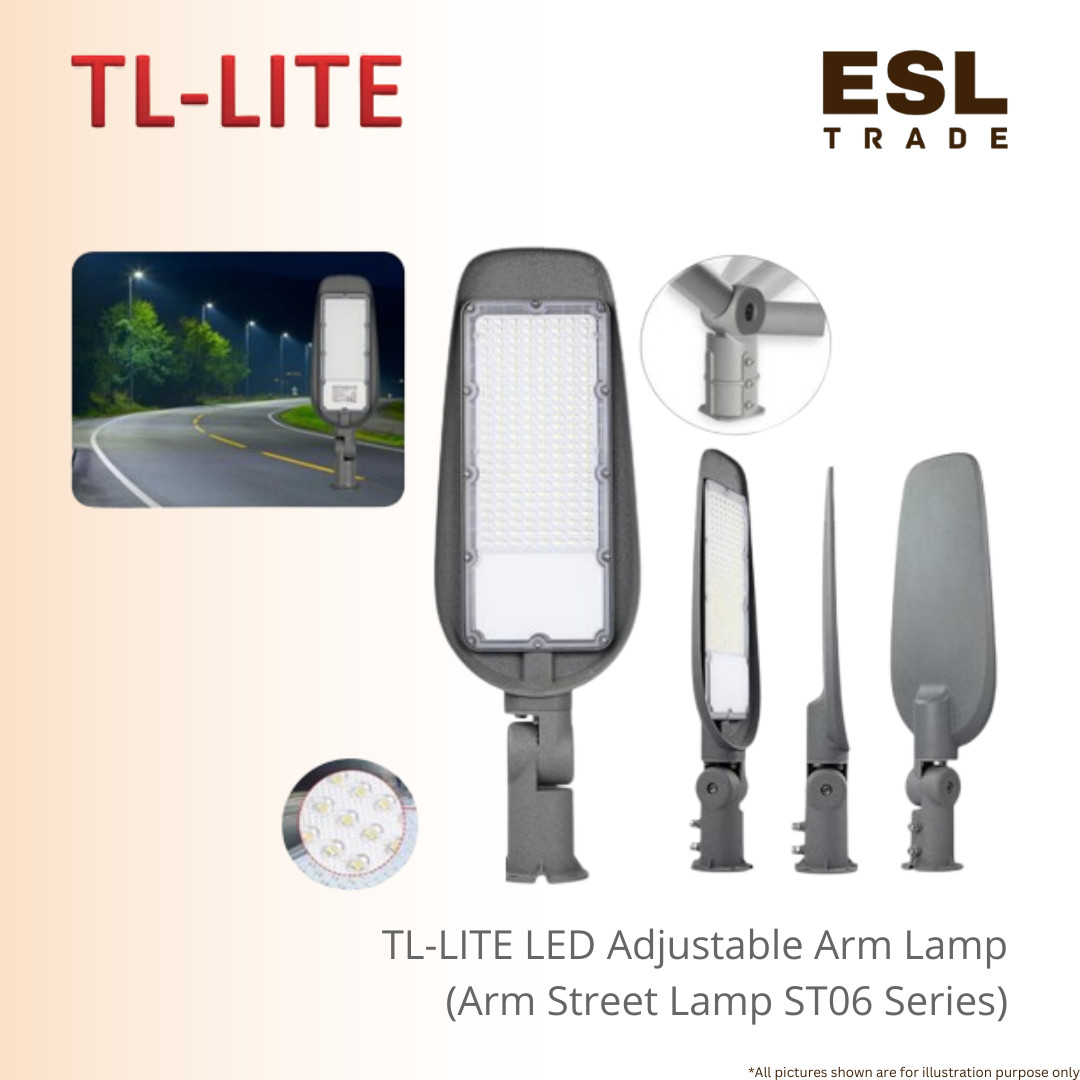

TL-LITE ST06 Adjustable Arm LED Street Lamp IP66 Waterproof Excellent for Outdoor Roadway Light (100W – 200W) Ultimate Reliability

Description

TL-LITE ST06 Adjustable Arm LED Street Lamp IP66 Waterproof Excellent for Outdoor Roadway Light (100W – 200W) Ultimate Reliability

TL-LITE ST06 Adjustable Arm Street Lamp is a Revolutionary Flexibility in Modern Roadway and Area Lighting

Ensuring safety, visibility, and wide-area coverage on public roads, industrial zones, and private pathways demands an adaptable outdoor lighting solution.

The TL-LITE ST06 Adjustable Arm Street Lamp is engineered to redefine outdoor area illumination with its innovative, highly versatile design.

The defining feature of the ST06 series is its integrated 180° adjustable mounting arm.

This critical mechanical feature allows contractors and facility managers to precisely tilt the lamp head to the perfect angle, compensating for varied pole angles, uneven terrain, or unique architectural layouts.

By eliminating fixed-angle limitations, the ST06 guarantees that light is projected exactly where it is needed most, maximizing efficiency and minimizing dark spots.

TL-LITE ST06 Adjustable Arm Street Lamp is a High-Performance SMD 3030 Chips and Advanced Optical Lenses

Designed for heavy-duty commercial, industrial, and municipal applications, the ST06 is equipped with premium SMD 3030 LED Chips.

Arranged in high-density matrices ranging from 120 to 288 pieces, these LEDs generate high-intensity brightness with a luminous efficacy of 90–110 LM/W.

To optimize this intense light output, the lamp integrates a specialized PC Screen (Optical Lens).

This state-of-the-art optical array stretches and directs light across an asymmetrical 75° x 135° beam angle.

This distribution is specifically configured for long-distance and wide-area applications.

It throws a broad rectangular footprint along roadways and sidewalks, which allows for greater distance between lampposts and significantly lowers total project setup and energy costs.

TL-LITE ST06 Adjustable Arm Street Lamp is a Industrial-Grade Durability and Weatherproofing

Outdoor infrastructure must withstand continuous exposure to extreme elements, and the ST06 is built to survive.

It features a heavy-duty, corrosion-resistant Aluminum Body combined with a durable PC screen.

Certified with an IP66 Waterproof rating, the entire light casing is completely dust-tight and sealed against powerful jets of water.

This advanced protection ensures the internal electronics remain completely dry, facilitating a long, maintenance-free lifespan of over 30,000 hours.

Electrically, the ST06 is built for global grid compatibility, operating smoothly on a wide input voltage range of AC85-265V.

With a high Power Factor of PF0.9, it maintains exceptional energy efficiency, stabilizes the local electrical system, and prevents unnecessary power losses.

TL-LITE ST06 Adjustable Arm Street Lamp is a Three Power Output Variants with Multi-CCT Options

To suit diverse mounting heights and lighting layouts, the ST06 is available in three distinct power sizes:

• 100W (120 LEDs): Ideal for low-altitude park paths, private driveways, and townhouse perimeters.

• 150W (216 LEDs): The standard choice for commercial parking lots, secondary municipal roads, and corporate campuses.

• 200W (288 LEDs): The heavy-duty option designed for expansive industrial yards, multi-lane highways, and major public plazas.

All three power variants support three color temperature settings (CCT):

• crisp 6500K (Daylight) for high-visibility task and security zones,
• balanced 4000K (Cool White) for general outdoor areas, and
• warm 3000K (Warm White) for mist-prone zones or residential perimeters.
