Description

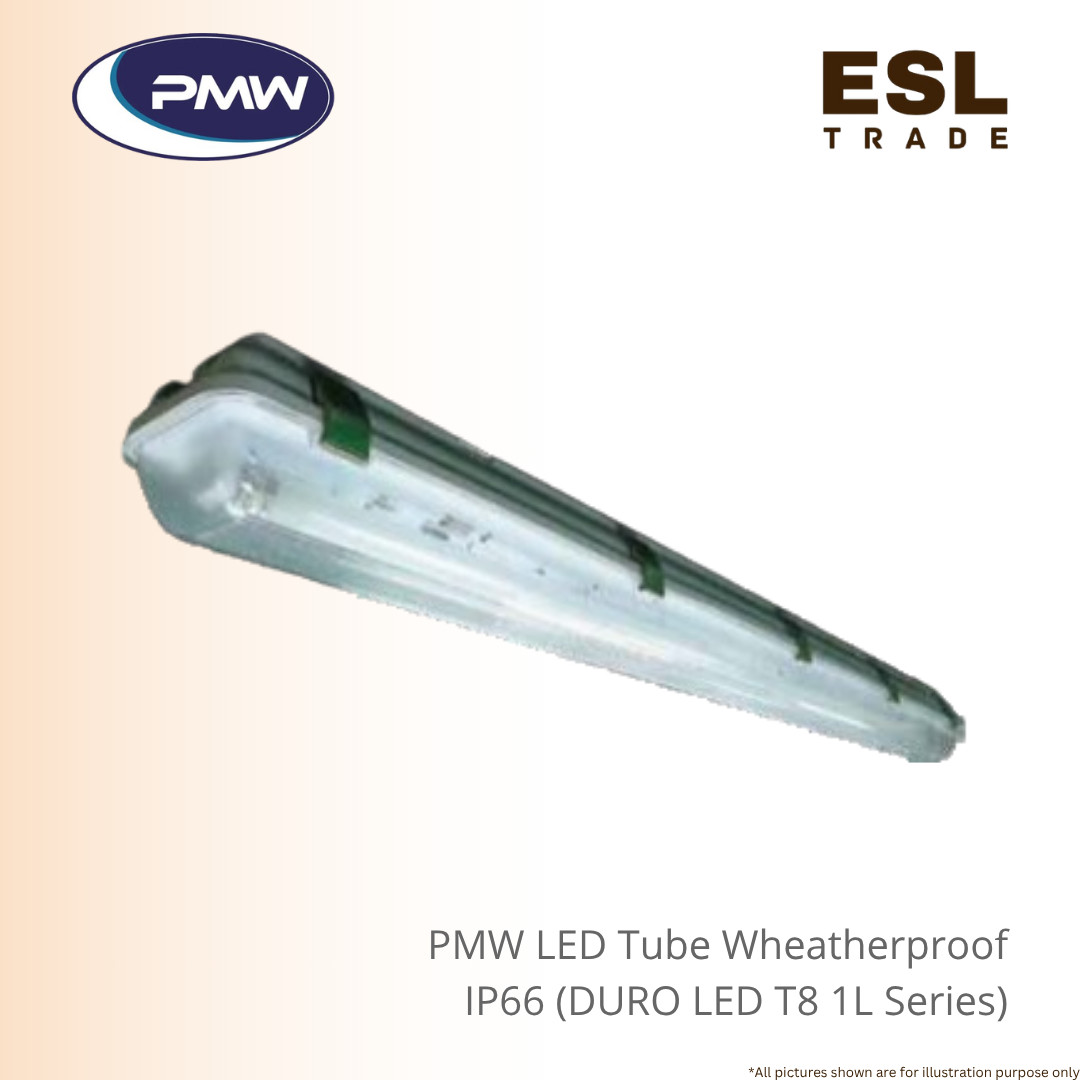

PMW DURO T8 1L Series IP66 Polycarbonate Weatherproof Light Fitting Excellent for Commercial Outdoor Durable
The PMW DURO T8 1L Series Weatherproof Light Fitting is an IP66-rated linear luminaire designed for demanding indoor and outdoor commercial environments.
Constructed with a resilient polycarbonate body and paired with a clear polycarbonate diffuser, this fitting offers impact protection and optical clarity for consistent, uniform illumination.
Engineered for challenging environments, the fixture features an IP66 ingress protection rating, safeguarding internal components against heavy water jets, dust ingress, and moisture exposure.
It comes equipped with stainless steel fixing clips as standard, providing secure closure and maintaining gasket pressure across long operational lifespans.
Designed to house a single direct-wire T8 LED tube, the DURO T8 1L series gives system designers and facility managers full flexibility to choose preferred T8 LED tube specifications for color temperature, lumen output, and wattage consumption.
The DURO T8 1L model (DU140T8) features a 1270mm (4ft) length profile with a 93mm housing width, 100mm height, 905mm mounting fixing distance (LF), and a net weight of 1.46kg.
Its slim single-tube design allows clean mounting in space-constrained corridors, car parks, walkways, and industrial service areas.
Engineered for surface or suspended installation, the PMW DURO T8 1L Series is an ideal solution for automotive bays, covered walkways, basement car parks, utility corridors, and outdoor transition zones.
Product Detail PMW DURO T8 1L
| Product Code | Model Code | Description | Tube Capacity | Length L (mm) | Width W (mm) | Height H (mm) | Fixing Distance LF (mm) | Weight (kg) | IP Rating | Housing Material | Diffuser Material | Clips Material | Applications |
| 01.DU140T8.00 | DU140T8 | DURO LED T8 1L SERIES WEATHERPROOF FITTING | 1 TUBE (4ft) | 1270 mm | 93 mm | 100 mm | 905 mm | 1.46 kg | IP66 | Polycarbonate | Clear Polycarbonate | Stainless Steel | Indoor, Corridors,
Automotive, Car Parks, Walkways |
Note: Specifications and dimensions are subject to change without notice. Wattage and lumen outputs depend on the selected T8 LED tube
Frequently Asked Questions (FAQ)
Q: Are LED tubes supplied with the DURO T8 1L weatherproof fitting?
A: No, the unit is supplied as a weatherproof housing (fitting only) designed to accept standard T8 LED tubes. Lumens and power consumption depend on the chosen T8 LED lamp.
Q: What is the IP rating and what does it mean for outdoor use?
A: The fitting carries an IP66 rating, meaning it is dust-tight and protected against powerful water jets. This makes it suitable for exposed indoor and outdoor areas like car parks, walkways, and wash bays.
Q: What material are the latching clips made of?
A: All fixing clips on the DURO T8 1L series are made of stainless steel as standard, ensuring resistance to corrosion and secure seal retention.
Q: What are the main construction materials used in this fixture?
A: Both the housing body and the transparent light diffuser are constructed from high-grade polycarbonate for durability and impact resistance.
