Description
PMW GF LINEAR SERIES Solar Linear Light Microwave Sensor IP65 IK10 Excellent for Outdoor Bus Stop & Car Park
The PMW GF LINEAR SERIES Solar Linear Light delivers continuous, off-grid illumination engineered for demanding outdoor commercial and public environments, including bus stops, outdoor car parks, walkways, and perimeter pathways.
The PMW GF LINEAR SERIES Solar Linear Light is constructed with a high-impact polycarbonate (PC) housing, the fixture features an IP65 ingress protection rating against dust and water intrusion, an IK10 impact resistance rating, and a wide operating temperature range from -25°C to +65°C.
The PMW GF LINEAR SERIES Solar Linear Light is designed for long-term durability, the solid-state LED assembly delivers an expected service lifespan of up to 50,000 hours.

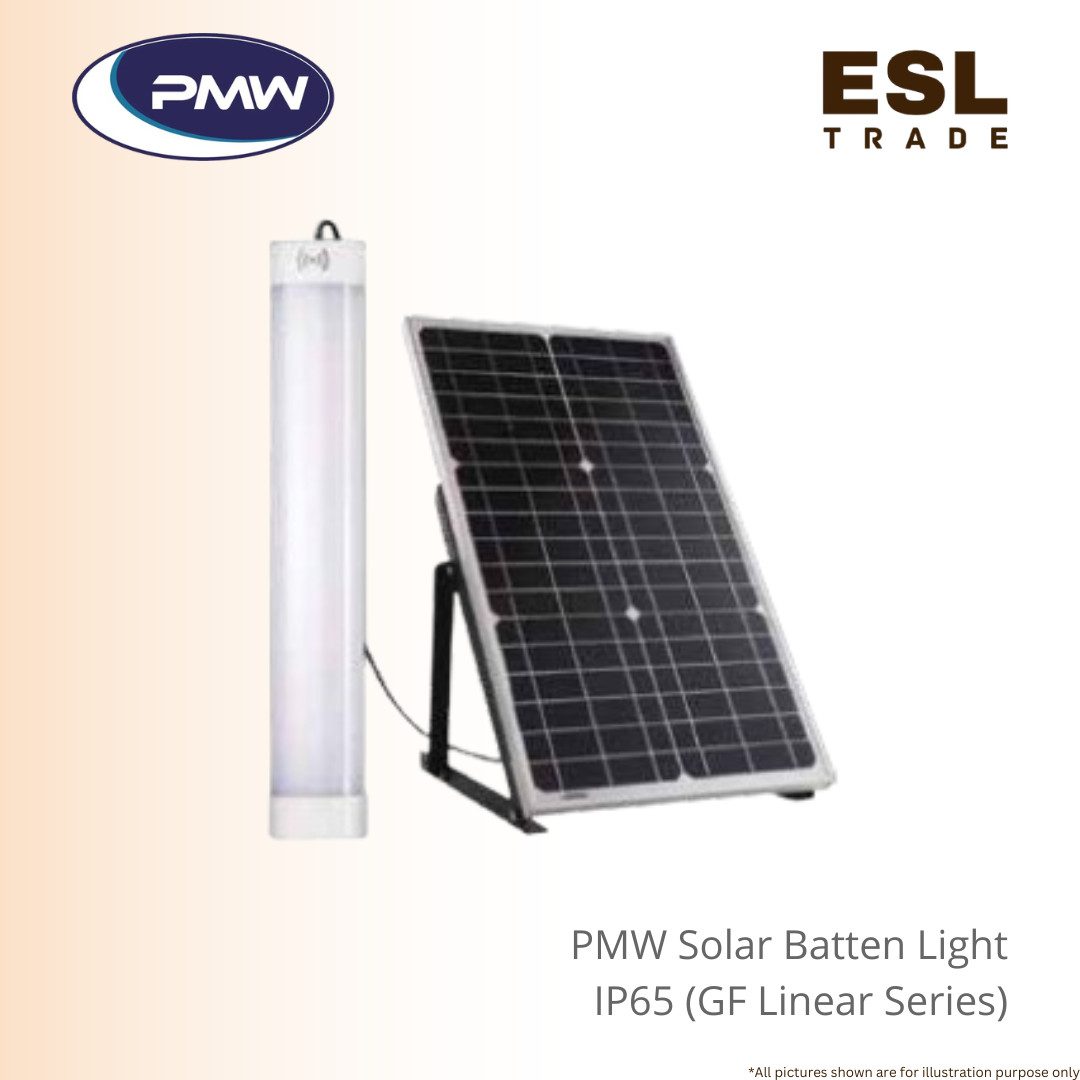

The system pairs a slim linear lamp fixture (600 x 60 x 45mm) with a dedicated high-efficiency monocrystalline PV panel and an integrated Lithium battery management system.
Available in three performance configurations
- 15W (1,950 lm with 60W-18V panel / 12.8V 15AH battery),
- 20W (2,600 lm with 70W-18V panel / 12.8V 18AH battery), and
- 30W (3,900 lm with 80W-18V panel / 12.8V 24AH battery) the luminaire maintains a luminous efficacy of 130 lm/W across a tunable color temperature spectrum ranging from 2700K warm white to 6500K daylight.
To maximize energy conservation, each unit features an integrated microwave motion sensor that manages output based on surrounding activity.
This PMW GF LINEAR SERIES Solar Linear Light intelligent power scheme ensures an operational working time of up to 12 hours on a full charge.
Tailored for pole or structure mounting at heights between 3 and 5 meters, the total package weighs 17.96 kg and offers zero-electricity, low-maintenance outdoor illumination
Product Detail
PMW GF LINEAR SERIES
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | Lithium Battery | CCT Range (K) | Mounting Height | Lamp Size LxWxH (mm) | Total Weight (kg) | IP / IK Rating | Working Temp & Lifespan | Working Time (w/ Sensor) |
| 01.GFL015.00 | GF-015 | 15W | 1,950 lm | 60W – 18V | 12.8V 15AH | 2700K – 6500K | 3 – 5m | 600 x 60 x 45 | 17.96 kg | IP65 / IK10 | -25°C to +65°C / 50,000H | 12 Hours |
| 01.GFL020.00 | GF-020 | 20W | 2,600 lm | 70W – 18V | 12.8V 18AH | 2700K – 6500K | 3 – 5m | 600 x 60 x 45 | 17.96 kg | IP65 / IK10 | -25°C to +65°C / 50,000H | 12 Hours |
| 01.GFL030.00 | GF-030 | 30W | 3,900 lm | 80W – 18V | 12.8V 24AH | 2700K – 6500K | 3 – 5m | 600 x 60 x 45 | 17.96 kg | IP65 / IK10 | -25°C to +65°C / 50,000H | 12 Hours |
Note:
- Material: High-impact PC housing.
- Controller: Integrated solar controller with microwave motion detection.
- Applications: Outdoor areas, Bus Stops, Car Parks
Frequently Asked Questions (FAQ)
Q: What type of sensor is integrated into the PMW GF LINEAR SERIES?
A: The luminaire uses an integrated microwave motion sensor that automatically adjusts output based on detected motion to conserve battery energy.
Q: What is the operating runtime on a full charge?
A: With the microwave sensor enabled, the system provides up to 12 hours of continuous night operation.
Q: What are the durability and protection ratings of this solar light?
A: It features a high-impact polycarbonate housing with an IP65 waterproof/dustproof rating, IK10 impact resistance rating, and operates between -25°C and +65°C.
Q: What mounting height and application spaces are recommended for this series?
A: The recommended mounting height is between 3 and 5 meters, making it suitable for outdoor car parks, bus stops, pathways, and commercial building perimeters.
