Description

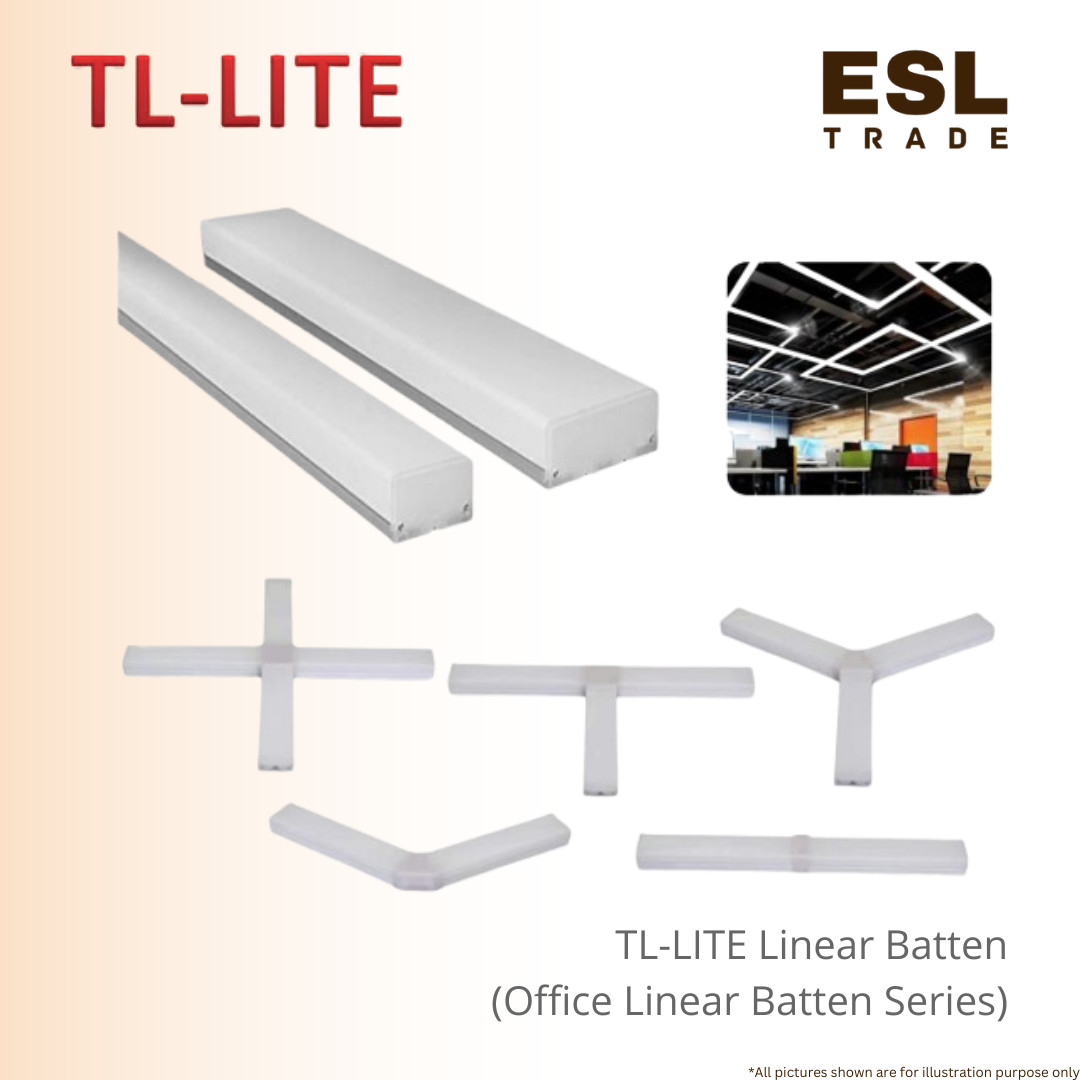

TL-LITE T50 & T70 Modular Office LED Linear Batten Light 30W / 40W / 60W / 80W (6500K Daylight & 4000K Cool White) Excellent for Office
Bring a sleek, architectural edge to your corporate environment with the premium TL-LITE T50 & T70 Office Linear Batten series.
Masterfully engineered for modern workspaces, open-plan corporate headquarters, conference halls, educational institutions, and high-end retail studios, this modular lighting system allows you to break away from traditional standalone fixtures.
Thanks to its innovative range of Joint Part Accessories, you can seamlessly connect multiple units to create continuous, shadow-free lines of light or custom geometric ceiling layouts including Cross, T, Y, V, and I configurations.
This series offers exceptional project flexibility with two distinct width profiles and four high-efficiency power configurations.
The slim T50 series (50mm width) is available in a compact 30W (600mm) or standard 600W (1200mm) model.
For areas demanding a bolder profile and higher lumen distribution, the robust T70 series (70mm width) comes in 40W (600mm) and 80W (1200mm) variations.
Equipped with a high-transmittance frosted diffuser, the system pushes out a powerful 90 LM/W luminous efficiency, distributing smooth, low-glare illumination that prevents eye strain.
Built to handle local voltage shifts across a wide AC170-265V range, these linear battens feature dependable internal drivers for flicker-free longevity.
They are available in two highly sought-after color temperatures: a crisp 6500K Daylight to optimize alertness and focus in high-productivity zones, and a balanced 4000K Cool White for a sophisticated, professional ambience.
Choose the TL-LITE T50/T70 series to build a seamless, interconnected lighting layout that elevates your commercial interior design.
Product Details
| Specification | T50 (600mm) | T50 (1200mm) | T70 (600mm) | T70 (1200mm) |
| Brand | TL-LITE | TL-LITE | TL-LITE | TL-LITE |
| Product Type | Modular Linear Batten | Modular Linear Batten | Modular Linear Batten | Modular Linear Batten |
| Power Consumption | 30W | 60W | 40W | 80W |
| Profile Width (Chassis) | T50 (50mm Profile) | T50 (50mm Profile) | T70 (70mm Profile) | T70 (70mm Profile) |
| Dimensions (LxWxH) | 600 x 50 x 40mm | 1200 x 50 x 40mm | 600 x 70 x 40mm | 1200 x 70 x 40mm |
| Luminous Efficiency | 90 LM/W | 90 LM/W | 90 LM/W | 90 LM/W |
| Color Temp (CCT) | 6500K / 4000K | 6500K / 4000K | 6500K / 4000K | 6500K / 4000K |
| Input Voltage | AC 170 – 265V | AC 170 – 265V | AC 170 – 265V | AC 170 – 265V |
| Modular Joint Options | Cross, T, Y, V, I-Joint | Cross, T, Y, V, I-Joint | Cross, T, Y, V, I-Joint | Cross, T, Y, V, I-Joint |
| Standard Carton Qty | 20 PCS | 20 PCS | 20 PCS | 20 PCS |
