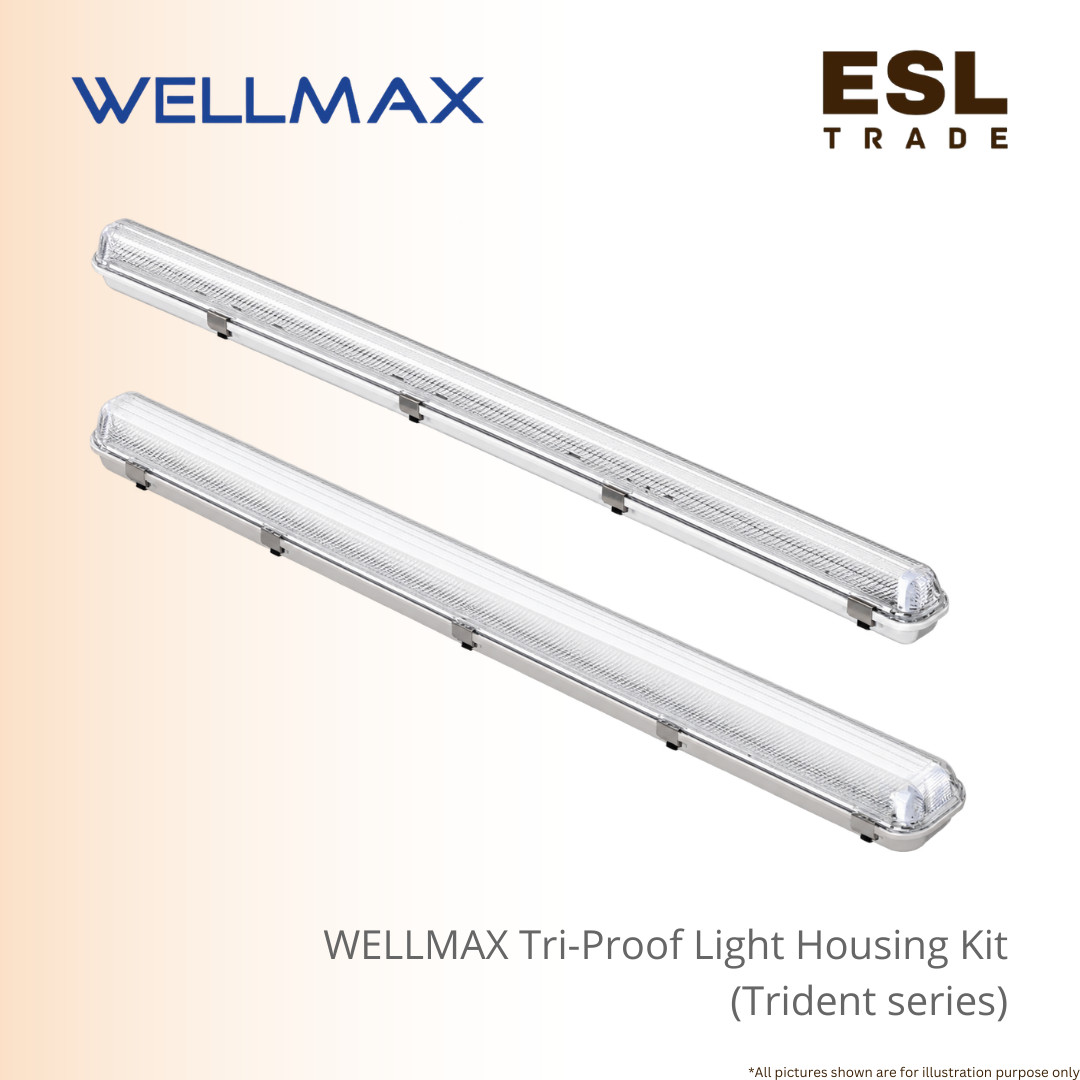

WELLMAX Trident IP65 IK08 Tri-Proof Light Housing Kit Double-Ended T8 Reliable Industrial Weatherproof Fixture Frame
The WELLMAX Trident C1/C2 Series Tri-Proof Light Housing Kit provides a heavy-duty, highly protective enclosure engineered specifically for housing standard double-ended T8 LED tubes in demanding indoor and outdoor environments.
The WELLMAX Trident C1/C2 Series Tri-Proof Light is Constructed with complete IP6X dust-tight sealing, IPX5 water jet resistance, and IK08 impact protection, these fixtures safeguard lighting components against harsh physical collisions, extreme moisture, and particle ingress.
This makes the housing kit an excellent option for car washes, parking garages, food processing plants, manufacturing facilities, and outdoor service corridors.
The WELLMAX Trident C1/C2 Series Tri-Proof Light is offered in two optimized models to match varied project requirements.
The WELLMAX Trident C1/C2 Series Tri-Proof Light Series features a slim-body design engineered for high spatial efficiency, saving over 25% on shipping costs and storage area while providing flexible surface and suspended mounting options.
The upgraded C2 Series incorporates a hot-galvanized gear plate that increases reflective brightness by up to 15%, alongside an integrated mini terminal that helps protect T8 tubes from burning out during electrical faults.
Both C1 and C2 Series accommodate double-ended wiring layouts for standard G13 T8 LED lamps across 0.6m (2ft), 1.2m (4ft), and 1.5m (5ft) length options in single-tube and double-tube configurations.
Built with a non-corrosive, rugged shell and designed for an operating life of 25,000 hours, the Trident housing kit delivers long-term durability.
Supported by complete international compliance including CE, LVD, RoHS, ErP, and EMC approvals this tri-proof housing series offers a dependable, low-maintenance foundation for modern LED linear installations
Product Details
| Series | Item / Model Number | Tube Type Compatibility | Tube Capacity | Compatible Length | Wiring Type | Driver / Tube Included | Ingress Protection | Impact Rating | Dimensions (L×W×H) | Mounting Options | Lifetime (Hrs) | Compliance |
| C1 Series | UTP/TRID-C1/0/1/0 | Double-End T8 | Single (1x Tube) | 0.6m (2ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 657 mm x 64mm x 60 mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C1 Series | UTP/TRID-C1/0/1/0 | Double-End T8 | Double (2x Tubes) | 0.6m (2ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 657mm x 97 mm x 60 mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C1 Series | UTP/TRID-C1/0/1/0 | Double-End T8 | Single (1x Tube) | 1.2m (4ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1267mm x 64 mm x 60mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C1 Series | UTP/TRID-C1/0/1/0 | Double-End T8 | Double (2x Tubes) | 1.2m (4ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1267 mm x 97mm x 60mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C1 Series | UTP/TRID-C1/0/1/0 | Double-End T8 | Single (1x Tube) | 1.5m (5ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1567mm x 64mm x 60mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C1 Series | UTP/TRID-C1/0/1/0 | Double-End T8 | Double (2x Tubes) | 1.5m (5ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1567mm x 97mm x 60mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C2 Series | UTP/TRID-C2/0/1/0 | Double-End T8 | Single (1x Tube) | 0.6m (2ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 660mm x 64mm x 75mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C2 Series | UTP/TRID-C2/0/1/0 | Double-End T8 | Double (2x Tubes) | 0.6m (2ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 660mm x 100mm x 75mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C2 Series | UTP/TRID-C2/0/1/0 | Double-End T8 | Single (1x Tube) | 1.2m (4ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1260mm x 64mm x 75mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C2 Series | UTP/TRID-C2/0/1/0 | Double-End T8 | Double (2x Tubes) | 1.2m (4ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1260mm x 100mm x 75 mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
| C2 Series | UTP/TRID-C2/0/1/0 | Double-End T8 | Double (2x Tubes) | 1.5m (5ft) | Double-Ended | No | IP65 (IP6X/IPX5) | IK08 | 1560 mm x 100 mm x 75 mm | Surface / Suspended | 25,000h | CE, LVD, RoHS, ErP, EMC |
Frequently Asked Questions (FAQ)
Q : Are LED T8 tubes included with the Trident C1/C2 Housing Kit?
A : No, the Trident C1/C2 series is a housing fixture kit designed to hold double-ended G13 T8 LED tubes, which are purchased separately
Q : What is the difference between the C1 and C2 housing series?
A : The C1 Series features an ultra-slim body designed to save over 25% on storage and shipping costs. The C2 Series adds a hot-galvanized gear plate that boosts light reflection by 15% and includes a mini terminal to prevent tube burnout during electrical faults.
Q : What wiring configuration does this housing kit support?
A : The Trident C1/C2 Series is wired for double-ended T8 LED tubes.
Q : Can this housing kit be installed in outdoor or wet areas?
A : Yes, the housing is IP65 rated (IP6X dust-proof and IPX5 water jet-resistant) and IK08 impact-resistant, making it suitable for exposed indoor and outdoor conditions.
Q : What installation methods are supported?
A : The housing kit supports both direct surface mounting and suspended wire mounting.
