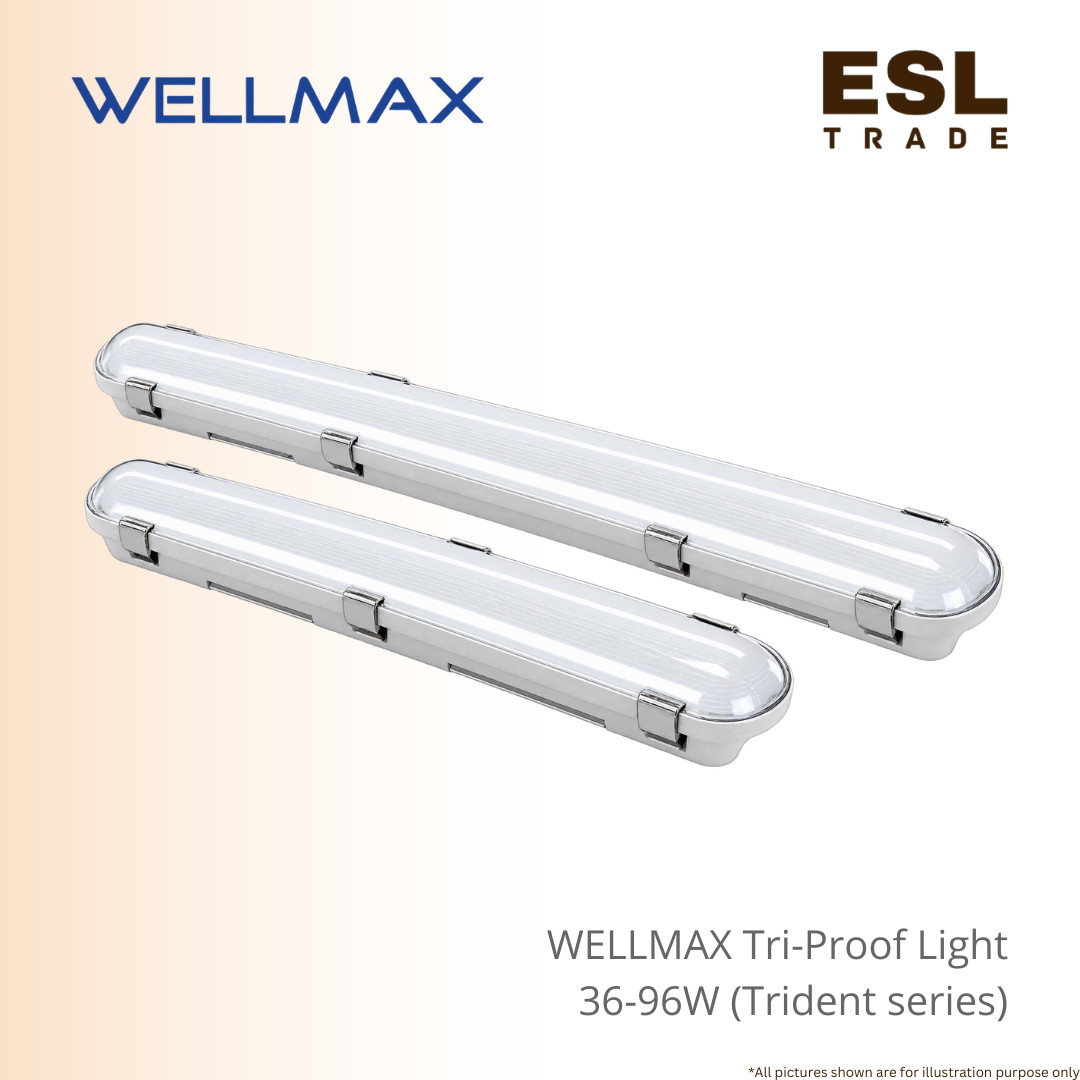

WELLMAX Trident Series IP65 IK08 Tri-Proof LED Light Heavy-Duty Weatherproof Industrial Luminaire
The WELLMAX Trident Series (S1/S2) Tri-Proof LED Light delivers a heavy-duty, energy-efficient lighting solution engineered specifically for demanding industrial and commercial environments.
Constructed with high-impact ABS engineering plastic housing and a rugged PC cover, the luminaire features IP65 (IP6X complete dust resistance and IPX5 water jet protection) and IK08 impact ratings to withstand severe physical impacts, dust, and moisture.
This makes it ideal for parking structures, car washes, warehouses, food processing facilities, and outdoor walkways.
The Trident lineup is available in two distinct series to meet different application needs.
The S1 Series provides cost-effective, standard tri-proof lighting with a quick-connect wiring terminal for easy and secure power connections.
The upgraded S2 Series introduces a modular design that seamlessly supports add-on motion sensor and emergency backup modules, allowing automated lighting and power-outage readiness.
Delivering a high luminous efficacy up to 135 lm/W, the series generates high output while minimizing operational energy usage.
Available in 2ft (600mm), 4ft (1200mm), and 5ft (1500mm) options, power choices range from fixed wattages (18W, 36W, 40W, 48W) up to multi-wattage adjustable models (10W to 50W), delivering up to 6750 lumens.
The fixture operates across universal 100–277V or standard 220–240V ranges, casting a wide 120° beam angle in 3000K, 4000K, or 6500K color options.
Backed by an operational lifespan of up to 50,000 hours and a 5-year warranty on S2 models, the series satisfies CE, LVD, RoHS, ErP, and EMC standards.
Product Details
| Series | Model / Item Number | Wattage (W) | Input Voltage (V) | Luminous Flux (lm) | Efficacy | Dimmable / Sensor / Emergency | Lifetime (Hrs) | Power Factor (PF) | Dimensions (L×W×H) | CCT Options | Beam Angle | Protection Code | Warranty |
| S1 Series | UTP/TRID-S1/0/1/0 | 18W | 100–277V / 220–240V | 1800 lm | 100 lm/W | Standard (No) | 15,000h | 0.5 / 0.9 | 600mm X 70 mm X 65 mm | 3000K / 4000K / 6500K | 120° | IP65 / IK08 | 2 Years |
| S1 Series | UTP/TRID-S1/0/1/0 | 36W | 100–277V / 220–240V | 3600 lm | 100 lm/W | Standard (No) | 15,000h | 0.5 / 0.9 | 1200mm x 70 mm x 65mm | 3000K / 4000K / 6500K | 120° | IP65 / IK08 | 2 Years |
| S1 Series | UTP/TRID-S1/0/1/0 | 48W | 100–277V / 220–240V | 4800 lm | 100 lm/W | Standard (No) | 15,000h | 0.5 / 0.9 | 1500 mm x 70mm x 65mm | 3000K / 4000K / 6500K | 120° | IP65 / IK08 | 2 Years |
| S2 Series | UTP/TRID-S2/DIM/1/4B | 11W / 13W / 15W / 18W | 100–277V / 220–240V | 2430 lm (Max) | Up to 135 lm/W | Optional Sensor / Emergency | 50,000h | 0.9 | 600mm x 95mm x 75mm | 3000K / 4000K / 6500K | 120° | IP65 / IK08 | 5 Years |
| S2 Series | UTP/TRID-S2/SEN/1/M | 25W / 30W / 35W / 40W | 100–277V / 220–240V | 5400 lm (Max) | Up to 135 lm/W | Optional Sensor / Emergency | 50,000h | 0.9 | 1200mm x 95 mm x 75mm | 3000K / 4000K / 6500K | 120° | IP65 / IK08 | 5 Years |
| S2 Series | UTP/TRID-S2/EMG/1/4B | 30W / 40W / 45W / 50W | 100–277V / 220–240V | 6750 lm (Max) | Up to 135 lm/W | Optional Sensor / Emergency | 50,000h | 0.9 | 1500 mm x 95mm x 75mm | 3000K / 4000K / 6500K | 120° | IP65 / IK08 | 5 Years |
Frequently Asked Questions (FAQ)
Q : What does “Tri-Proof” mean for the WELLMAX Trident light?
A : Tri-proof refers to triple protection: dustproof (IP6X), waterproof against water jets (IPX5), and impact-proof (IK08 protection against 5-Joule impacts).
Q : What is the difference between the Trident S1 and S2 Series?
A : The S1 Series is a standard, cost-efficient model with a 15,000-hour life and 2-year warranty. The S2 Series offers higher efficacy (up to 135 lm/W), multi-wattage selection, modular motion sensor / emergency options, a 50,000-hour life, and a 5-year warranty.
Q : Can the Trident S2 Series be used as emergency lighting during power outages?
A : Yes, the S2 Series features a modular design that supports an optional emergency module to keep the light running during electrical cuts.
Q : How easy is it to wire the Trident light fixture?
A : The fixture includes a waterproof wiring terminal designed for safe, direct connection to standard mains power supplies.
Q : What environments are best suited for this tri-proof light?
A : It is suitable for demanding indoor and outdoor locations, such as car parks, warehouses, factories, car washes, and exposed walkways
