ALCO Metric Cable Glands for Armoured Cables – M20 to M75
Secure and protect your electrical wiring with ALCO Metric Cable Glands. Designed specifically for use with armoured cables, these high-quality glands provide reliable strain relief and a secure seal. Available in a wide range of sizes from M20 to M75, they are suitable for various cable diameters and thread specifications. Our detailed gland selection chart makes it easy to find the perfect fit for your project. Choose ALCO for durable, effective, and safe cable management solutions.

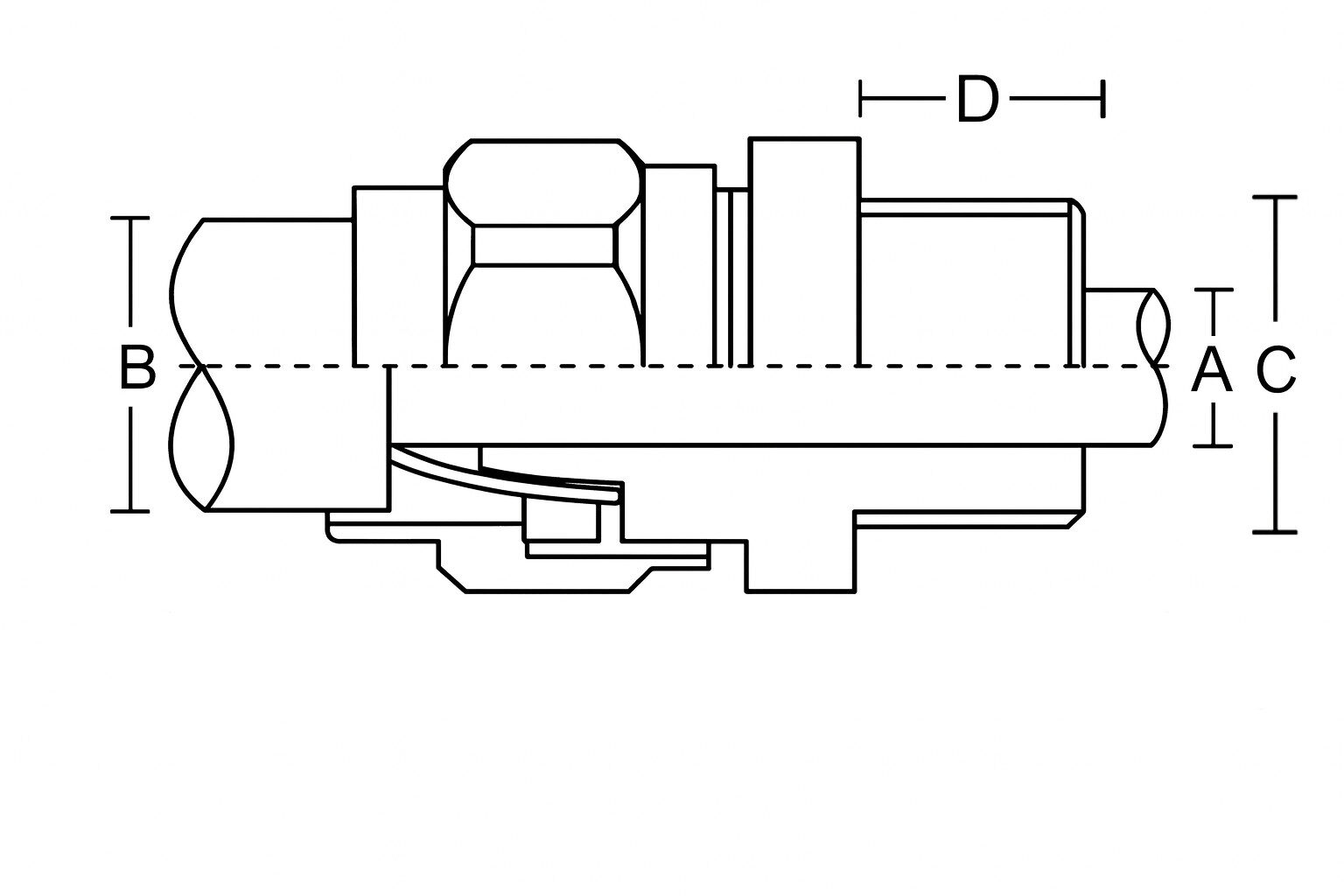

| Size | Thread Size “C” Metric |
Thread Length “D” | “A” Max. | “B” Max. | Armour Wire Dia. | Protrusion Length “F” | A/F | A/C |
|---|---|---|---|---|---|---|---|---|
| G-204 | M20 | 10.00 | 12.50 | 16.00 | 0.90-1.25 | 17.00 | 22.00 | 24.25 |
| G-206 | M20 | 15.00 | 18.50 | 20.00 | 0.90-1.25 | 17.50 | 24.00 | 30.00 |
| G-254 | M25 | 10.00 | 18.50 | 24.00 | 1.25-1.60 | 19.00 | 30.00 | 33.00 |
| G-256 | M25 | 10.00 | 20.50 | 27.00 | 1.25-1.60 | 20.25 | 32.00 | 35.00 |
| G-324 | M32 | 10.00 | 27.25 | 34.00 | 1.60-2.00 | 20.50 | 40.00 | 45.00 |
| G-326 | M32 | 10.00 | 27.25 | 34.00 | 1.60-2.00 | 20.50 | 45.00 | 45.00 |
| G-405 | M40 | 15.00 | 31.00 | 37.50 | 1.60-2.00 | 21.00 | 44.50 | 50.00 |
| G-503 | M50 | 15.00 | 37.00 | 44.00 | 2.00-2.50 | 21.50 | 55.00 | 61.50 |
| G-505 | M50 | 15.00 | 41.00 | 48.00 | 2.00-2.50 | 21.50 | 55.00 | 61.50 |
| G-636 | M63 | 15.00 | 46.50 | 54.00 | 2.50 | 23.50 | 65.00 | 70.00 |
| G-753 | M75 | 15.00 | 51.50 | 59.00 | 2.50 | 26.00 | 67.50 | 72.00 |
| G-755 | M75 | 15.00 | 56.75 | 65.00 | 2.50-3.15 | 26.00 | 75.00 | 80.00 |
