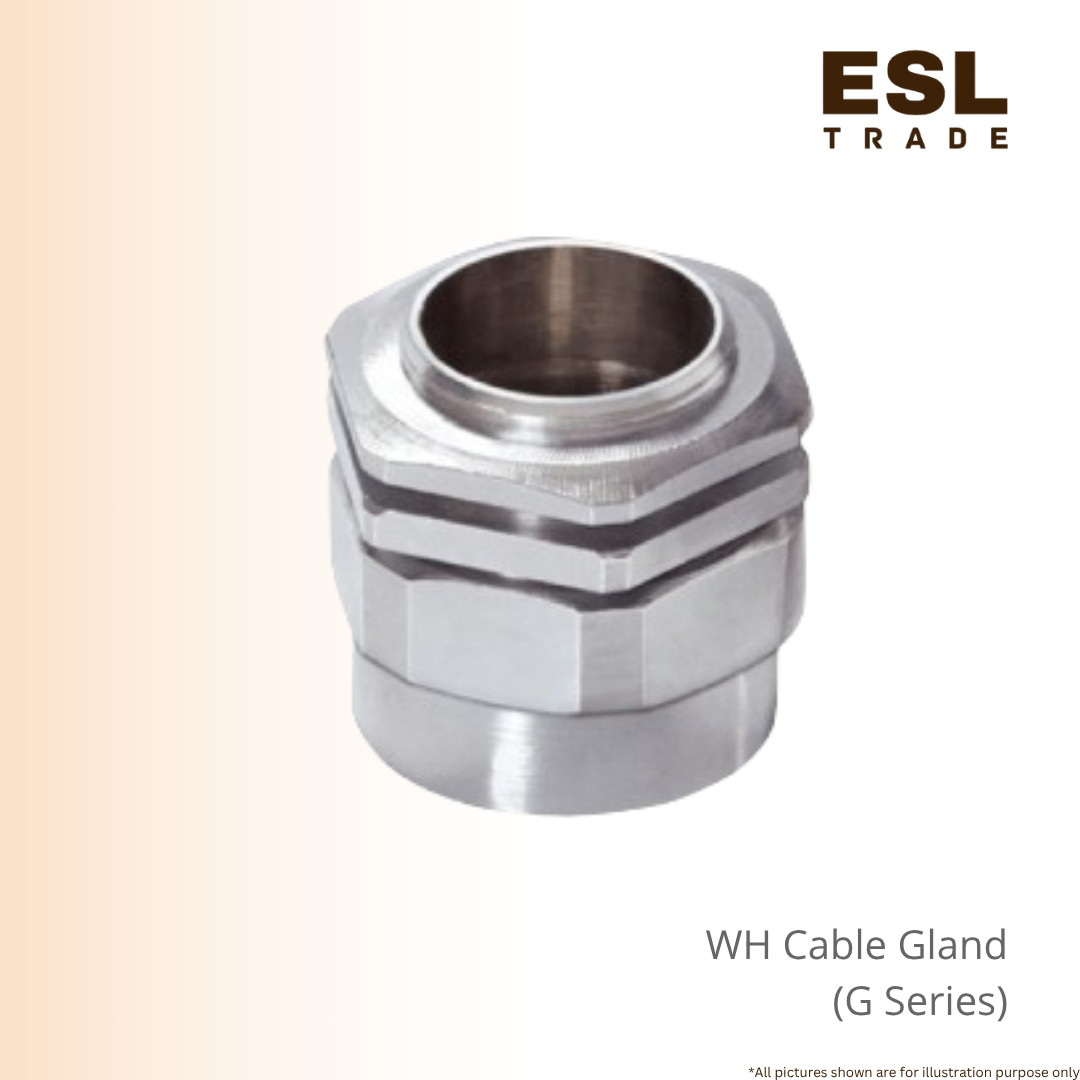

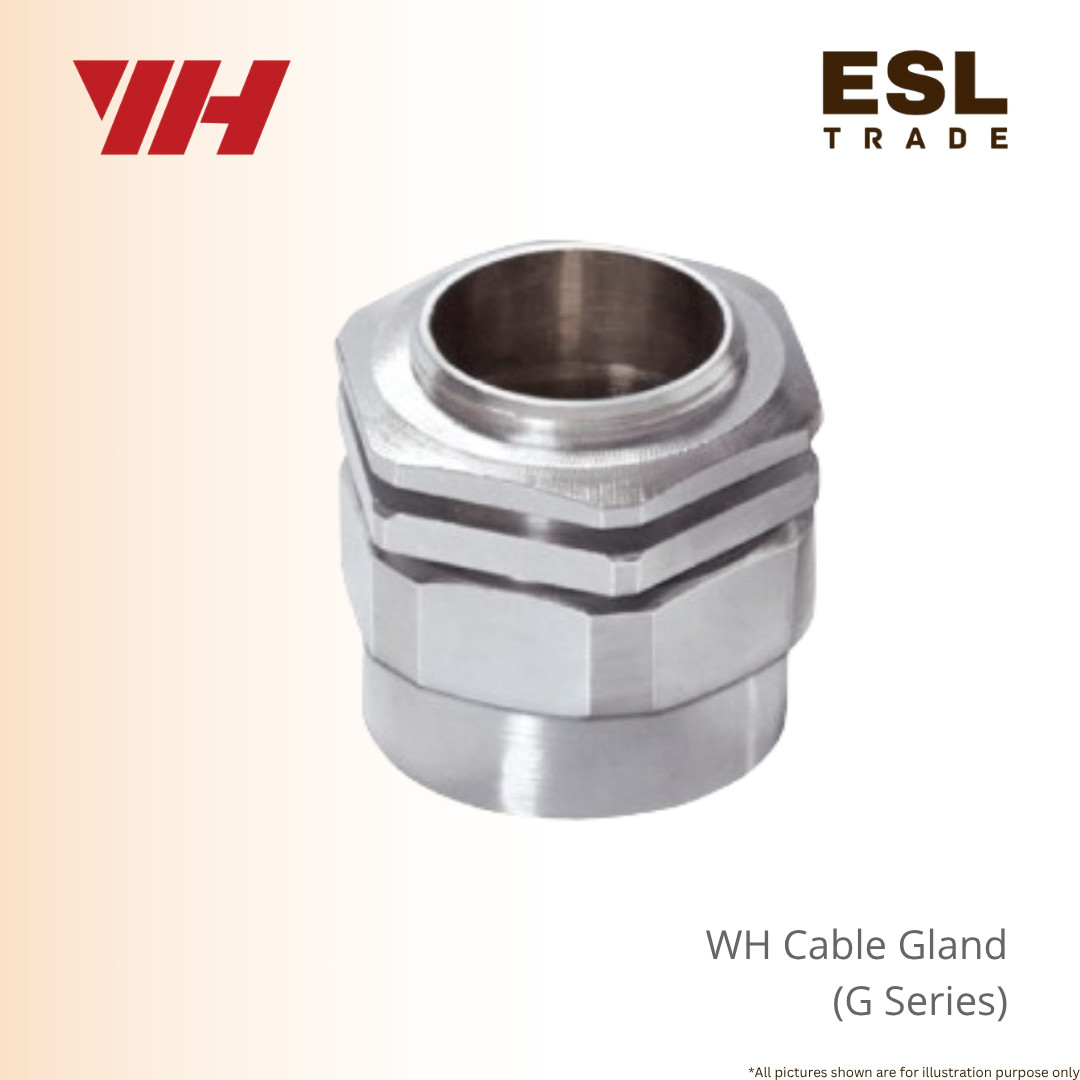

WIN INDIA G Cable Gland BS 6121 SWA Excellent Armored Cable Connector (20mm to 75mm) for Industrial Electrical Termination Superior Quality
The INDIA G Cable Gland series provides a robust, heavy-duty mechanical cable termination and clamping solution engineered specifically for Single Wire Armour (SWA) cables.
Designed in strict accordance with BS 6121: Part 1: 1989 standards, these indoor and weather-protected cable glands deliver reliable earth continuity and mechanical retention for armoured power cables entering switchboards, junction boxes, motor connection boxes, and industrial distribution panels.
Manufactured from high-grade nickel-plated brass, the INDIA G Cable Gland series offers exceptional mechanical strength, wear resistance, and surface protection against oxidation, tarnishing, and corrosion. Each gland incorporates a dedicated internal clamping ring mechanism that firmly secures the steel wire armour (SWA), ensuring a low-resistance electrical earth path while protecting inner cable cores from strain and pull-out forces.
Key technical highlights and structural advantages of the INDIA G Cable Gland line include:
-
BS 6121 Compliance: Manufactured and tested to meet BS 6121: Part 1: 1989 design specifications for industrial cable terminations.
-
Nickel Plated Brass Construction: High-grade brass body plated with nickel for long-lasting durability in demanding industrial environments.
-
Dedicated Armour Clamping: Built-in clamping ring provides positive 360-degree mechanical locking and electrical earth bonding across various wire armour diameters (0.90mm to 2.50mm).
-
Comprehensive Size Range: Spans entry gland sizes from 20mm up to 75mm across 12 specific model variants, accommodating cable inner/outer diameters from compact power lines to heavy industrial cables.
Whether installing main electrical distribution systems, factory machinery power entries, or commercial sub-station feeders, the INDIA G Cable Gland series ensures dependable and safe cable anchoring
Product Details :
| Gland Size | Entry Thread – Dia C | Entry Thread – Length Minimum E | Cable Acceptance Details – Dia A Maximum | Cable Acceptance Details – Dia B Maximum | Cable Acceptance Details – Armour Diameter | Across Flat | Across Corner |
|
G-204
|
20
|
9
|
11.50
|
17.00
|
0.90/1.25
|
21.50
|
24.50
|
|
G-206
|
20
|
9
|
13.80
|
20.00
|
0.90/1.25
|
24.00
|
27.30
|
|
G-254
|
25
|
9
|
16.50
|
22.00
|
1.25/1.60
|
27.00
|
30.50
|
|
G-256
|
25
|
9
|
18.80
|
24.50
|
1.25/1.60
|
30.50
|
34.00
|
|
G-324
|
32
|
9
|
22.80
|
29.00
|
1.60/2.00
|
34.50
|
39.00
|
|
G-326
|
32
|
10
|
26.50
|
33.00
|
1.60/2.00
|
39.00
|
44.00
|
|
G-405
|
40
|
10
|
33.00
|
40.50
|
1.60/2.00
|
47.50
|
54.00
|
|
G-503
|
50
|
11
|
39.00
|
47.00
|
2.00/2.50
|
52.00
|
58.00
|
|
G-505
|
50
|
11
|
44.00
|
52.00
|
2.00/2.50
|
53.00
|
59.50
|
|
G-636
|
63
|
15
|
55.00
|
65.00
|
2.50
|
70.50
|
79.00
|
|
G-753
|
75
|
15
|
61.50
|
71.00
|
2.50
|
78.50
|
88.00
|
|
G-755
|
75
|
15
|
67.50
|
77.00
|
2.50
|
85.00
|
95.20
|
Frequently Asked Questions (FAQ)
Q1: What type of cables are the INDIA Type G Cable Glands designed for?
A : The INDIA Type G Cable Gland is specifically designed for Single Wire Armour (SWA) power and control cables.
The integrated clamping ring secures the steel armour wires to provide strain relief and electrical continuity.
Q2: What is the benefit of nickel plating on brass cable glands?
A : Nickel plating provides a protective barrier over the brass body, enhancing resistance to tarnishing, corrosion, and chemical exposure in harsh industrial environments while maintaining excellent conductivity for grounding.
Q3: How do I select between models of the same entry size, such as G-204 and G-206?
A : Both G-204 and G-206 use a 20mm entry size, but they differ in cable bedding and outer sheath capacities:
-
G-204: Maximum Dia A is 11.50mm, and maximum Dia B is 17.00mm.
-
G-206: Fits slightly larger cables, with a maximum Dia A of 13.80mm and maximum Dia B of 20.00mm.
Always check your cable’s inner bedding diameter (Dia A) and overall outer diameter (Dia B) against the catalog table before selection.
Q4: Do these glands conform to international electrical standards?
A : Yes, the INDIA G Cable Gland series is designed in compliance with BS 6121: Part 1: 1989, meeting standard industrial requirements for mechanical cable entry and armour clamping.
Q5: Can an earth tag be fitted with these cable glands?
A : Yes. An earth tag (such as an India Brass Earth Tag) can be installed over the entry thread of the cable gland before securing it with a locknut inside or outside the panel enclosure to establish a dedicated earth continuity connection.
