Description

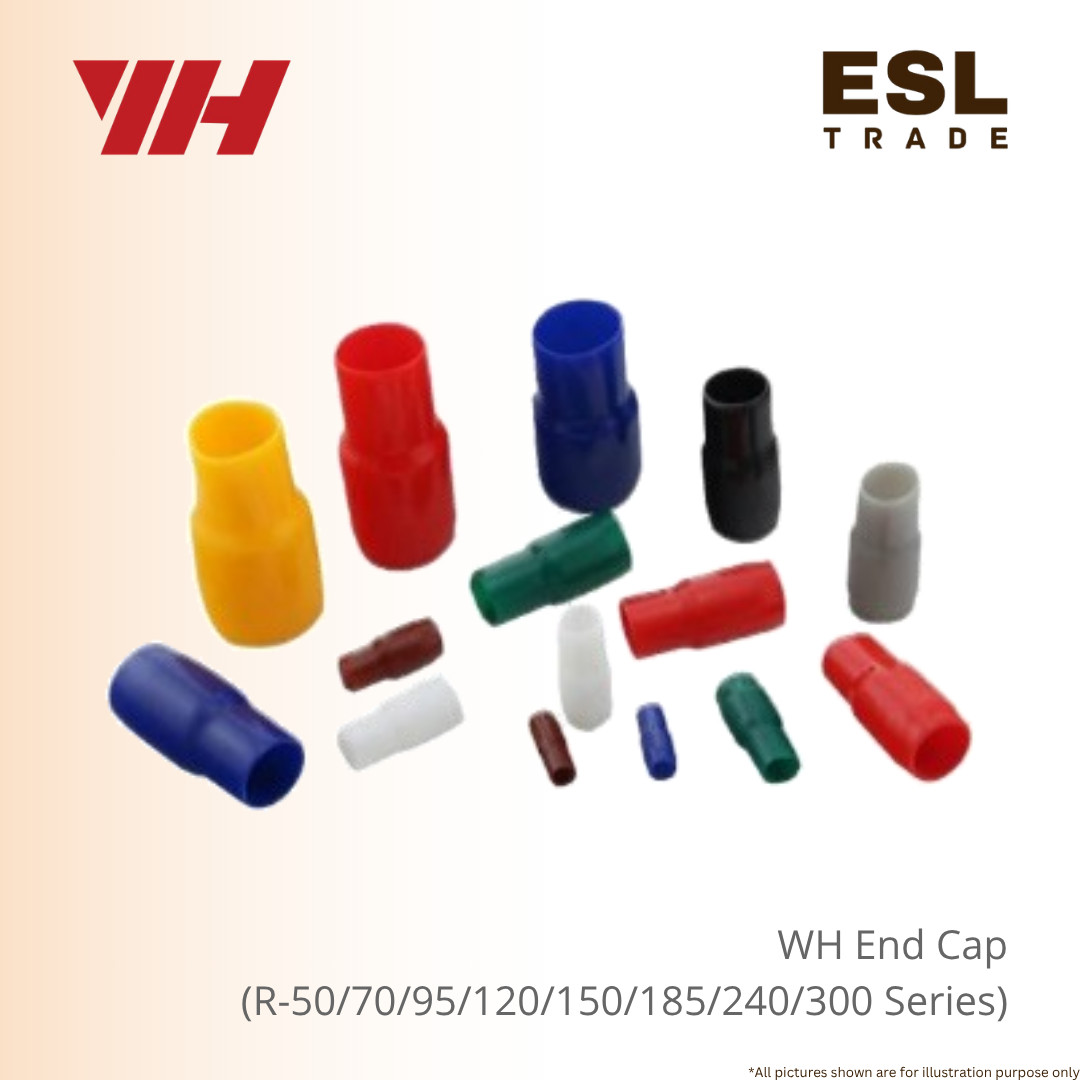

WIN MODDEN Cable End Cap Sleeves (1.5mm² to 300mm² / Red, Blue, Yellow, Black & Green) PVC Terminal Insulation Caps Excellent for High Reliability Protection
The MODDEN Cable End Cap Series (Order Codes: R-1.5 to R-300) delivers essential electrical insulation and mechanical protection for wire terminals, cable lug ends, and exposed conductors.
Molded from flexible, high-dielectric PVC material, these protective sleeves fit snugly over crimped terminal lugs, busbar connections, and wire splices to prevent electrical short circuits, accidental contact, and environmental contamination.
Designed to accommodate a comprehensive range of electrical wiring gauges, the MODDEN End Cap series spans sixteen distinct sizes ranging from 1.5mm² for small control wiring up to 300 mm² for heavy-duty commercial distribution cables.
To facilitate clear Phase and Neutral circuit identification, these insulating end caps are available in standard electrical industry color coding, including Red, Blue, Yellow, Black, and Green.
Key design features and functional benefits include:
-
Dielectric Insulation Guard: Shields energized electrical cable terminals to safeguard maintenance personnel against electrical shock and prevent phase-to-phase short circuits inside switchboards.
-
Flexible Flame-Retardant PVC: Offers excellent elasticity for easy slip-on installation over cable lugs while maintaining resistance against moisture, dust, oils, and physical wear.
-
Phase Color Identification: Simplifies circuit tracing, wiring verification, and busbar phase balancing across complex switchgear and distribution panels.
Whether applied in industrial control panels, building distribution boards, solar inverter wiring, or transformer connections, MODDEN End Caps provide a practical and neat finishing solution for professional electrical installations.
Product Detail
| Description | Description |
|
R-1.5 1.5MM END CAP
|
R-50 50MM END CAP
|
|
R2.5 2.5MM END CAP
|
R-70 70MM END CAP
|
|
R-4 4MM END CAP
|
R-95 95MM END CAP
|
|
R-6 6MM END CAP
|
R-120 120MM END CAP
|
|
R-10 10MM END CAP
|
R-150 150MM END CAP
|
|
R-16 16MM END CAP
|
R-185 185MM END CAP
|
|
R-25 25MM END CAP
|
R-240 240MM END CAP
|
|
R-35 35MM END CAP
|
R-300 300MM END CAP
|
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of using MODDEN cable end caps?
A : MODDEN end caps provide dielectric insulation over exposed cable lugs and wire terminations, preventing short circuits, electrical shocks, and dust contamination in electrical panels.
Q2: How do I select the right end cap size for my cable?
A : Select the end cap order code matching your cable’s cross-sectional area (e.g., use R-16 for a 16 mm² cable or R-70 for a 70mm² cable).
Q3: Are these end caps heat-shrinkable or push-on?
A : MODDEN end caps are flexible, stretchable PVC slip-on caps that pull smoothly over crimped cable lugs without requiring a heat gun.
Q4: Why are multiple colors (Red, Blue, Yellow, Black, Green) offered?
A : The color options allow electrician teams to follow standard Phase color coding (L1, L2, L3, Neutral, and Earth/Ground) for easier circuit identification and safety compliance inside DB boxes.
Q5: Can MODDEN end caps be used for outdoor wiring connections?
A : Yes, provided they are housed within an appropriate IP-rated junction box or enclosure to shield them from continuous outdoor UV exposure and direct water submersion
