Description

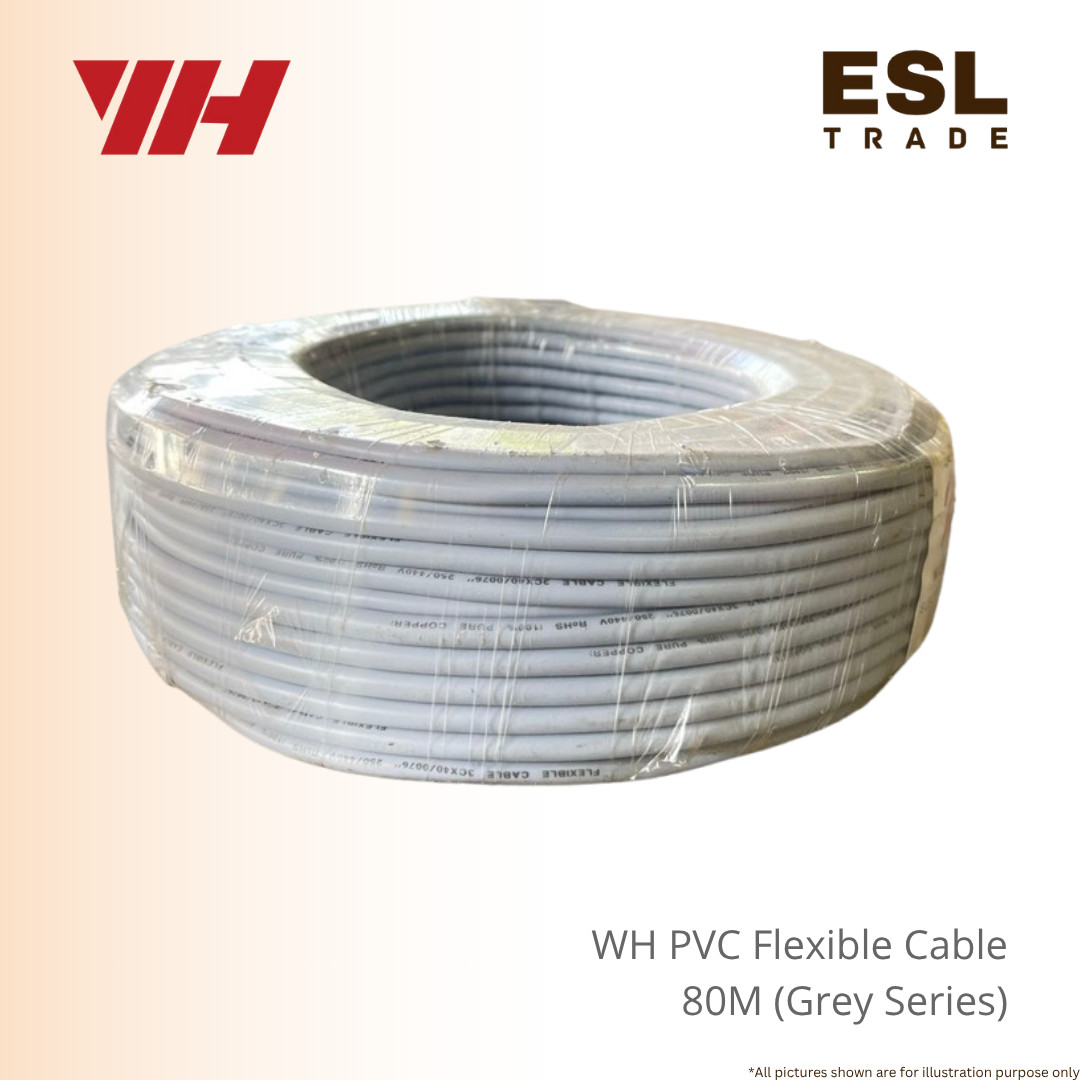

WIN MODDEN 3-Core & 4-Core PVC Flexible Cable Grey 80m Coil Electrical Power Wire Reliable Conductive Quality
The MODDEN PVC Flexible Cable Grey 80 Meter Series provides reliable electrical distribution for household appliances, temporary power extensions, commercial equipment, and indoor wiring setups.
Manufactured with high-conductivity copper conductor strands and protected by durable PVC insulation with an outer grey protective sheath, this cable range balances flexibility, insulation safety, and mechanical protection.
Packaged in convenient 80-meter coils, MODDEN offers both 3-core and 4-core configurations across standard gauge specifications.
The 3-core options include light-duty 23/0.16 for low-power electronics, general-purpose 40/0076 for domestic appliances, medium-duty 70/0076 for workshop tools, and heavy-duty 110/0076 for demanding equipment installations.
For applications requiring three-phase connections, control signaling, or dual switching, MODDEN provides 4-core variants in 40/0076 and 70/0076 sizes.
Key physical and functional features of the MODDEN Grey PVC Flexible Cable series include:
-
Flexible Stranded Construction: Multi-strand copper cores facilitate easy bending, routing, and connection inside narrow conduits, power strips, plug tops, and junction boxes.
-
Double-Layer PVC Insulation & Sheathing: Provides effective electrical insulation against short circuits and shields internal conductors against abrasion, light impacts, and dust.
-
Standardized Core Color Identification: Color-coded internal conductors allow clear wire identification during installation to ensure correct live, neutral, earth, or control signal connections.
Whether for replacing worn appliance flexes, extending power leads, or wiring indoor electrical fixtures, the MODDEN 80-meter grey PVC flexible cable series delivers safe and versatile performance.
Product Detail
| Description | Order Code |
|
MODDEN 23/0.16 X 3 CORE
|
M-23/016X3C-GREY
|
|
MODDEN 40/0076 X 3 CORE
|
M-40/0076X3C-GREY
|
|
MODDEN 70/0076 X 3 CORE
|
M-70/0076X3C-GREY
|
|
MODDEN 110/0076 X 3 CORE
|
M-110/0076X3C-GREY
|
|
MODDEN 40/0076 X 4 CORE
|
M-40/0076X4C-GREY
|
|
MODDEN 70/0076 X 4 CORE
|
M-70/0076X4C-GREY
|
Frequently Asked Questions (FAQ)
Q1: What is the difference between 3-core and 4-core flexible cables?
A : 3-core cables typically contain Live, Neutral, and Earth conductors for single-phase electrical appliances and standard 3-pin plug connections. 4-core cables provide an extra conductor, making them suitable for three-phase power supplies, dual-circuit switching, or specialized control equipment.
Q2: How do I choose the correct cable size (e.g., 23/0.16 vs 40/0076 vs 70/0076)?
A : Cable selection depends on the total current (amperage) and power rating of the connected load:
-
23/0.16: Suitable for light duty applications like standing fans, table lamps, and small electronics.
-
40/0076: Ideal for general household appliances, TV units, and lightweight extension sockets.
-
70/0076: Best for medium loads such as vacuum cleaners, power tools, and kitchen appliances.
-
110/0076: Recommended for higher current loads and heavy-duty portable machinery.
Q3: Can MODDEN grey PVC flexible cables be buried underground or used permanently outdoors exposed to rain?
A : No, standard indoor PVC flexible cables are intended for surface wiring, indoor appliances, and temporary extension leads. For direct burial or permanent outdoor installations, armored (XLPE/SWA) or outdoor-rated heavy-duty cables should be used instead.
Q4: Is the total length supplied as a single continuous coil?
A : Yes, each order code corresponds to a full, continuous 80-meter coil packaged for convenient storage and deployment.
Q5: Can these flexible cables be wired directly into standard 13A 3-pin plugs?
A : Yes, the multi-stranded fine wire design allows clean strip-and-screw termination inside standard 13A plug tops, trailing extension sockets, and appliance connector terminals.
