Description

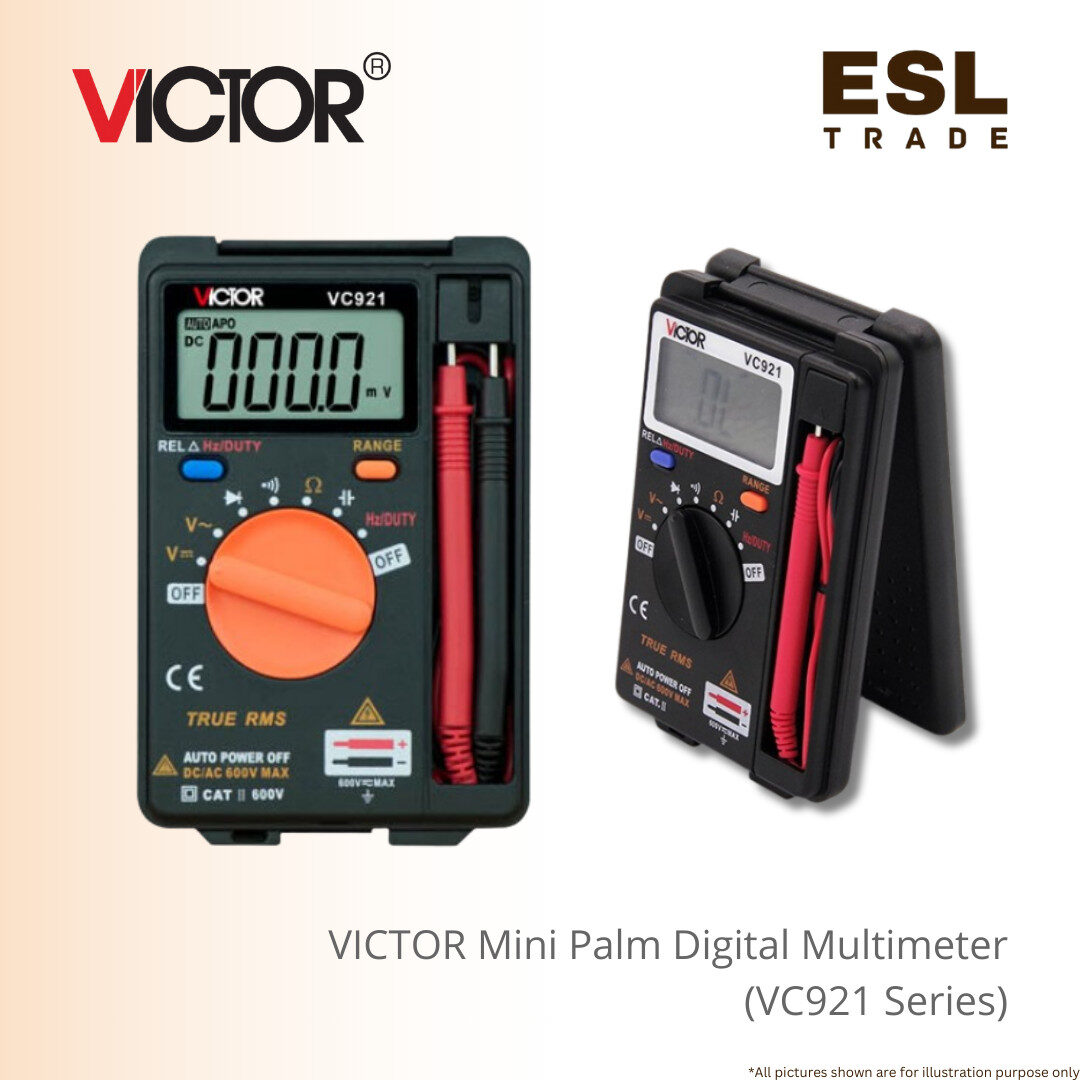

VICTOR Mini Palm Digital Multimeter VC921 Series – Professional Compact Meter
The VICTOR VC921 Series Mini Palm Digital Multimeter is the perfect blend of portability and performance.
Its compact and lightweight design (just 180g) makes it an essential tool for field service, on-the-go diagnostics, or any job where space is at a premium.
Despite its small size, this versatile multimeter packs a full range of functions, including measurements for DC/AC voltage, resistance, capacitance, and frequency far more than a typical mini meter.
A convenient auto-ranging function simplifies operation, automatically selecting the correct scale for the measurement, so you don’t have to.
Built to be as reliable as it is portable, the VC921 Series features shockproof protection, safeguarding the device against accidental drops and ensuring a long service life.
Its clear 3999-count LCD display (55x43mm) provides accurate readings, complemented by practical features like a continuity buzzer, diode test, and data hold.
Whether you’re a professional electrician troubleshooting a circuit or a hobbyist working on electronics, the VICTOR VC921 Series Mini Palm Digital Multimeter delivers a durable, convenient, and high-performance solution in a form factor that’s always ready to go.
Product Specification :
| Basic Function | Range | Accuracy |
| DC Voltage | 400mV / 4V / 40V / 400V / 600V | ±(0.5%+4) |
| AC Voltage | 400mV / 4V / 40V / 400V / 600V | ±(0.8%+6) |
| Resistance | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ | ±(0.8%+4) |
| Capacitance | 4nF / 40nF / 400nF / 4uF / 40uF / 2000uF | ±(3.5%+8) |
| Frequency | 100Hz / 1000Hz / 10kHz / 100kHz / 1MHz / 10MHz | ±(0.5%+4) |
| General Specification | ||
| Diode test | Yes | |
| Continuity buzzer | Yes | |
| Low battery indication | Yes | |
| Data hold | Yes | |
| Auto power off | Yes | |
| Max. value measurement | Yes | |
| Shock proof protection | Yes | |
| Frequency | Yes | |
| Duty cycle measuring | Yes | |
| Input impedance | 10MΩ | |
| Sampling rate | 3 times/s | |
| AC Frequency response | 40~400Hz | |
| Operation way | Auto range | |
| Max. Display | 3999 | |
| LCD size | 55×43mm | |
| Battery | 3V (1.5×2) | |
| Product Net Weight | Approx. 180g | |
| Product Dimension | 145×80×28mm | |
| Standard Accessories | Test leads, battery, instruction manual | |
| Standard inner packing | Color box | |
| Standard Quantity per Carton | 64pcs | |
| Carton size | 290×255×390mm | |
| Standard Gross Weight | Approx. 10kg | |
