Description

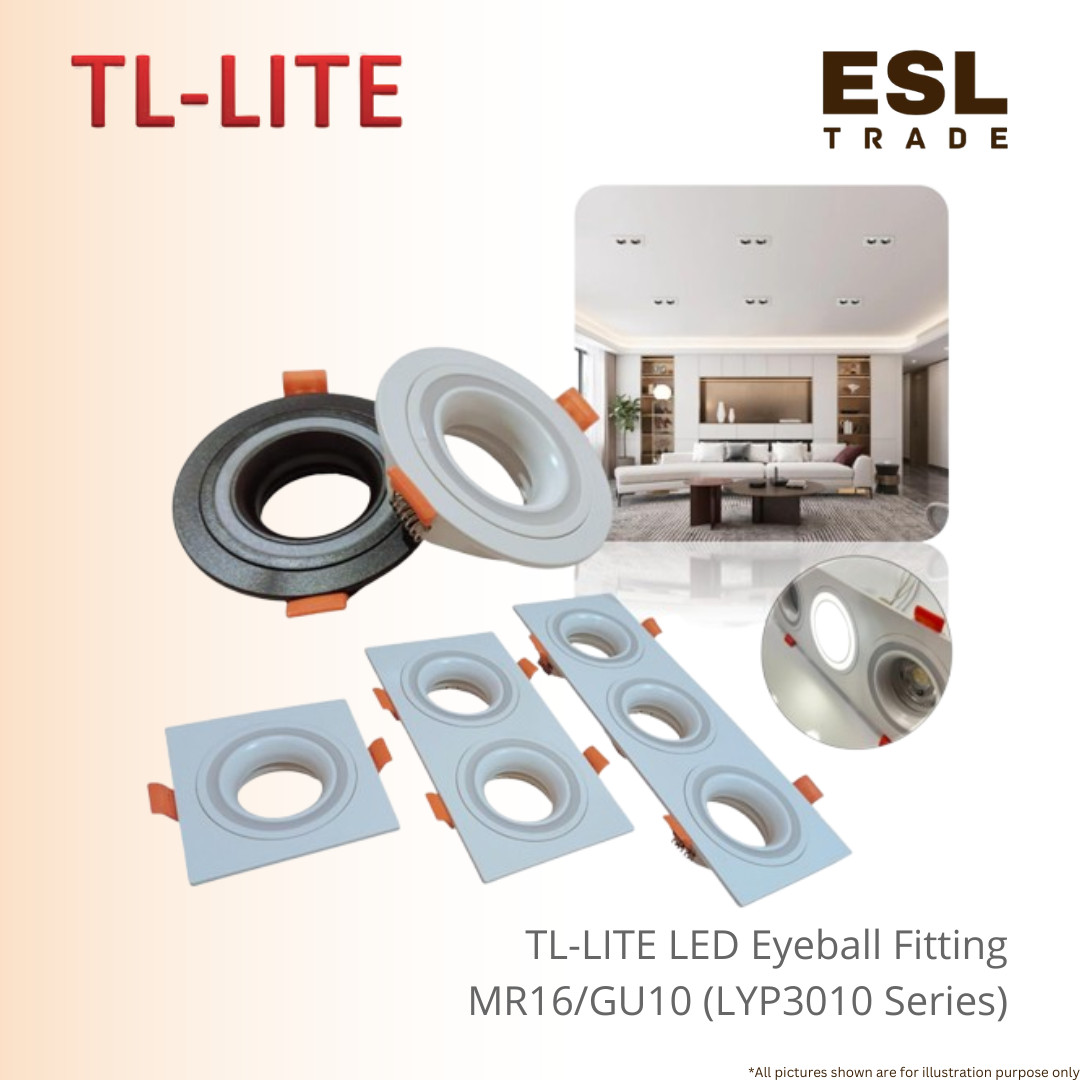

TL-LITE Recessed LED Eyeball Fitting MR16 / GU10 Excellent Multi-Compartment PC Downlight Casing Single, Double & Triple Grid
Achieve seamless, architectural-grade lighting control with the premium TL-LITE Recessed LED Eyeball Fitting MR16 / GU10 series.
This collection is engineered to offer exceptional flexibility for plaster, drywall, and drop-ceiling installations.
Featuring adjustable eyeball cores that pivot smoothly, these fixtures allow you to direct high-intensity light beams onto feature walls, retail displays, or tasks, eliminating dark spots and putting you in absolute control of your space’s ambiance.
Constructed from premium Polycarbonate (PC), the series balances lightweight design with rugged structural durability, making it perfect for residential spaces, modern offices, and fast-paced commercial retail environments.
The lineup is uniquely structured with modular configurations, spanning from single spotlights up to linear multi-light grids.
The classic round LY-P3010 is available in flexible White and Black (WH/BK) variations, requiring a 75mm cut hole.
The modern square variants include the single-grid LY-P3011 (75 mm cut hole), the double-compartment linear LY-P3012 (155 mm cut hole), and the triple-compartment linear LY-P3013 (235mm cut hole) all elegantly styled in an architectural White finish.
Designed to accommodate standard MR16 or GU10 LED lamps, this collection allows you to select your preferred wattage, beam angle, and color temperature.
Outfitted with heavy-duty side spring clips for toolless installation, the TL-LITE modular downlight housing provides a clean, modern trim profile that seamlessly integrates into contemporary lighting layouts.
Product Specifications
| Feature / Model | LY-P3010 (Round) | LY-P3011 (Square) | LY-P3012 (Double Linear) | LY-P3013 (Triple Linear) |
| Brand | TL-LITE™ | TL-LITE™ | TL-LITE™ | TL-LITE™ |
| Product Category | LED Eyeball Fitting | LED Eyeball Fitting | LED Eyeball Fitting | LED Eyeball Fitting |
| Material Type | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) | PC (Polycarbonate) |
| Lamp Casing Type | MR16 / GU10 | MR16 / GU10 | MR16 / GU10 | MR16 / GU10 |
| Trim Finish Options | White / Black (WH/BK) | White | White | White |
| Cut Hole Size | 75 mm | 75 mm | 155 mm | 235 mm |
| Physical Dimension | 92 x 35mm | 92 x 35 mm | 172 x 35mm | 258 x 35 mm |
| Standard Carton Qty | 100 PCS | 100 PCS | 50 PCS | 50 PCS |
Key Features
-
Multi-Light Architectural Grids: Available in double (LY-P3012) and triple (LY-P3013) configurations to cluster directional light beams from a single ceiling trim footprint, creating high-end studio or gallery aesthetics.
-
Independent Directional Aiming: Every individual eyeball pocket features its own independent tilt mechanism, enabling you to cast spotlight beams in different directions simultaneously.
-
Rust-Proof Polycarbonate Finish: Made with high-tensile PC that resists discoloration, degradation, and rust, ensuring long-lasting color stability on both white and black finishes.
