Description

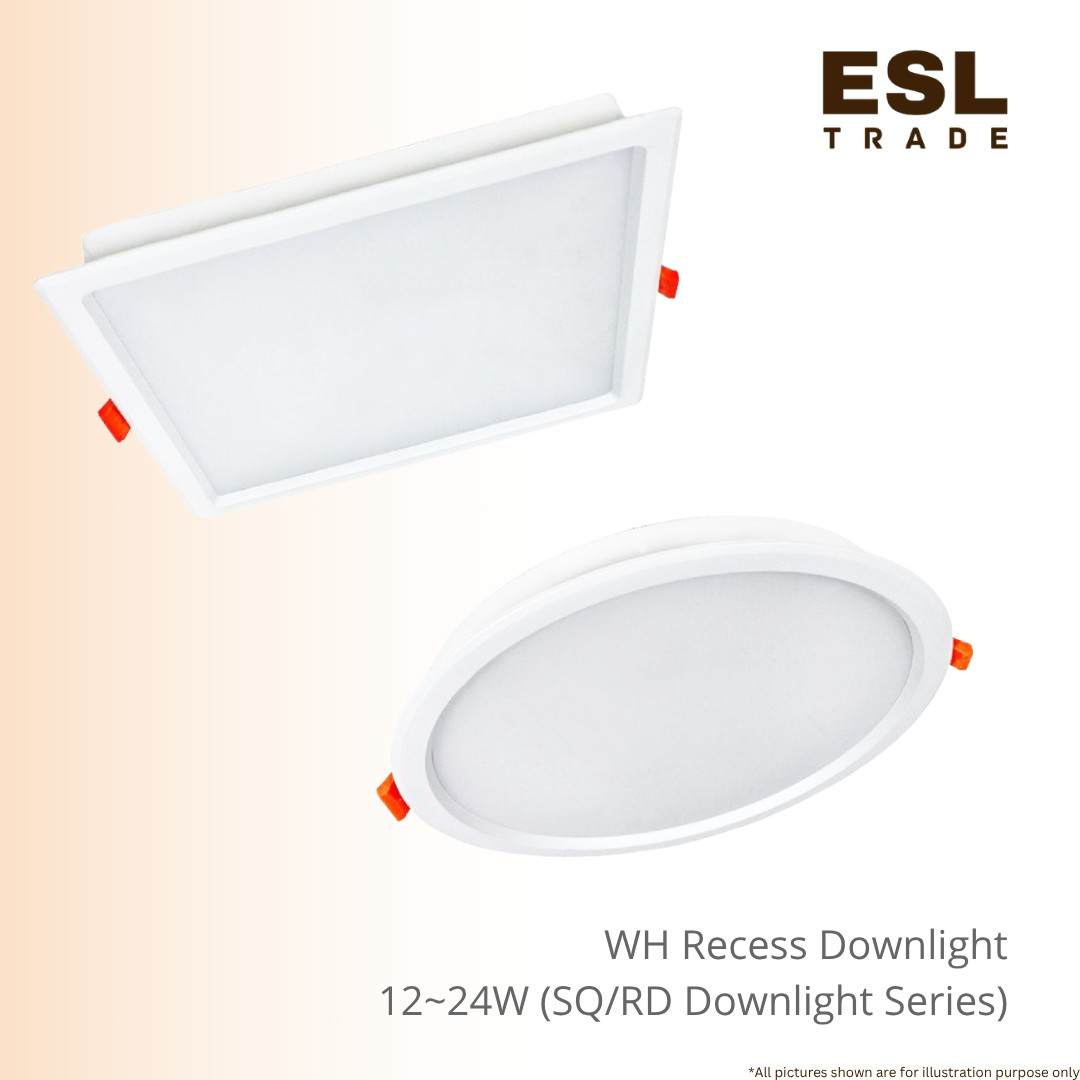

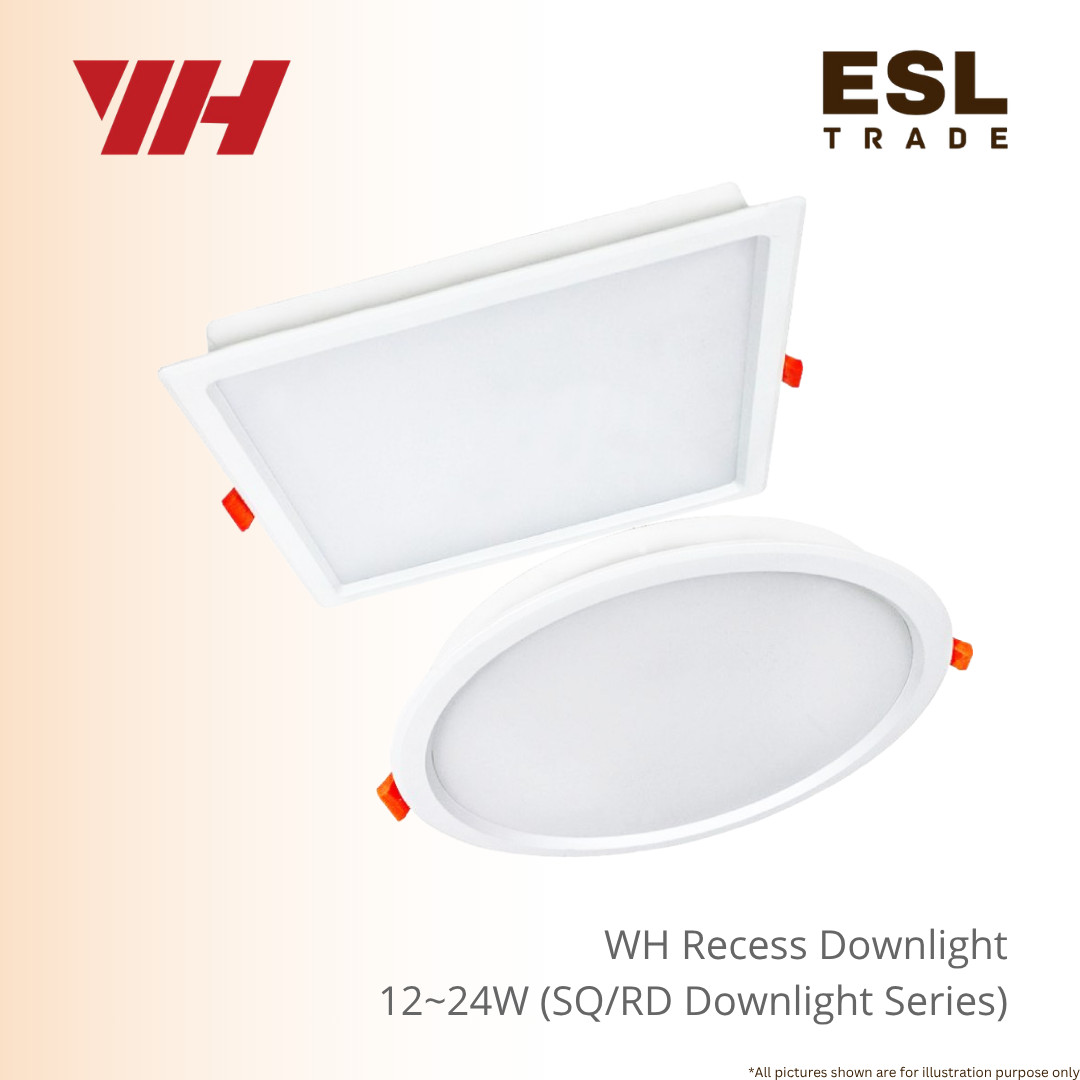

WIN Recessed Downlight (12W / 18W / 24W) Round & Square White Casing Ceiling Light (4″ / 6″ / 8″) Excellent for Ultra Efficient Brightness
The WIN Recessed Downlight Series offers a sleek, flush-mount lighting solution designed specifically for plaster board, drywall, and false ceiling installations.
Featuring a clean White casing finish in both Round and Square shape options, these slim ceiling fixtures blend seamlessly into modern residential homes, corporate offices, retail stores, and commercial developments.
Engineered with a versatile AC85–265V wide voltage driver, the WIN Recessed Downlight maintains stable illumination and consistent brightness even in areas prone to minor power fluctuations.
The product line is available in three primary wattage and size configurations to match varying ceiling cutout dimensions and room lighting requirements:
-
12W Model (4 Inch): Designed for standard $120\text{–}125\text{ mm}$ cutout holes, delivering focused illumination ideal for corridors, balconies, walk-in closets, and small bathrooms.
-
18W Model (6 Inch): Designed for $145\text{–}155\text{ mm}$ cutout holes, offering a balanced brightness output suitable for bedrooms, kitchens, dining spaces, and general office desks.
-
24W Model (8 Inch): Designed for $200\text{–}210\text{ mm}$ cutout holes, producing high-lumen coverage for spacious living rooms, retail showrooms, hotel lobbies, and main hall areas.
To help achieve the desired ambiance for any interior space, each wattage and shape variant comes in three Color Temperatures (CCT):
-
3000K Warm White for a cozy, relaxing environment in residential living areas and bedrooms.
-
4000K Neutral White for clear, comfortable task illumination in kitchens, study areas, and office spaces.
-
6500K Daylight for crisp, high-visibility lighting in commercial displays, hallways, and utility zones.
Product Detail
| Technical Specification / Feature | Product Details |
| Brand |
WIN |
| Product Category |
Recessed Downlight |
| Shape Options |
Square (SQ) / Round (RD) |
| Casing Finish |
White |
| Input Voltage |
AC 85V – 265V (Wide Voltage Driver) |
| Wattage Options |
12 W / 18 W / 24 W |
| Fixture Dimensions |
4 Inch / 6 Inch / 8 Inch |
| Open Hole / Cutout Dimensions |
• 4 Inch (12W): 120–125 mm Diameter
• 6 Inch (18W): 145–155mm Diameter
• 8 Inch (24W): 200–210mm Diameter |
| Color Temperature Options (CCT) |
3000K (Warm White) / 4000K (Neutral White) / 6500K (Daylight) |
| Mounting Type |
Recessed / Flush Mount (For Plaster Board & False Ceilings) |
Frequently Asked Questions (FAQ)
Q1: What are the ceiling cutout (open hole) sizes required for each model?
A : The required ceiling cutout diameters are:
-
4 Inch (12W): 120–125mm diameter
-
6 Inch (18W): 145–155mm diameter
-
8 Inch (24W): 20–210mm diameter
Q2: What shape and casing color options are available in this series?
A : The WIN Recessed Downlight comes in both Round and Square shapes with a classic White casing finish.
Q3: Can these downlights handle voltage fluctuations?
A : Yes, they feature a wide AC 85V–265V input voltage driver, which helps ensure stable light performance during minor voltage variations.
Q4: Which color temperatures can I choose from?
A : You can choose between 3000K Warm White, 4000K Neutral White, and 6500K Daylight.
Q5: Are these downlights suitable for concrete ceilings?
A : Recessed downlights require a ceiling cavity for the cutout and body to sit inside. For solid concrete ceilings without a false ceiling layer, a surface-mounted downlight model is recommended instead
