Description

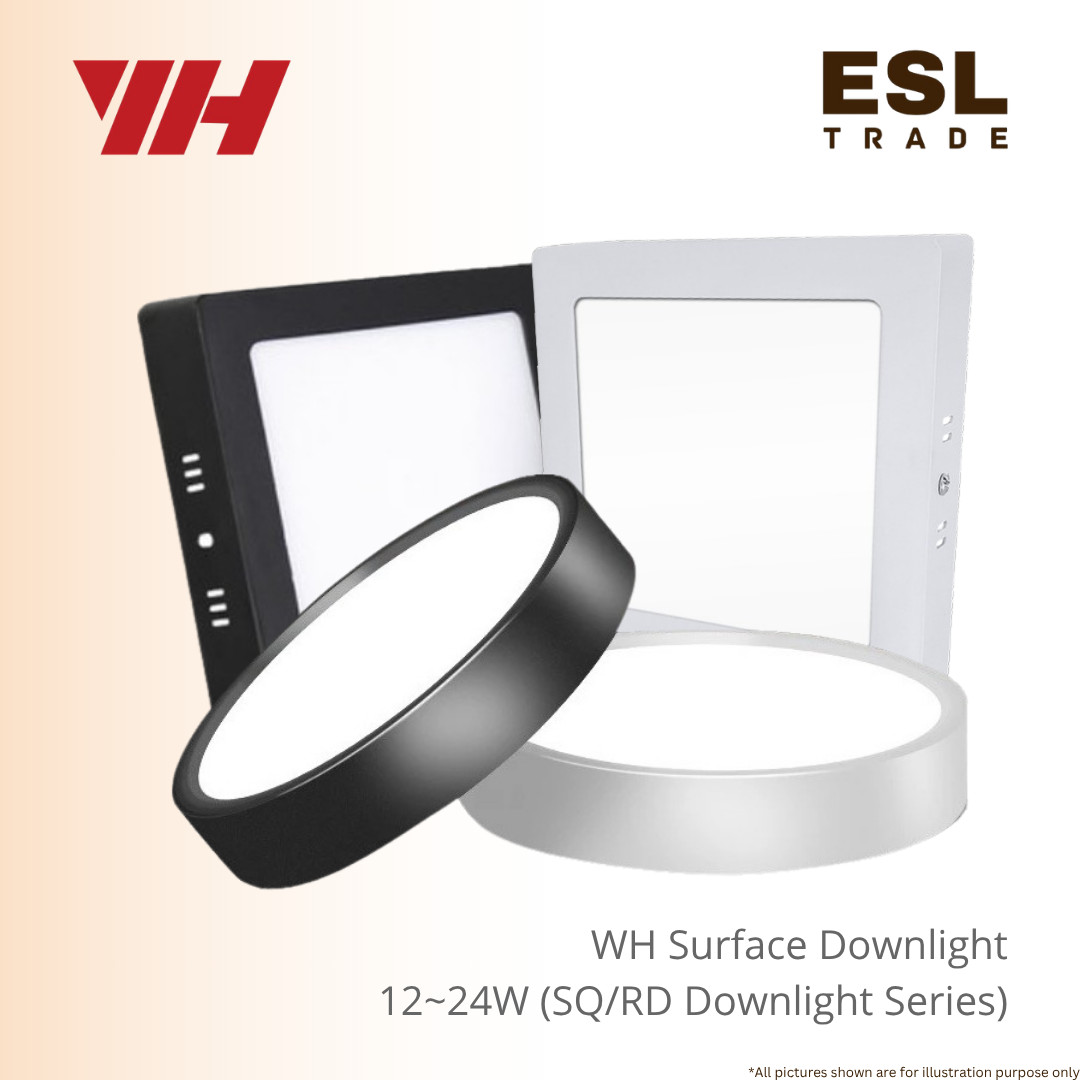

WIN Surface Downlight (12W / 18W / 24W) Round & Square Black/White Casing Excellent for Modern Ceiling Light & Energy Saving.
The WIN Surface Downlight Series delivers modern, surface-mounted ceiling illumination designed for spaces without false ceiling cutouts.
Constructed with clean round and square frame profiles in stylish Black or White casing finishes, these fixtures bring a minimalist, modern aesthetic to residential living rooms, bedrooms, commercial corridors, and office interiors.
Operating on standard AC 220V–240V main voltage, the WIN Surface Downlight series is built with a high luminous efficacy of 100 Lumens per Watt (100LM/W).
This energy-efficient performance ensures bright, well-diffused light output while helping reduce overall energy consumption.
The range is offered across three distinct power and dimension combinations to suit various ceiling heights and room sizes:
-
12W Model (6 Inch): Generates 1,200 lumens, making it ideal for compact spaces, hallways, small balconies, and kitchen task areas.
-
18W Model (8 Inch): Generates 1,800 lumens, perfect for standard bedrooms, dining areas, study rooms, and medium-sized offices.
-
24W Model (12 Inch): Generates 2,400 lumens, providing high-output illumination for large living rooms, commercial reception areas, and retail showrooms.
To support diverse interior design themes and functional requirements, every size and shape is available in three Color Temperatures (CCT):
-
3000K Warm White for a cozy, inviting atmosphere in residential living spaces.
-
4000K Neutral White for clear, comfortable task lighting in kitchens and workspaces.
-
6500K Daylight for crisp, vibrant illumination in office environments and commercial displays.
Product Detail
| Technical Specification / Feature | Product Details |
| Brand |
WIN |
| Product Category |
Surface Downlight |
| Shape Options |
Square (SQ) / Round (RD) |
| Casing Colors Available |
White / Black |
| Voltage Input |
AC 220V – 240V |
| Luminous Efficacy |
100 LM/W |
| Wattage & Size Options |
• 12W: 6 Inch (1,200 Lumens)
• 18W: 8 Inch (1,800 Lumens)
• 24W: 12 Inch (2,400 Lumens) |
| Color Temperature Options (CCT) |
3000K (Warm White) / 4000K (Neutral White) / 6500K (Daylight) |
| Mounting Type |
Surface Mounted (Direct Concrete / Wood / Gypsum Mounting) |
Frequently Asked Questions (FAQ)
Q1: Do I need a ceiling cutout hole to install the WIN Surface Downlight?
A : No, surface downlights are designed to be mounted directly onto flat concrete slabs, wooden beams, or plaster ceilings without needing a cutout hole.
Q2: What shape and casing color options are available?
A : This series offers both Square and Round shapes, with a choice of Black or White casing frames.
Q3: What sizes and wattages can I choose from?
A : The WIN Surface Downlight comes in three size/wattage combinations: 6 Inch (12W), 8 Inch (18W), and 12 Inch (24W).
Q4: How bright is the light output for each wattage?
A : With a high efficacy rating of 100 LM/W, the 12W model produces 1,200 lumens, the 18W model produces 1,800 lumens, and the 24W model produces 2,400 lumens.
Q5: Which color temperatures are available for this surface downlight?
A : You can choose between 3000K Warm White, 4000K Neutral White, and 6500K Daylight to suit your space’s ambiance.
