Description

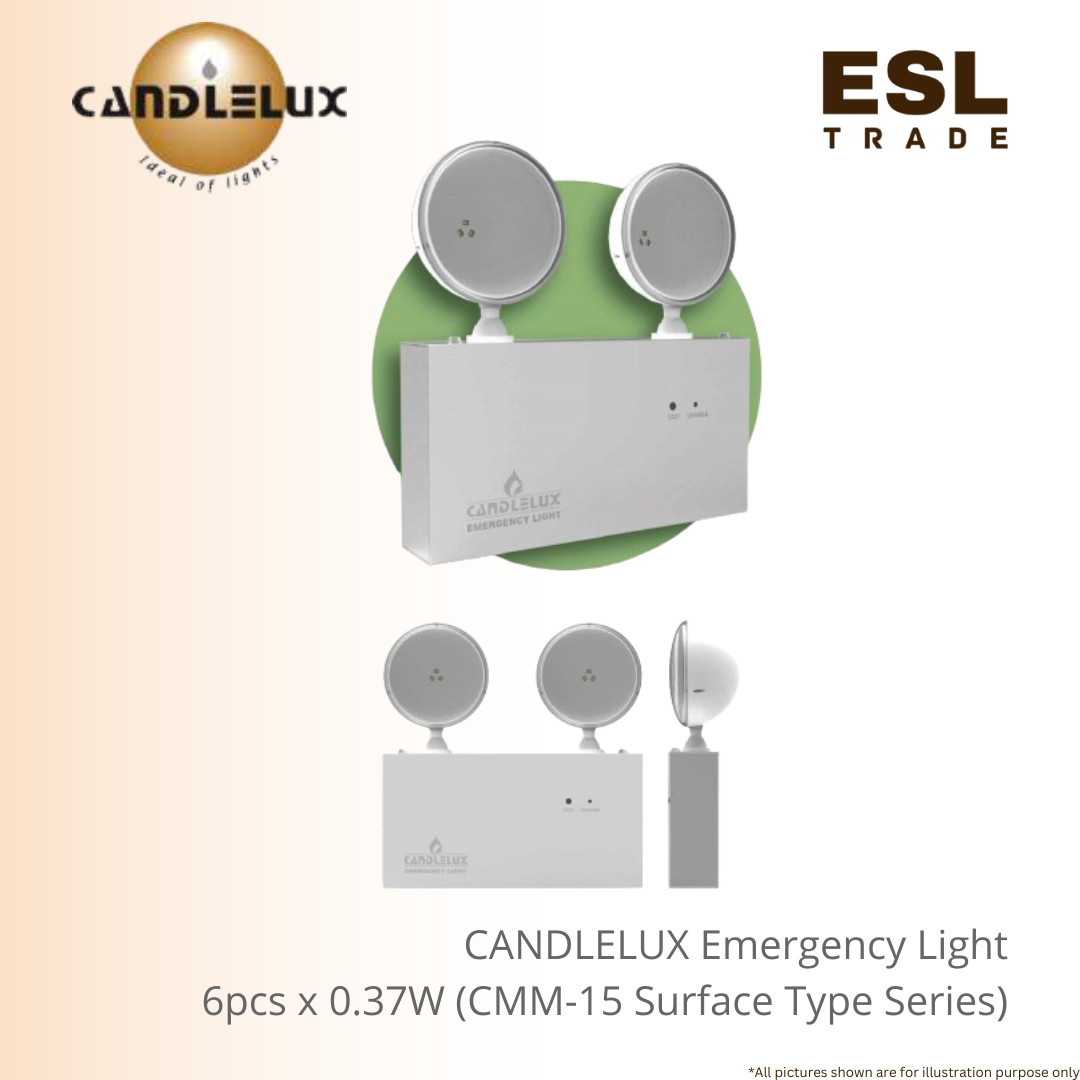

Candlelux CMM-15 High Energy Efficiency LED Emergency Light 3-Hour Backup Surface Type Excellent Certified & Reliable
Ensure maximum safety and structural compliance during sudden power failures with the Candlelux CMM-15 Surface Type High Energy Efficiency & Saving Emergency Light.
Built to deliver high-performance lighting during critical building evacuations, this self-contained twin-head luminaire is an indispensable addition to commercial complexes, manufacturing plants, retail units, warehouses, and corporate offices.
Operating on a professional non-maintained mode, the fixture remains in standby while grid power is stable and instantly activates its twin lighting heads the moment a primary electrical blackout occurs.
The CMM-15 features a reliable, long-lasting light source consisting of 2 heads $\times$ 10 Pcs $\times$ 0.1W LED chips, generating intense, direct illumination along pathways and exit zones.
This system is driven by a highly sustainable 3.2V 1500mAh (4.8Wh) Lithium-ion battery pack, designed to supply a steady 3-hour backup duration during emergencies.
Engineered for harsh commercial spaces, the chassis features an electro-galvanized box paired with a fire-retardant high-impact polycarbonate housing and adjustable twin heads.
It runs optimally within an ambient temperature environment spanning 0°C to 60°C and weighs ±1.10kg, offering a compact footprint with its 260mm wide framework.
Regulatory fire code approvals are fully taken care of with this robust design.
The Candlelux CMM-15 is certified by SIRIM QAS International Sdn. Bhd. and fully approved by Jabatan Bomba dan Penyelamat Malaysia.
It satisfies all requirements of Malaysian Standards MS-983:2004, MS-619-2-22:2005, and MS IEC 60598-1:2012 while offering an IP20 protection level.
Routine maintenance checks are made effortless via a red LED indicator that highlights active charging mode, alongside an accessible manual test switch to simulate power grid failures.
Backed by a comprehensive 5-year warranty on electronic components and a 1-year warranty on the battery, it represents a highly cost-efficient and life-saving safety investment
Product Details
- Brand & Model : Candlelux EL & KS CMM-15 SURFACE TYPE
- Product Category : High Energy Efficiency & Saving Emergency Light
- Mode of Operation : Non-Maintained
- Input Voltage : 240V± 10%, 50/60Hz
- Lamp Type : 2 heads x 10 Pcs x 0.1W LED
- Battery Specifications : 3.2V, 1500mAh, 4.8Wh Environment Friendly Lithium-ion Battery
- Backup Duration : 3 Hours
- Charger Type : Constant Current
- Operating Temperature : 0°C to 60°C
- Status Indication : Red LED “On” (Charging Mode) / Push Test-Switch (Simulate Power Failure)
- Fitting Construction : Electro-Galvanized Box, Fire-Retardant High Impact Polycarbonate Housing
- Dimensions (L x W x H) : 260mm x 58mm x 247mm (Base H: 147mm + Twin Head H: 100mm)
- Dimension Tolerance : ±0.03 mm}
- Weight : ±1.10 kg
- IP Rating : IP20
- Certified Compliance : Malaysia Standards MS-983:2004, MS-619-2-22:2005, MS IEC 60598-1:2012
- Approved By : SIRIM QAS International Sdn. Bhd. & Jabatan Bomba dan Penyelamat Malaysia
- Application Type : Surface Ceiling or Wall Mounting
Common FAQs for Candlelux EL & KS CMM-15 SURFACE TYPE
Q1: What does “Non-Maintained” mode mean for the Candlelux CMM-15?
A: A non-maintained emergency light stays turned off during regular daily building operations while drawing main grid power solely to keep its battery fully charged. The twin LED heads will only illuminate automatically when the main electrical power line completely cuts out or suffers a blackout.
Q2: Are the twin lighting heads on the CMM-15 adjustable?
A: Yes, the twin round lighting heads are mounted on directional stems. This allows installation teams to tilt and angle the light throw toward specific exit pathways, doors, or high-risk areas to optimize illumination coverage.
Q3: Is this emergency light certified for project handover inspections in Malaysia?
A: Yes, 100%. The Candlelux CMM-15 carries official certifications from SIRIM QAS International and full authorization from Jabatan Bomba dan Penyelamat Malaysia. It strictly satisfies all regulations outlined in MS-983:2004, MS-619-2-22:2005, and MS IEC 60598-1:2012.
Q4: What kind of battery technology does this unit utilize?
A: This model utilizes an environmentally friendly 3.2V 1500mAh (4.8Wh) Lithium-ion battery. Lithium-ion technology offers great energy-saving efficiency, stable discharge times, and represents a much greener alternative compared to traditional battery elements.
Q5: How can building maintenance staff safely test the charging function?
A: The unit features a Red LED indicator that stays lit during standard operation to confirm that the internal battery is charging correctly. A built-in manual Push Test-Switch is also integrated into the chassis, allowing you to quickly simulate a power breakdown to ensure both LED heads illuminate properly
