Description

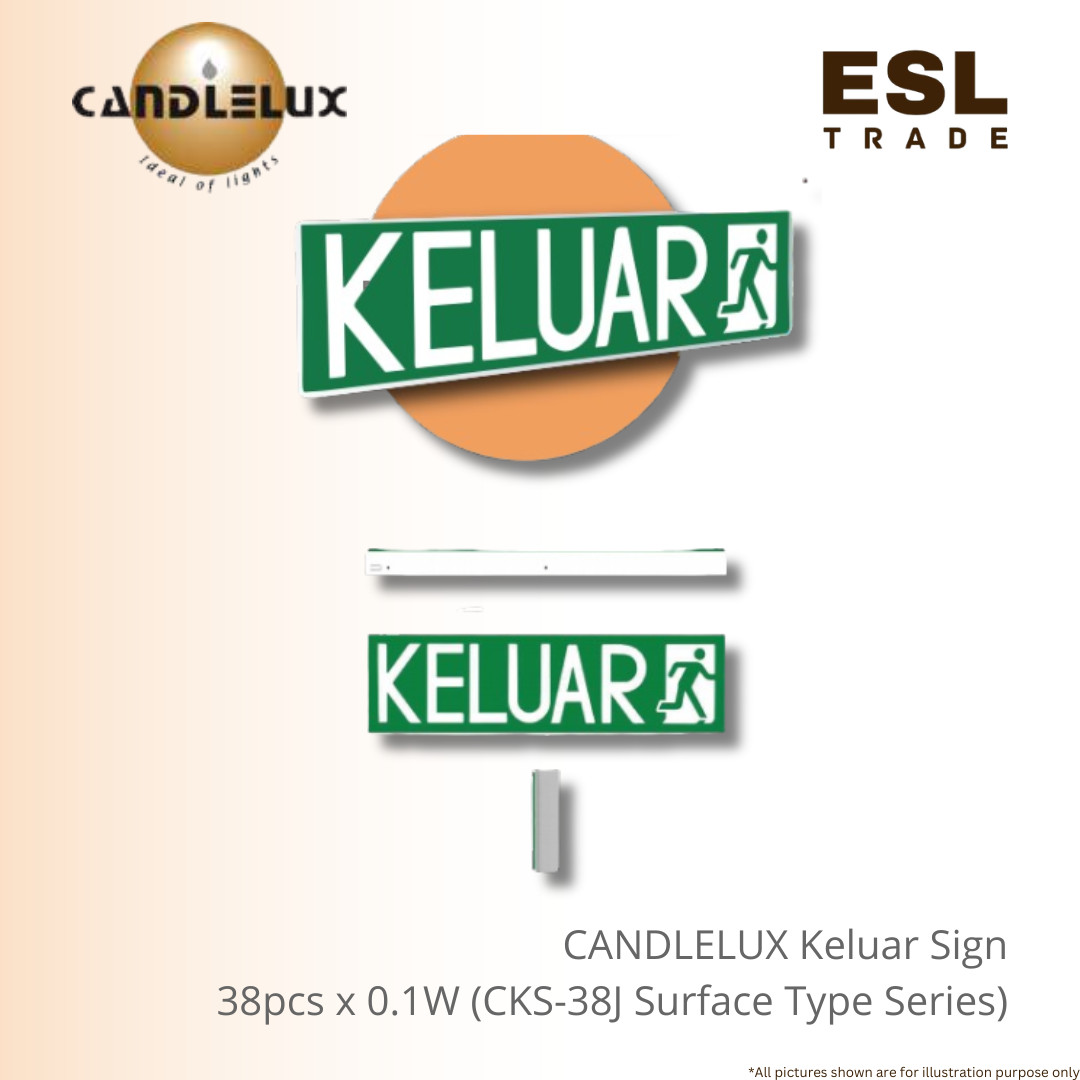

Candlelux CKS-38J LED Keluar Sign 3-Hour Backup Surface Type Casing Excellent Certified & Essential
Ensure absolute building compliance and guarantee maximum visibility during critical evacuations with the Candlelux CKS-38J Surface Type LED Self-Contained Emergency Keluar Sign.
Expertly built for energy efficiency and long-term saving, this emergency signage luminaire is a core addition to corporate towers, commercial complexes, retail units, and public infrastructure spaces.
Operating on a dedicated maintained mode, the sign board stays continuously lit during normal everyday grid operation to offer clear guidance, instantly transitioning to its internal battery pack during sudden electrical failures.
The safety luminaire is equipped with a high-performance light source consisting of 36pcs x 0.05W LED lamps, outputting crisp, even illumination through its professional lettering graphics.
Empowering this hardware is an environmentally friendly 3.2V 1500mAh (4.8Wh) Lithium-ion battery system, engineered to deliver a solid 3-hour backup duration during building blackouts.
Built to withstand demanding commercial use, the fitting construction utilizes an injection-molded, fire-retardant polycarbonate housing that works smoothly across ambient temperatures from 0°C up to 60°C.
Weighing a manageable ±0.65kg, its clean architectural profile allows straightforward surface mounting on walls or structural headers.
Legal compliance and building handovers are fully secure with this robust layout.
The Candlelux CKS-38J is certified by SIRIM QAS International Sdn. Bhd. and approved by Jabatan Bomba dan Penyelamat Malaysia, fully meeting the structural and technical conditions of Malaysia Standards MS-983:2004, MS-619-2-22:2005, and MS IEC 60598-1:2012 alongside an IP20 rating.
Routine diagnostic tests are simplified via a red LED indicator that highlights active charging mode, paired with a manual push-test switch to instantly simulate a power grid failure.
Backed by a 5-year warranty on components and a 1-year warranty on the battery, this Keluar sign offers premium reliability and exceptional peace of mind.
Product Details
- Brand & Model : Candlelux EL & KS CKS-38J SURFACE TYPE
- Product Category : LED Self-Contained Emergency Keluar Sign
- Mode of Operation : Maintained
- Input Voltage : 240V± 10%, 50/60Hz
- Lamp Type : 36pcs x 0.05W LED
- Battery Type : 3.2V, 1500mAh, 4.8Wh Environment Friendly Lithium-ion Battery
- Backup Duration : 3 Hours
- Charger Type : Constant Current
- Operating Temperature : 0°C to 60°C
- Status Indication : Red LED “On” (Charging Mode) / Push Test-Switch (Simulate Power Failure)
- Fitting Construction : Injection-Moulded Fire-Retardant Polycarbonate Casing
- Weight : ±0.65kg
- IP Rating : IP20
- Certified Compliance : Malaysia Standards MS-983:2004, MS-619-2-22:2005, MS IEC 60598-1:2012
- Approved By : SIRIM QAS International Sdn. Bhd. & Jabatan Bomba dan Penyelamat Malaysia
- Warranty : Component: 5 Years / Battery: 1 Year (Terms & Conditions Apply)
- Application Type : Surface Mounting
Common FAQs for Candlelux EL & KS CKS-38J SURFACE TYPE
Q1: What does “Maintained” operation mean for the Candlelux CKS-38J exit light?
A: Maintained operation means that the “KELUAR” sign stays permanently illuminated under normal building power conditions to act as a standard directional exit marker. If a sudden blackout or power outage occurs, the sign draws immediately from its internal battery backup to remain fully lit.
Q2: What are the primary benefits of the Lithium-ion battery pack used in this model?
A: The CKS-38J features an eco-friendly 3.2V 1500mAh (4.8Wh) Lithium-ion battery. Lithium-ion batteries provide efficient energy distribution during emergencies, reliable lifecycle handling, and present a cleaner, more environmentally conscious chemical alternative compared to standard old-generation batteries.
Q3: Can this exit sign pass official Malaysian building handovers and Bomba checks?
A: Yes, entirely. The Candlelux CKS-38J is certified by SIRIM QAS International and holds full approval from Jabatan Bomba dan Penyelamat Malaysia. It strictly complies with Malaysia Standards MS-983:2004, MS-619-2-22:2005, and MS IEC 60598-1:2012.
Q4: How do building safety teams perform routine testing on the CKS-38J framework?
A: The casing is designed with a red status indicator light and a manual Push Test-Switch. Under normal grid power, the Red LED stays illuminated to confirm the battery is actively charging. Pressing the manual button breaks the main supply line to simulate a localized power failure, allowing you to instantly double-check the 36-LED illumination output.
Q5: What is the warranty breakdown for this product line?
A: The manufacturer provides reliable warranty protection: a 5-year warranty covering the core internal electrical components and a 1-year warranty on the Lithium-ion battery pack (terms and conditions apply).
