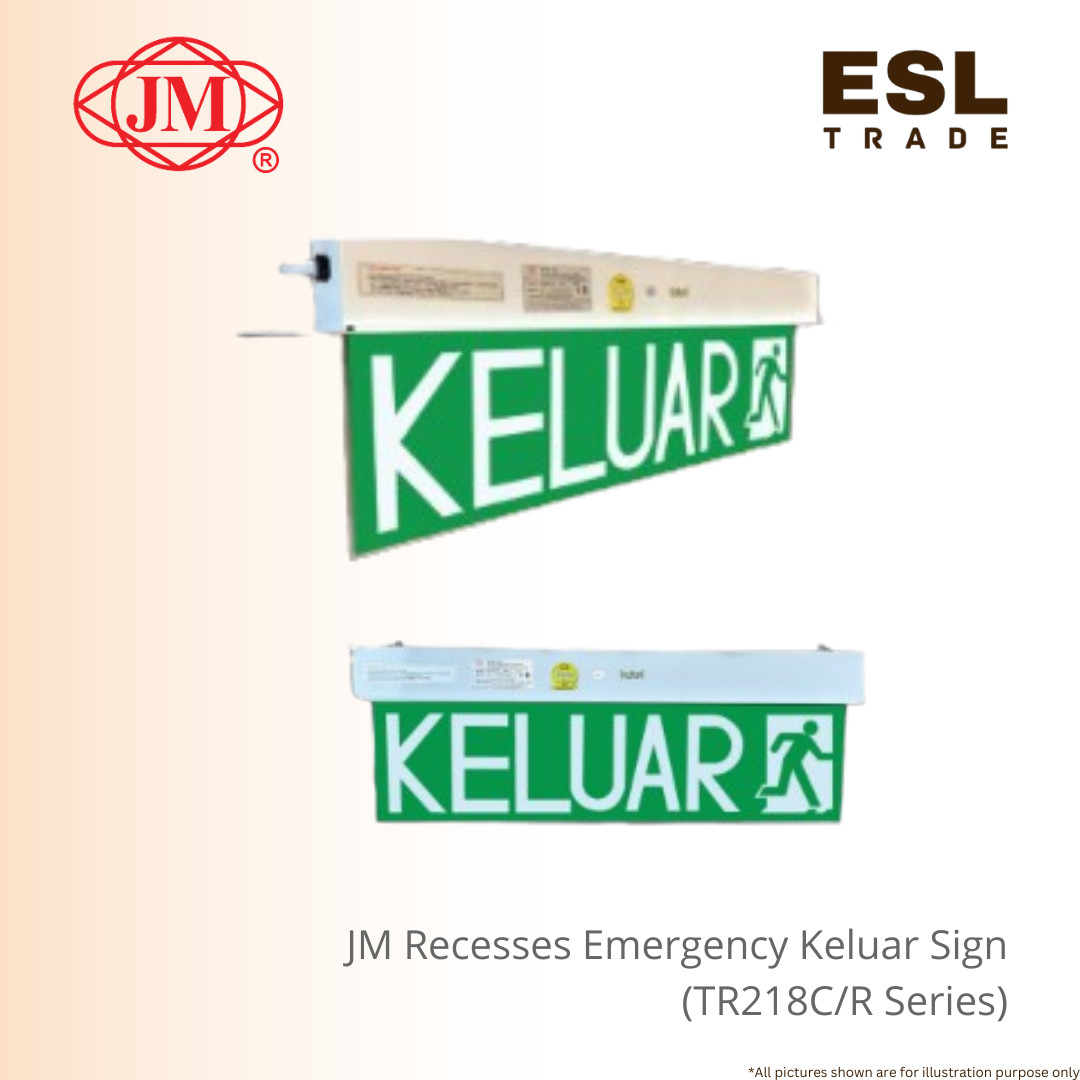

JM Recess Emergency Keluar Sign TR218C/R Maintained SMD LED Ceiling Recessed Commercial Premier
Ensure full life-safety compliance and seamless architectural integration with the JM Recess Emergency Keluar Sign (TR218C/R).
Purpose-built for commercial shopping malls, hospitals, office towers, and public institutions, this recessed exit sign provides clear, high-visibility guidance during normal building operations and unexpected emergency power outages.
Operating in a continuous Maintained mode, the TR218C/R features an energy-efficient array of 16 x 0.2W SMD LEDs that illuminate consistently whether AC mains power is active or offline.
The system operates on standard 240V ±10% 50Hz input voltage with low power consumption under 6.3VA.
During a power loss, a high-performance Sealed Nickel-Cadmium Battery instantly takes over, providing reliable illumination for more than 3 hours.
Built-in low voltage cut-off protection safeguards the battery against over-discharge, prolonging its overall service life. A bright red LED indicator gives clear visual confirmation of active battery charging.
Constructed with a heavy-duty metal casing finished in protective epoxy powder coating, the unit features a ceiling/wall recessed profile (620mm L x 82mm W) designed to sit flush for a refined modern aesthetic.
Available in both Single-Sided (TR218C/R) and Double-Sided (TR218C/RD) pictogram configurations, it accommodates varied exit route directions.
Fully certified under MS 983:2004, MS 619-2-22:2012, and MS IEC 60598-1:2012 standards, the sign holds full SIRIM licensing, BOMBA Fire Department approval, and approval by the Chief Electrical Inspector of Malaysia, fully complying with Uniform Building By-Law Regulations.
Supported by a 1-year manufacturer warranty, this recessed exit light offers long-term reliability for demanding building requirements.
Product Details
- Brand : JM
- Model Number : TR218C/R
- Product Category : Recess Emergency Keluar Sign / Exit Sign
- Mode of Operation : Maintained
- Input Voltage : 240V ±10%, 50Hz
- Power Consumption : < 6.3VA
- Lamp Type / Light Source : SMD LED (16 x 0.2W SMD LED)
- Lamp Status (Mains ON / OFF) : 16 x 0.2W SMD LED / 16 x 0.2W SMD LED
- Battery Type : Rechargeable Sealed Nickel-Cadmium Battery
- Rated Emergency Duration : > 3 Hours
- Housing & Finish : Metal Casing Finished in Epoxy Powder Coating
- Charging Monitor : Red LED Indicator (Indicates Battery Charging)
- Projection / IP Rating : IP20
- Safety Feature : Low Voltage Cut-off to Prevent Battery Over Discharge
- Mounting Type : Wall or Ceiling Recessed Mounting
- Certified Compliance : MS 983:2004 | MS 619-2-22:2012 | MS IEC 60598-1:2012 | BOMBA Approved
- Warranty : 1 Year from Date of Delivery
- Main Sign Dimensions : 538 mm (L) x 198 mm (W) x 125 mm (H)
- Recess Cutout / Recess Box D1 : 540 mm (L) x 40 mm (W) x 55 mm (H)
- Recess Outer Flange D2 : 620 mm (L) x 82 mm (W)
- Product Net Weight : 1.3 kg
- Inner / Outer Box Sizes : Inner: 625 x 205 x 82 mm | Outer: 640 x 43 x 22 mm
- Pictogram Options : Single Sided & Double Sided (TR218C/R & TR218C/RD variants)
Common Product FAQs
Q: Is the BSLight TR218C/R certified for Malaysian building codes and fire safety?
A: Yes. It is BOMBA Approved, quality assured by full SIRIM License, approved by the Chief Electrical Inspector of Malaysia, and complies fully with Uniform Building By-Law Regulations as well as standards MS 983:2004, MS 619-2-22:2012, and MS IEC 60598-1:2012.
Q: What is the difference between Maintained mode and Non-Maintained mode?
A: The TR218C/R operates in Maintained mode, meaning the LEDs stay continuously illuminated under normal mains power and automatically switch to battery operation during a power outage.
Q: How long will the exit light stay lit during a power outage?
A: It provides a rated emergency illumination duration of over 3 hours (>3 Hours) powered by its internal Sealed Nickel-Cadmium battery.
Q: What mounting method does the TR218C/R require?
A: The TR218C/R is designed for recessed wall or ceiling mounting into ceiling soffits or drywall enclosures.
Q: Does the fixture prevent battery damage from total discharge?
A: Yes, it features a built-in Low Voltage Cut-off safety protection system that automatically cuts power off before the battery completely drains, preventing permanent damage.
