Description

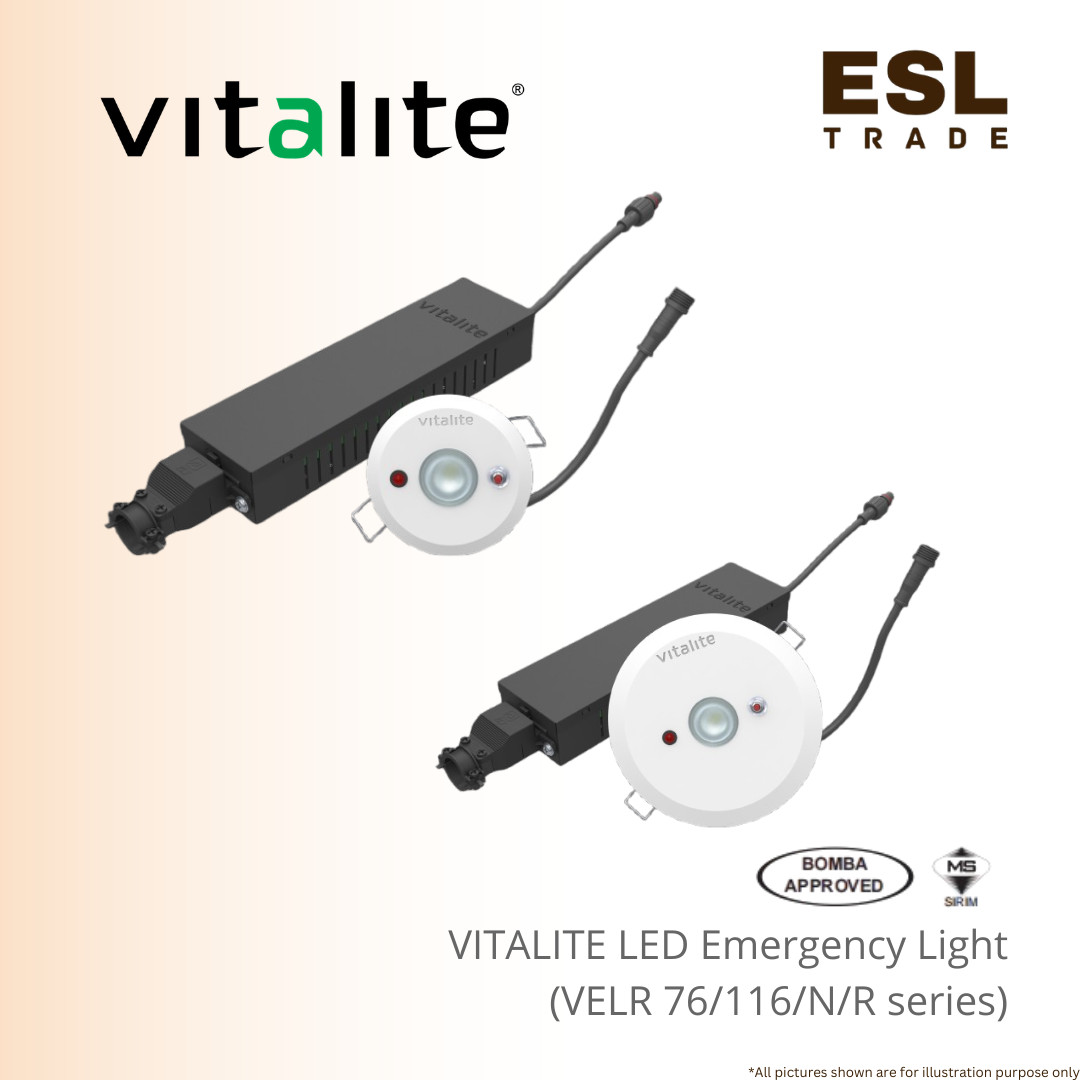

VITALITE LED Emergency Light VELR 76/N/R VELR 116/N/R Non-Maintained Round Recessed Plaster Ceiling Type Hole Cut D67mm D100mm SIRIM BOMBA Approved Certified
Ensure uncompromised safety and full regulatory compliance in your commercial or residential property with the professional VITALITE LED Emergency Light Series (VELR 76/N/R & VELR 116/N/R), detailed in the official Data Sheet – VELR 76 N R & 116 N R – 12092025 (SIRIM).
Expertly manufactured by VITALITE INDUSTRY SDN. BHD., this high-end round recessed type emergency fixture features a durable metal rim with a clean white texture finish alongside a high-transmittance polycarbonate frosted diffuser dome.
Engineered specifically for recessed plaster ceiling installation, it utilizes high-strength stainless steel spring clips to mount flush against the surface, ensuring a clean, minimalist structural footprint that blends flawlessly with modern architectural spaces.
A major technical advantage of this premium series is its exceptional build separation and safety architecture.
Each light unit is paired with a separate mild steel gear box coated in a protective black finish, housing the critical electrical components away from ambient air.
Running efficiently on an input voltage of 220V–240V at 50/60Hz with a balanced 0.72 Power Factor (0.72 PF), the unit draws a highly economical 1.5W rating.
The system operates in a Non-Maintained mode and is powered by a single high-output LED 5050 chip, pushing out a rated 170 Lumens (170 lm) of crisp emergency illumination.
To provide ultimate reliability during critical power failures, the circuit integrates a next-generation LiFePO4 3.2V/2.0Ah/18650 battery that delivers a guaranteed 3-hour emergency duration after a 15-hour recharge cycle.
Fully tested and certified by SIRIM QAS INTERNATIONAL SDN. BHD. and JABATAN BOMBA DAN PENYELAMAT MALAYSIA to comply with stringent MS 619-2-22:2005 and MS IEC 60598-1:2012 industry standards, this series is the ultimate low-maintenance emergency lighting solution for office buildings, retail malls, high-rise apartments, and public corridors.
Product Details :
| Technical Parameter | VELR 76/N/R Configuration | VELR 116/N/R Configuration |
| Brand Name |
Vitalite |
Vitalite |
| Luminaire Design Type |
LED Emergency Light – Round Recessed Type |
LED Emergency Light – Round Recessed Type |
| Mode of Operation |
Non-Maintained |
Non-Maintained |
| Mains Supply Input |
220-240V, 50/60Hz |
220-240V, 50/60Hz |
| Power Consumption / PF |
0.01A / 1.5W / 0.72 PF |
0.01A / 1.5W / 0.72 PF |
| Light Source (Lamp Type) |
LED 5050 (1 PC) |
LED 5050 (1 PC) |
| Rated Luminous Flux |
170 Lumens (170 lm) |
170 Lumens (170 lm) |
| Battery Specifications |
LiFePO4 3.2V / 2.0Ah / 18650 |
LiFePO4 3.2V / 2.0Ah / 18650 |
| Emergency Backup Duration |
3 Hours |
3 Hours |
| Battery Recharge Period |
15 Hours |
15 Hours |
| Protection Degree / Class |
Class I / IP 20 |
Class I / IP 20 |
| Max. Operating Temp ($t_a$) |
40°C
|
40°C
|
| Recessed Ceiling Hole Cut |
D67mm Diameter |
D100mm Diameter |
| Fixture Outer Diameter (D) |
D75mm |
D115mm |
| Fixture Embedded Height |
39mm |
39mm |
| Gear Box Dimensions |
L200 x W55 x H35 mm |
L200 x W55 x H35 mm |
| Net Product Weight |
0.39 KG (VELR 76/R Variant) |
0.44 KG (VELR 116/R Variant) |
| Material Construction |
Metal Rim (White Texture), Polycarbonate Cover, Polycarbonate Frosted Diffuser |
Metal Rim (White Texture), Polycarbonate Cover, Polycarbonate Frosted Diffuser |
| Gear Box Enclosure |
Separate Mild Steel Gear Box (Black) |
Separate Mild Steel Gear Box (Black) |
| Mounting Components |
Stainless Steel Spring Clips |
Stainless Steel Spring Clips |
| Recommended Mounting Height |
Minimum 3 Meters (Min. 3m) |
Minimum 3 Meters (Min. 3m) |
| Testing Standards Compliance |
MS 619-2-22:2005 | MS IEC 60598-1:2012 |
MS 619-2-22:2005 | MS IEC 60598-1:2012 |
| Official Certifications |
SIRIM QAS International Sdn. Bhd. | Jabatan Bomba Dan Penyelamat Malaysia |
SIRIM QAS International Sdn. Bhd. | Jabatan Bomba Dan Penyelamat Malaysia |
