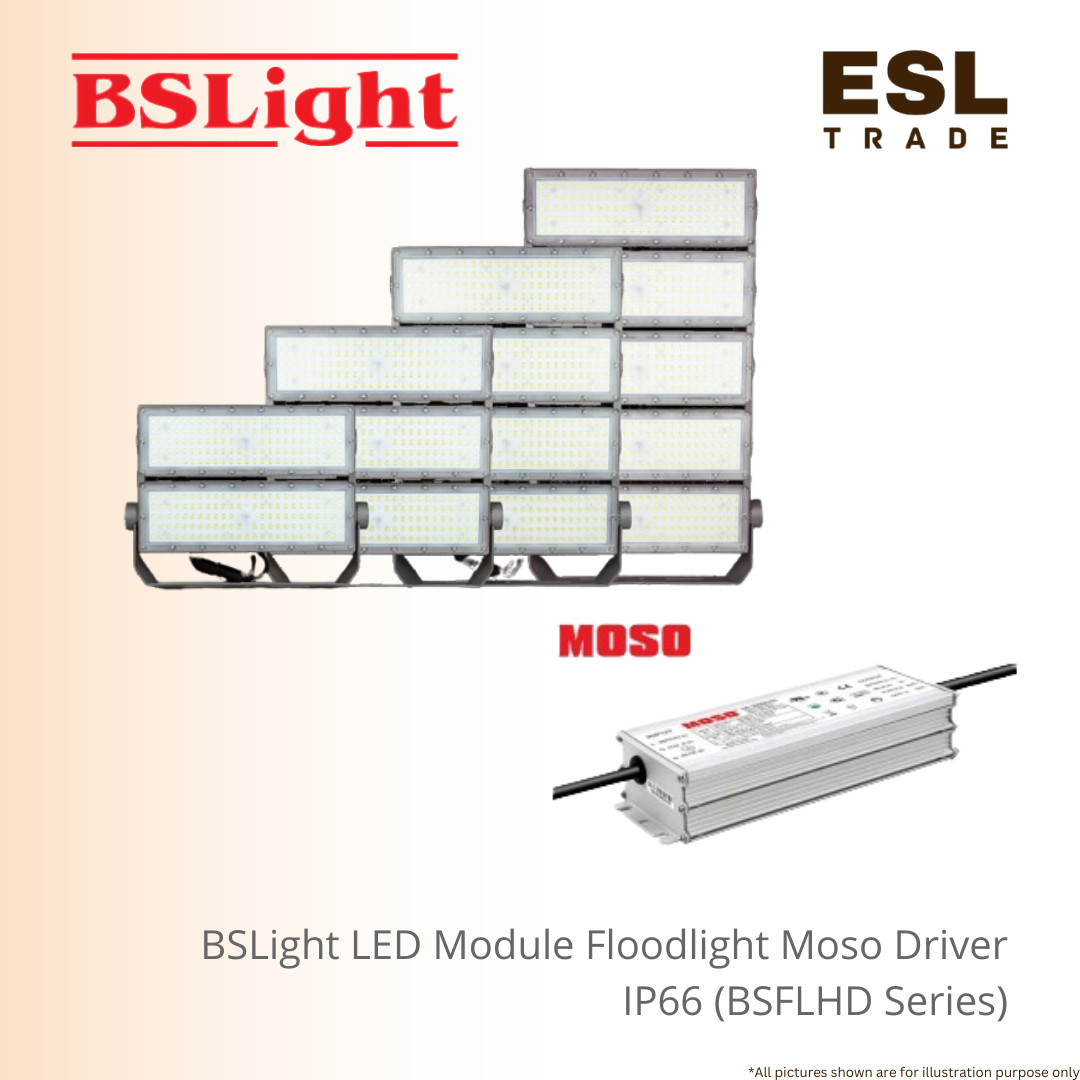

BSLight Eco Series LED Module Floodlight IP66 IK08 Rated Heavy Duty Outdoor Area Lighting (200W / 300W / 400W / 500W) Unmatched Reliability

Description

BSLight Eco Series LED Module Floodlight IP66 IK08 Rated Heavy Duty Outdoor Area Lighting (200W / 300W / 400W / 500W) Unmatched Reliability

Transform your large-scale illumination architecture with the ultra-rugged BSLight Eco Series LED Module Floodlight.

Engineered specifically for heavy-duty commercial, industrial, and residential zone deployments, this modular luminaire is the definitive choice for parking areas, stadiums, courtyards, storefronts, transit stations, wharves, bridges, and warehouse perimeters.

Crafted with a solid aluminum die-casting housing and a high-impact polycarbonate material diffuser, it easily withstands harsh outdoor elements while maintaining premier heat dissipation performance.

At the center of the Eco Series’ superior performance is the integrated MOSO LED Driver, globally celebrated for its high energy efficiency and industrial reliability.

To defend against volatile outdoor power grids and lightning strikes, the luminaire comes armed with high-grade surge protection, delivering Differential Mode (DM):

• 6KV and Common Mode (CM): 6KV protection alongside an integrated 10KV surge protector.

Its heavy-duty engineering is further complemented by an anti-corrosion, rustproof aluminum bracket that supports flexible mounting configurations, including wall-mounted, sitting, ceiling, and street-style installations.

Operating on a wide input voltage of AC100-277V (50/60Hz), this module floodlight achieves an excellent power factor of 0.95 and an optimized systemic efficiency of 110lm/W.

The system utilizes premium high-brightness SMD LED chips rated for an expansive 40,000-hour operational lifespan, minimizing maintenance cycles and facility overhead.

Projecting a standard 90° beam angle with a Color Rendering Index of CRI >70, it brings crisp visibility to dark environments.

One of its most powerful assets is its free combination design, enabling a base 200W profile to easily scale up.

Choose from high-lumen outputs ranging from 200W (22,000 LM), 300W (33,000 LM), 400W (44,000 LM), up to a massive 550W (55,000 LM) structure to handle extreme vertical lighting requirements

Product Details

• Brand & Product Series : BSLight LED Module Floodlight <<ECO SERIES>>
• Integrated LED Driver : Highly Reliable & Efficient MOSO LED Driver
• Surge Protection Ratings : Integrated 10KV Surge Protector | DM: 6KV, CM: 6KV
• Chassis Construction : Solid Aluminium Die-Casting Housing | Polycarbonate Diffuser
• Bracket Assembly : Heavy-duty Aluminium Bracket (Anti-Corrosion & Rustproof)
• Ingress & Impact Protection : IP66 (Waterproof/Dust-tight) | IK08 (High Mechanical Impact Proof)
• Systemic Luminous Efficacy : High Energy Efficiency Design at 110lm/W
• Operational Lifespan : High Brightness & Long Life LED Chips (40,000 Hours)
• Input AC Voltage & Freq. : AC 100 – 277V | 50/60Hz Wide Range Capability
• Power Factor (PF) / CRI : PF: 0.95 | Color Rendering Index: CRI > 70
• Beam Angle Spread : 90° Standard Precision Industrial Projector Beam
• Operating Temperature : -20°C ~ 50°C Ambient Working Envelope
• Flexible Mounting Modes : Wall Mounted, Sitting Mode, Ceiling Type, Street Style
• Scalable Architecture : Free Combination Design: Modular capability to upgrade up to 600W
• Model: BSFLHD1200-/ECO : 200W | 6500K | 22,000 LM | Size: $: $260\times345\times105\text{$ | 240 PCS SMD LEDs | 3.1kg
• Model: BSFLHD-1300/ECO : 300W | 6500K | 33,000 LM | Size: $: $370\times345\times105\text{$ | 360 PCS SMD LEDs | 4.2kg
• Model: BSFLHD-1400/ECO : 400W | 6500K | 44,000 LM | Size: $: $470\times345\times105\text{$ | 480 PCS SMD LEDs | 5.6kg
• Model: BSFLHD-1500/ECO : 500W | 6500K | 55,000 LM | Size: $: $580\times345\times105\text{$ | 600 PCS SMD LEDs | 6.6kg

Common FAQs for BSLight Eco Series LED Module Floodlights

Q1: What unique advantages does the “Free Combination” design provide?

A: The Eco Series is engineered with a modular layout that offers a free combination setup. This means you can structurally upgrade the modules to add more power as your site needs change, giving you the flexibility to easily expand a base 200W installation profile all the way up to 600W without purchasing completely different fixture series.

Q2: How well does the Eco Series handle lightning and voltage surges in outdoor areas?

A: This series is heavily fortified against electrical surges. It features dual-mode internal protection Differential Mode (DM): 6KV and Common Mode (CM): 6KV alongside a dedicated, main 10KV surge protector. This multi-tier setup safely isolates the LED modules from lightning strikes and industrial power grid spikes.

Q3: What do the IP66 and IK08 ratings mean for harsh outdoor setups?

A: An IP66 rating guarantees the floodlight is completely dust-tight and fully sealed against high-pressure, heavy water jets from any direction. The IK08 rating ensures the robust die-cast aluminum body and polycarbonate lens shield the internal electronics from high mechanical impacts, protecting the light from vandalism or accidental debris impacts.

Q4: Can this floodlight be used for street lighting or overhead ceiling applications?

A: Yes, the heavy-duty, anti-corrosion, and rustproof aluminum bracket is engineered for high versatility. It seamlessly supports Wall Mounted, Sitting Mode, Ceiling Type, and Street Style mounting arrangements, making it highly adaptable for stadiums, bridges, storefronts, or high-ceiling industrial warehouses alike.

Q5: What are the lumen count variations across the different power models?

A: Operating at a high system efficacy of 110lm/W, the lumen values scale proportionally across configurations: the 200W model generates 22,000 LM, the 300W generates 33,000 LM, the 400W generates 44,000 LM, and the massive 500W model delivers 55,000 LM of crisp 6500K daylight visibility.
