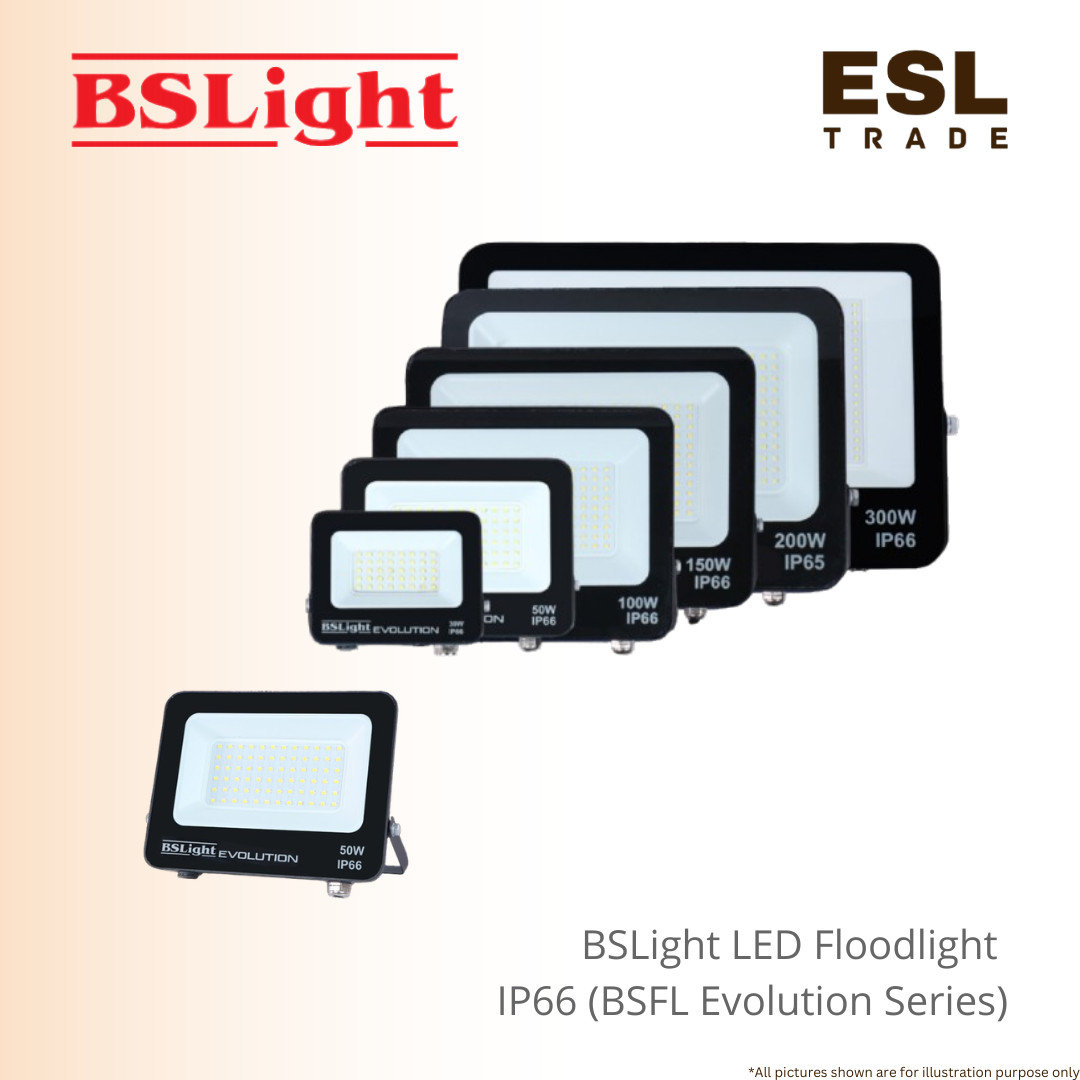

BSLight Evolution Series LED Floodlight DOB High Efficiency IP66 Rated for Parking Areas and Gardens (30W-300W) Ultimate Reliability

Description

BSLight Evolution Series LED Floodlight DOB High Efficiency IP66 Rated for Parking Areas and Gardens (30W-300W) Ultimate Reliability

Brighten up your outdoor spaces with the high-performance BSLight Evolution Series LED Floodlight.

Intentionally developed to balance robust energy efficiency with an ultra-slim profile, this advanced lighting fixture serves as an exceptional solution for modern parking areas, architectural landscapes, residential gardens, commercial billboards, security pathways, and building facade lightings.

Constructed using a highly durable aluminum die-casting housing integrated seamlessly with a rugged polycarbonate material diffuser, the Evolution Series provides excellent heat management and structural resilience against daily weather hazards.

The primary engineering breakthrough behind the Evolution Series is its advanced Driver-on-Board (DOB) technology.

By eliminating the need for an external driver, this innovative system vastly reduces common failure points, simplifies electrical components, and allows for an impressively compact, space-saving design.

Operating on a standard input range of AC160-265V (50/60Hz), these floodlights are split into optimized performance categories.

The lower wattage models (30W and 50W) sustain a steady power factor of PF >0.5, while the heavy-duty variants (100W, 150W, 200W, and 300W) achieve a high professional power factor of PF >0.9, minimizing current distortions on commercial power grids.

Equipped with high-brightness, long-life LED chips rated for 25,000 operational hours, this lighting family minimizes regular maintenance overhead.

It distributes crisp daylight illumination across a broad 120° beam angle, making it incredibly easy to eliminate dark spots over expansive perimeters.

Featuring an outstanding Color Rendering Index of CRI >80, it delivers superior visual clarity compared to conventional outdoor industrial setups.

Ranging from compact 30W (3,300 LM) models to massive 300W (33,000 LM) configurations, the Evolution Series stands as an exceptionally practical choice for high-yield, low-profile outdoor illumination

Product Details

• Brand & Product Series : BSLight LED Floodlight <<EVOLUTION SERIES>>
• Internal Driver Topology : Driver-On-Board (DOB) Technology No External Driver Required
• Material Construction : Solid Aluminium Die-Casting Housing | Polycarbonate Material Diffuser
• Primary Target Applications : Parking Areas, Gardens, Billboards, Facade Lightings, Commercial/Residential
• Ingress Protection (IP) : IP66 Dust & Waterproof Rated (Note: 150W model designated as IP65)
• Color Rendering Index (CRI) : High Visual Fidelity CRI > 80
• Optical Beam Spread : 120° Wide Area Flood Beam Angle
• Operational Lifespan : High Brightness and Long Life LED Chips (25,000 Hours)
• Input AC Operating Range : AC 160 – 265V | 50/60Hz Frequency Profile
• Operating Temperature : Heavy-duty Performance from -20°C ~ 50°C Ambient Working Envelope
• Model: BSFL-8030/EVL : 30W | 6500K | 3,300 LM | PF >0.5 | Size: 136 × 181 × 26 mm
• Model: BSFL-8050/EVL : 50W | 6500K | 5,500 LM | PF >0.5 | Size: 158 × 201 × 27 mm
• Model: BSFL-8100/EVL : 100W | 6500K | 11,000 LM | PF >0.9 | Size: 209 × 254 × 27 mm
• Model: BSFL-8150/EVL : 150W | 6500K | 16,500 LM | PF >0.9 | Size: 248 × 327 × 30 mm
• Model: BSFL-8200/EVL : 200W | 6500K | 22,000 LM | PF >0.9 | Size: 291 × 387 × 31 mm
• Model: BSFL-8300/EVL : 300W | 6500K | 33,000 LM | PF >0.9 | Size: 327 × 453 × 33 mm

Common FAQs for BSLight Evolution Series LED Floodlights

Q1: What exactly is DOB (Driver-on-Board) technology and what are its benefits?

A: Conventional LED floodlights rely on an independent, bulky external driver casing which takes up physical space and serves as a common failure point over time. DOB technology integrates the driver electronic components directly onto the main LED circuit board matrix. This produces a significantly more high-efficiency design, an ultra-slim chassis, and a highly reliable performance lifecycle.

Q2: What is the difference in Power Factor (PF) between the lower and higher wattage models?

A: To suit differing system requirements, the 30W and 50W residential models feature a standard PF >0.5. Meanwhile, the industrial-scale 100W, 150W, 200W, and 300W models feature an advanced PF >0.9. A higher power factor ensures optimal energy usage with minimal electricity waste, matching strict energy codes for large commercial grids.

Q3: How well do these floodlights protect colors in high-visibility areas like billboards?

A: The Evolution Series boasts a Color Rendering Index of CRI >80. This is notably higher than standard outdoor floodlights (which typically sit around CRI 70), ensuring illuminated colors look natural, rich, and sharp—making them highly effective for commercial billboards, storefronts, and architectural facades.

Q4: Can the Evolution Series withstand intense rainstorms and severe outdoor exposure?

A: Yes, the system features a solid aluminum die-cast body and a thoroughly sealed polycarbonate lens housing. The majority of the models are fully IP66 rated, meaning they are dust-tight and perfectly safe against heavy rain or powerful water sprays. (Note: The 150W variant is designated as an IP65 housing, which still safely protects it against common outdoor rain showers).

Q5: What are the physical sizing characteristics of the ultra-slim 200W and 300W high-power models?

A: Thanks to their driverless DOB architecture, even the massive high-power configurations maintain incredibly thin profiles. The 200W model measures just 291 × 387 × 31 mm at a light weight of 1.4kg, while the top-tier 300W model measures an easy-to-handle 327 × 453 × 33 mm at only 1.8kg. This makes hanging them on high walls or poles much safer and less strenuous for contractors
