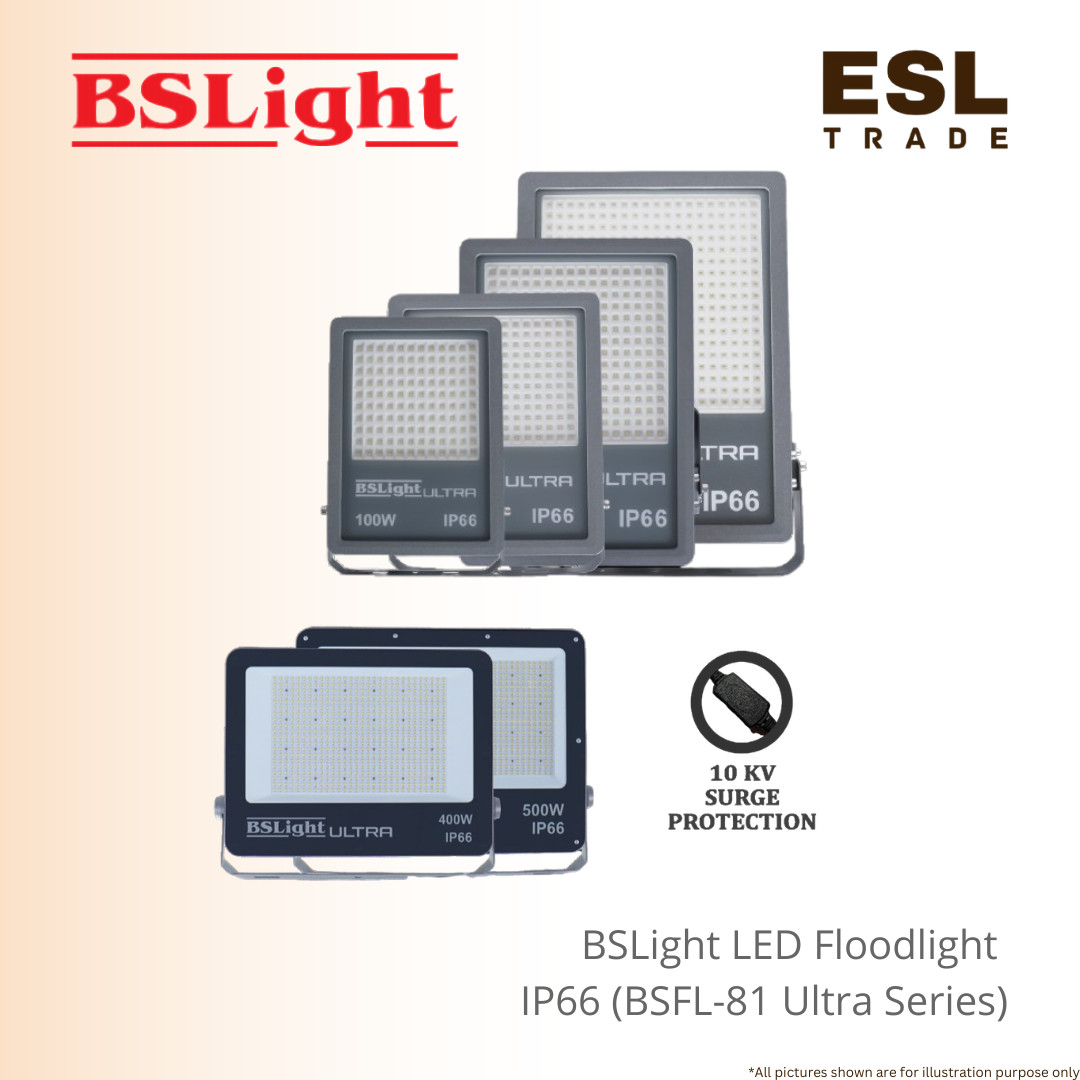

BSLight Ultra Series LED Floodlight IP66 Rated with 10KV Surge Protection for Stadium and Parking Areas (100W-500W) Outstanding Performance

Description

BSLight Ultra Series LED Floodlight IP66 Rated with 10KV Surge Protection for Stadium and Parking Areas (100W-500W) Outstanding Performance

Illuminate expansive outdoor environments with the industrial-grade BSLight Ultra Series LED Floodlight.

Engineered specifically for high-exposure commercial and residential settings, this heavy-duty fixture is the premier choice for large parking areas, stadiums, gardens, billboards, pathways, and architectural facade lighting.

Built from a robust solid aluminum die-casting chassis paired with a high-strength textured glass material diffuser, the Ultra Series is fully optimized to withstand the most demanding outdoor weather conditions while delivering maximum light transmittance without yellowing or cracking.

One of the standout engineering highlights of this series is the integration of a built-in pressure release valve.

This valve dynamically balances internal and external pressure changes caused by sudden temperature shifts, completely eliminating moisture buildup and internal condensation behind the lens.

Electrical resilience is heavily reinforced with a robust 10KV surge protector, effectively isolating the high-efficiency LED chips from catastrophic grid spikes and lightning strikes.

Additionally, each floodlight comes conveniently equipped with a 30cm pre-wire configuration, drastically simplifying installation for contractors and maintenance teams.

The Ultra Series operates smoothly across a wide temperature threshold from -20°C to 50°C and handles input ranges of AC100-240V (50/60Hz).

It maintains a remarkably clean power factor of 0.95, ensuring optimized power distribution and high energy efficiency.

Utilizing high-brightness and long-life LED chips paired with a wide 120° beam angle and a Color Rendering Index of CRI >70, it floods large spaces with bright daylight-white uniformity.

Available in standard scalable outputs from 100W (15,000 LM) up to a massive 500W (75,000 LM) structure, the Ultra Series delivers unmatched coverage and professional security wherever it is deployed.

Product Details

• Brand & Product Series : BSLight LED Floodlight <<ULTRA SERIES>>
• Chassis Construction : Solid Aluminium Die-Casting Housing | Textured Glass Diffuser
• Primary Applications : Ideal for Parking Areas, Stadiums, Gardens, Billboards, Pathways, Facades
• Ingress & Impact Protection : IP66 (Waterproof/Dust-tight) | IK08 (High Mechanical Impact Rated)
• Special Protection Valve : Built-In Pressure Release Valve (Prevents Internal Condensation)
• Surge Protection Rating : Integrated 10KV Surge Protector
• Wiring Integration : Equipped with 30CM Convenient Pre-Wire Layout
• Input AC Voltage & Freq. : AC 100 – 240V | 50/60Hz Range Capability
• Power Factor (PF) / CRI : High Efficiency PF: 0.95 | Color Rendering Index: CRI > 70
• Beam Angle Spread : 120° Wide Area Industrial Flood Beam Angle
• Operating Temperature : Heavy-duty Design Optimized for -20°C ~ 50°C Ambient Working Environment
• Model: BSFL-8100-1/ULT : 100W | 6500K | 15,000 LM | Size (LxWxH): 290 × 214 × 47 mm
• Model: BSFL-8150-1/ULT : 150W | 6500K | 22,500 LM | Size (LxWxH): 320 × 260 × 55 mm
• Model: BSFL-8200-1/ULT : 200W | 6500K | 30,000 LM | Size (LxWxH): 372 × 267 × 55 mm
• Model: BSFL-8300-1/ULT : 300W | 6500K | 45,000 LM | Size (LxWxH): 432 × 318 × 55 mm
• Model: BSFL-8400-1/ULT : 400W | 6500K | 60,000 LM | Size (LxWxH): 353 × 457 × 56 mm
• Model: BSFL-8500-1/ULT : 500W | 6500K | 75,000 LM | Size (LxWxH): 391 × 507 × 60 mm

Common FAQs for BSLight Ultra Series LED Floodlights

Q1: What does the built-in pressure release valve do?

A: Outdoor floodlights undergo extreme internal temperature changes when turned on and off, which usually sucks in moisture and creates foggy condensation behind the glass. The built-in pressure release valve dynamically balances the internal air pressure with the outside atmosphere, completely preventing condensation and keeping the optics perfectly clear.

Q2: How does the 10KV surge protection safeguard the fixture?

A: Outdoor installations on poles or building facades are highly vulnerable to lightning strikes and industrial power grid spikes. The heavy-duty 10KV surge protector intercepts high-voltage transients, safely grounding the electrical spike before it can reach and damage the high-efficiency LED chips.

Q3: Can these floodlights be mounted in areas with severe weather or physical exposure?

A: Absolutely. Armed with an IP66 rating, the light is fully dust-tight and shielded against powerful water jets from any angle. Paired with an IK08 impact rating, a rugged die-cast aluminum frame, and a textured glass diffuser, it is built to survive high physical impacts, heavy rain, and harsh environments.

Q4: What are the installation advantages of the 30cm pre-wire feature?

A: Wiring up fixtures while hanging on high scaffolding or ladders can be difficult. The integrated 30cm pre-wire gives electrical contractors ample external cable length right out of the box to connect straight into external junction boxes, significantly reducing installation labor and time on site.

Q5: What are the lumen count variations across the top-tier 400W and 500W models?

A: Engineered for ultra-high-ceiling and wide-area distribution, the 400W model delivers 60,000 lumens, while the ultra-powerful 500W model generates a massive 75,000 lumens of daylight-white (6500K) illumination, making it exceptionally easy to maintain high lux levels over large commercial venues
