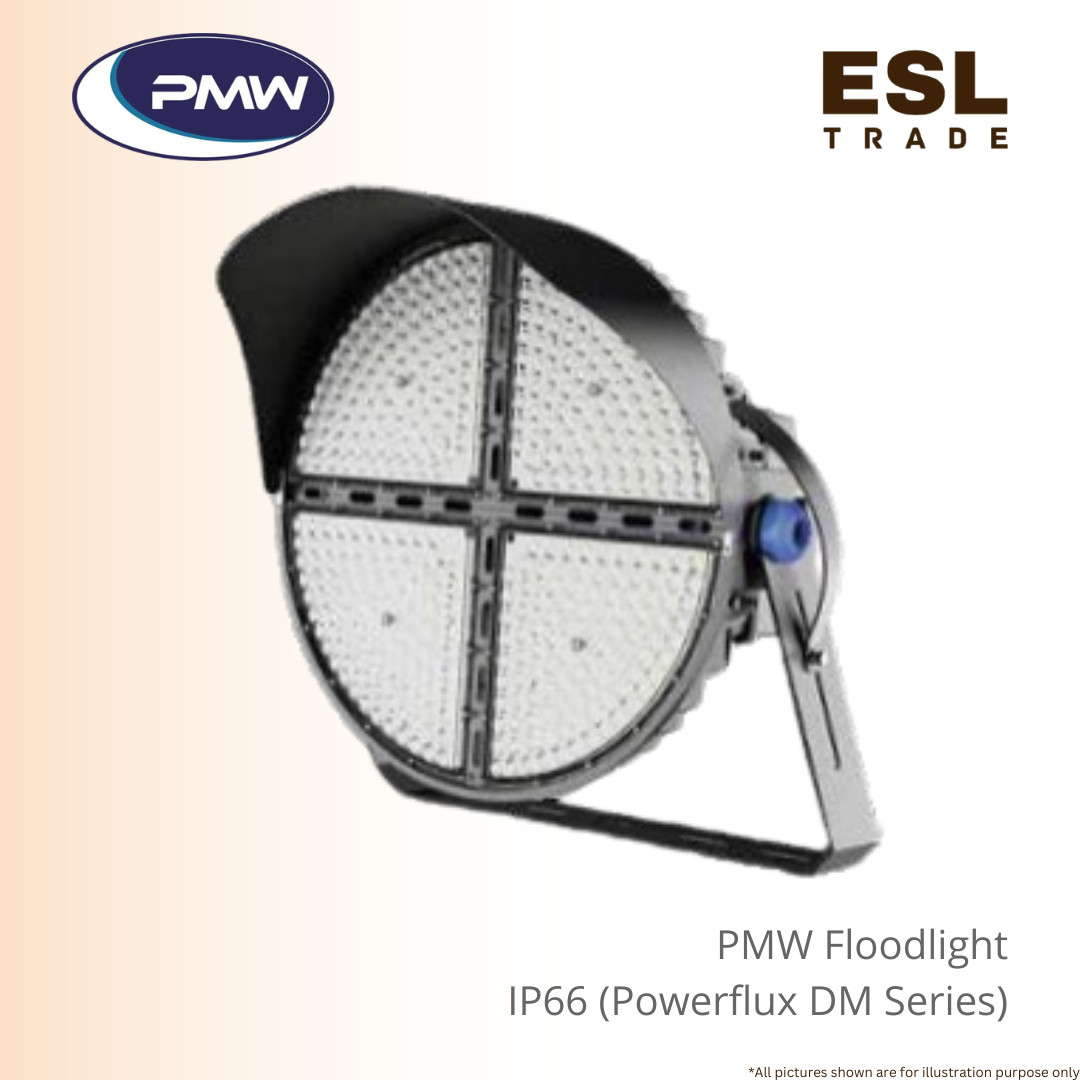

PMW POWERFLUX DM Series High Mast Stadium LED Floodlight 500W-1500W Excellent Laser Aiming & Glare Visor Sports Arenas & Ports
The PMW POWERFLUX DM Series High Mast Stadium LED Floodlight is built for large-scale outdoor and high-mast illumination, including sports stadiums, arenas, football fields, badminton courts, highways, high-mast roads, tunnels, subways, large area workshops, warehouses, ports, docks, and container yards.
Constructed with heavy-duty housing made of extruded 6060 aluminum heatsinks and thick, high-thermal-conductivity pure aluminum, the fixture features a powder-coated finish designed for efficient heat dissipation and operational reliability.
The luminaire incorporates an integrated protective visor to control glare and cut down on spill light beyond target zones.
To enable precise optical targeting across long projection distances, the series includes a laser sight accessory and precise angle rotation adjustments, allowing installers to align beams during commissioning.
Optical distribution options include symmetric 15°, 30°, 45°, and 60° beam angles to suit narrow beam throwing or broader flood requirements.
Equipped with high-efficiency LEDs maintaining a Color Rendering Index of Ra70, the fixture delivers system efficacy up to 190 lm/W.
The housing holds an IP66 rating for ingress protection against dust and heavy water ingress, operating in ambient thermal environments from -40°C to +60°C.
The POWERFLUX DM Series includes five high-output models:
- 500W (95,000 lm),
- 600W (108,000 lm),
- 800W (152,000 lm),
- 1000W (180,000 lm), and
- 1500W (270,000 lm).
All models offer color temperature selections of 3000K warm white, 4000K neutral white, and 5700K cool daylight.
With pure aluminum thermal management, laser-aiming alignment accessories, and outputs up to 270,000 lumens, the PMW POWERFLUX DM Series delivers controlled illumination for major infrastructure projects.
Product Detail
PMW POWERFLUX DM
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Max Efficacy (lm/W) | Color Temp (CCT) | Optical Options | Length L (mm) | Width W (mm) | Height H (mm) | Weight (kg) | Ingress Rating / CRI | Operating Temp | Thermal & Housing Material | Accessories & Alignment Features |
| 01.PWFDM0500.00 | PWFDM-0500 | 500W | 95,000 lm | 190 lm/W | 3000K, 4000K, 5700K | 15°, 30°, 45°, 60° | 592 mm | 509 mm | 263 mm | 21.5 kg | IP66 / Ra70 | -40°C to +60°C | Extruded 6060 Pure Aluminum Heatsink, Powder Coating | Glare Visor, Laser Sight, Precise Angle Rotation |
| 01.PWFDM0600.00 | PWFDM-0600 | 600W | 108,000 lm | 180 lm/W | 3000K, 4000K, 5700K | 15°, 30°, 45°, 60° | 592 mm | 509 mm | 263 mm | 21.5 kg | IP66 / Ra70 | -40°C to +60°C | Extruded 6060 Pure Aluminum Heatsink, Powder Coating | Glare Visor, Laser Sight, Precise Angle Rotation |
| 01.PWFDM0800.00 | PWFDM-0800 | 800W | 152,000 lm | 190 lm/W | 3000K, 4000K, 5700K | 15°, 30°, 45°, 60° | 697 mm | 649 mm | 263 mm | 28.0 kg | IP66 / Ra70 | -40°C to +60°C | Extruded 6060 Pure Aluminum Heatsink, Powder Coating | Glare Visor, Laser Sight, Precise Angle Rotation |
| 01.PWFDM1000.00 | PWFDM-1000 | 1000W | 180,000 lm | 180 lm/W | 3000K, 4000K, 5700K | 15°, 30°, 45°, 60° | 697 mm | 649 mm | 263 mm | 28.0 kg | IP66 / Ra70 | -40°C to +60°C | Extruded 6060 Pure Aluminum Heatsink, Powder Coating | Glare Visor, Laser Sight, Precise Angle Rotation |
| 01.PWFDM1500.00 | PWFDM-1500 | 1500W | 270,000 lm | 180 lm/W | 3000K, 4000K, 5700K | 15°, 30°, 45°, 60° | 831 mm | 772 mm | 571 mm | 40.0 kg | IP66 / Ra70 | -40°C to +60°C | Extruded 6060 Pure Aluminum Heatsink, Powder Coating | Glare Visor, Laser Sight, Precise Angle Rotation |
Note: Circuit looping details for MCB / Circuit Breakers should follow the driver data sheet. Specifications and dimensions subject to change without notice
Frequently Asked Questions (FAQ)
Q: How does the laser sight accessory assist during installation?
A: The integrated laser sight allows installers to aim the floodlight at specific areas on a sports field or container yard before locking down the mounting bracket.
Q: What material is used for the thermal management system in the POWERFLUX DM Series?
A: The luminaire housing utilizes extruded 6060 pure aluminum heatsinks with high thermal conductivity to manage LED temperatures.
Q: What electrical installation details should be reviewed for these high-wattage units?
A: Due to the high power draw (up to 1500W), installer guidance advises referring directly to the driver data sheet for specific circuit breaker (MCB) and circuit looping recommendations.
Q: What beam angle options are available for long-throw high-mast applications?
A: The series offers symmetric optical options of 15°, 30°, 45°, and 60°, allowing narrow spot aiming for sports masts or wide beam setups for open storage yards
