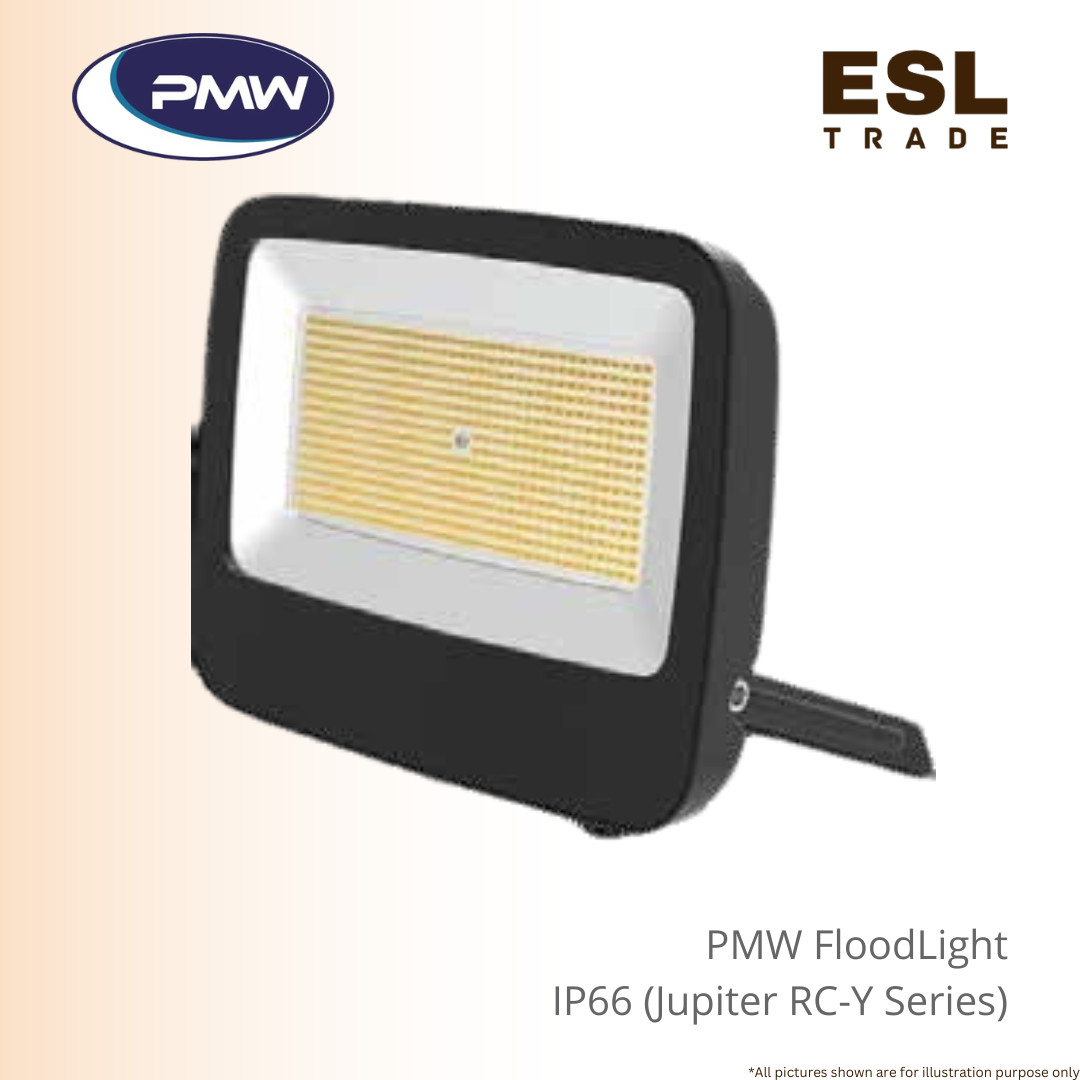

PMW JUPITER RC-Y Series Outdoor LED Floodlight 10W-200W Excellent Switchable Power CCT PIR Sensor Outdoor & Billboard
The PMW JUPITER RC-Y Series Outdoor LED Floodlight delivers adaptable, field-configurable illumination engineered for building facades, gardens, residential properties, outdoor billboards, and landscape applications.
The PMW JUPITER RC-Y Series Outdoor LED Floodlight is constructed with a slim profile housing finished in anti-corrosion and anti-rust outdoor powder coating, the luminaire features a durable 4mm tempered glass cover, a 180° rotatable mounting bracket, and an integrated anti-condensation valve to manage internal pressure and moisture.
The PMW JUPITER RC-Y Series Outdoor LED Floodlight is optical engine utilizes high-efficiency SMD2835 LED chips paired with a 120° beam angle distribution, delivering reliable visibility while operating at a Color Rendering Index of Ra70.
The luminaire is rated IP66 for complete protection against severe dust and powerful water jets in outdoor installations. For routine servicing or field adjustment, the fixture is designed for easy opening using a standard 5mm Allen Key.
A core advantage of the The PMW JUPITER RC-Y Series Outdoor LED Floodlight Series is its dual-switchable configuration, permitting both wattage output and correlated color temperature selection (3000K warm white, 4000K neutral white, and 6000K daylight) directly on the fixture. The available model range includes:
-
JUPR030: Switchable 30W / 20W / 10W (up to 3,000 lm)
-
JUPR050: Switchable 50W / 30W / 20W (up to 5,000 lm)
-
JUPR100: Switchable 100W / 70W / 50W (up to 10,000 lm)
-
JUPR200: Switchable 200W / 150W / 100W (up to 20,000 lm)
The The PMW JUPITER RC-Y Series Outdoor LED Floodlight series supports optional system accessories including plug-in PIR motion sensors, ground support spikes (26cm), advertising signboard extension brackets (50cm, 100cm, 120cm), and mobile tripod brackets (160cm).
Combining flexible multi-wattage output with multi-CCT tuning and custom mounting options, the PMW JUPITER RC-Y Series offers a practical lighting solution for exterior installations.
Product Detail
PMW JUPITER RC-Y
| Product Code | Model Code | Switchable Wattage (W) | Max Lumens (lm) | Switchable Color Temp (CCT) | Optical Beam Angle | Length L (mm) | Width W (mm) | Height H (mm) | Weight (kg) | Ingress Rating / CRI | LED Chip Type | Key Design Features | Compatible Optional Accessories |
| 01.JUPRCY030.00 | JUPR030 | 30W – 20W – 10W | 3,000 lm | 3000K – 4000K – 6000K | 120° | 142 mm | 176 mm | 26 mm | 0.60 kg | IP66 / Ra70 | SMD2835 | Anti-corrosion Powder Coating,
4mm Tempered Glass, 180° Rotatable Bracket, Anti-condensation Valve, 5mm Allen Key Access |
PIR Sensor, Ground Support (26cm),
Signboard Brackets (50cm/100cm/120cm), Mobile Bracket (160cm) |
| 01.JUPRCY050.00 | JUPR050 | 50W – 30W – 20W | 5,000 lm | 3000K – 4000K – 6000K | 120° | 152 mm | 187 mm | 26 mm | 0.72 kg | IP66 / Ra70 | SMD2835 | Anti-corrosion Powder Coating,
4mm Tempered Glass, 180° Rotatable Bracket, Anti-condensation Valve, 5mm Allen Key Access |
PIR Sensor, Ground Support (26cm),
Signboard Brackets (50cm/100cm/120cm), Mobile Bracket (160cm) |
| 01.JUPRCY100.00 | JUPR100 | 100W – 70W – 50W | 10,000 lm | 3000K – 4000K – 6000K | 120° | 212 mm | 257 mm | 26 mm | 1.23 kg | IP66 / Ra70 | SMD2835 | Anti-corrosion Powder Coating,
4mm Tempered Glass, 180° Rotatable Bracket, Anti-condensation Valve, 5mm Allen Key Access |
PIR Sensor, Ground Support (26cm),
Signboard Brackets (50cm/100cm/120cm), Mobile Bracket (160cm) |
| 01.JUPRCY200.00 | JUPR200 | 200W – 150W – 100W | 20,000 lm | 3000K – 4000K – 6000K | 120° | 300 mm | 369 mm | 30 mm | 2.36 kg | IP66 / Ra70 | SMD2835 | Anti-corrosion Powder Coating,
4mm Tempered Glass, 180° Rotatable Bracket, Anti-condensation Valve, 5mm Allen Key Access |
PIR Sensor, Ground Support (26cm),
Signboard Brackets (50cm/100cm/120cm), Mobile Bracket (160cm) |
Note: Outdoor powder coating provides anti-corrosion and anti-rust protection. Specifications and dimensions subject to change without notice
Frequently Asked Questions (FAQ)
Q: How do the switchable power and CCT settings work on the JUPITER RC-Y Series?
A: Each luminaire includes onboard selection switches that allow installers to toggle between three power levels (e.g., 200W/150W/100W on the JUPR200) and three color temperatures (3000K warm white, 4000K neutral white, or 6000K cool daylight) during fitting.
Q: What function does the integrated anti-condensation valve serve?
A: The anti-condensation valve equalizes internal and external pressure differentials caused by temperature fluctuations, preventing moisture accumulation behind the tempered glass lens.
Q: Can motion sensors or specialized mounting hardware be added to this model?
A: Yes, the unit supports plug-in PIR motion sensors, ground support spikes (26cm), advertising signboard extension arms (50cm, 100cm, 120cm), and portable 160cm mobile tripod brackets.
Q: What tool is required to open or service the fixture?
A: The luminaire enclosure is designed to be opened using a standard 5mm Allen key.
