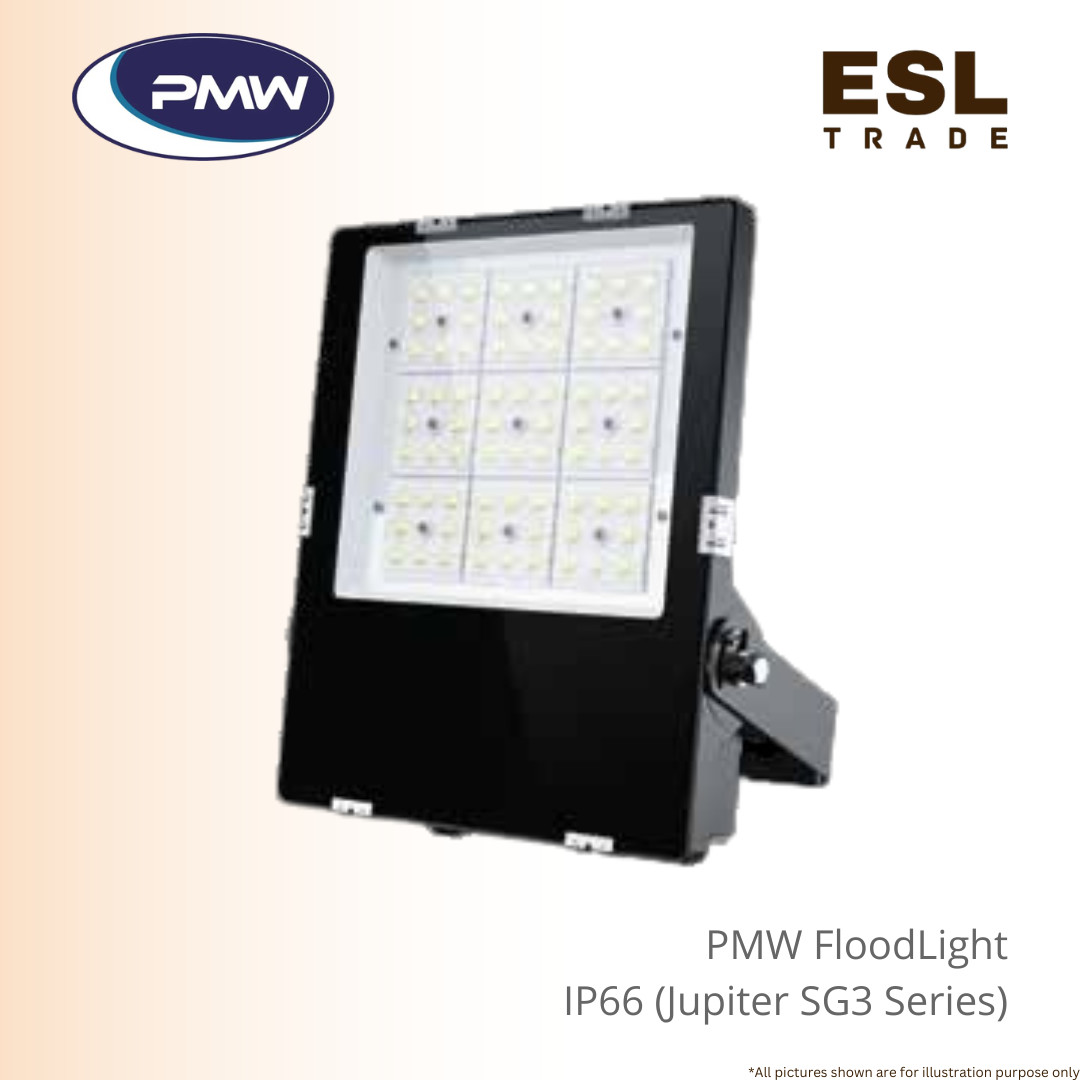

PMW JUPITER SG3 Series High Power Outdoor LED Floodlight 100W-400W Excellent for Low Spill Light Visor IP66 IK10 Facade & Sports
The PMW JUPITER SG3 Series High Power Outdoor LED Floodlight provides precision-engineered lighting designed for demanding exterior environments, including building facades, gardens, garages, entrance ways, and large outdoor spaces.
The PMW JUPITER SG3 Series High Power Outdoor LED Floodlight is built with a heavy-duty die-cast aluminum housing, this fixture integrates a high-durability tempered glass cover paired with specialized glare control accessories.
The PMW JUPITER SG3 Series High Power Outdoor LED Floodlight is designed specifically to minimize light pollution and glare, the luminaire features an integrated visor system and metal mesh anti-glare shield, delivering focused illumination while reducing unwanted spill light into surrounding areas.
To support diverse optical requirements, the JUPITER SG3 Series offers wide-ranging beam angle options, including 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, and MBP45.
These optics allow project designers to configure tight accent beams for vertical architectural features or wide asymmetric distributions for large ground areas.
Operating at a Color Rendering Index of Ra70, the LED module delivers an impressive system efficacy of 150 lm/W across a rated operational lifespan of 50,000 hours.
The PMW JUPITER SG3 Series High Power Outdoor LED Floodlight is engineered for extreme environmental resilience, the series holds an IP66 ingress protection rating against severe dust and rain, along with an exceptionally high IK10 mechanical impact resistance rating to withstand harsh physical impacts.
The JUPITER SG3 Series spans six high-performance power configurations:
- 100W (15,000 lm),
- 150W (22,500 lm),
- 200W (30,000 lm),
- 240W (36,000 lm),
- 300W (45,000 lm), and
- 400W (60,000 lm).
All wattage models are available in three correlated color temperatures (CCT):
- 3000K warm white,
- 4000K neutral white, and
- 5700K cool daylight.
Combining robust die-cast construction, anti-glare spill light control, and high structural impact ratings, the JUPITER SG3 Series offers an effective solution for commercial and industrial outdoor applications.
Product Detail
PMW JUPITER SG3
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp (CCT) | Optical Beam Options | Length L (mm) | Width W (mm) | Height H (mm) | Weight (kg) | Ingress / Impact Rating | Lifespan / CRI | Glare Control Accessories | Construction Material |
| 01.JUPSG3100.00 | JUPS100 | 100W | 15,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, MBP45 | 292 mm | 246 mm | 53 mm | 2.50 kg | IP66 / IK10 | 50,000H / Ra70 | Visor, Mesh Visor | Die-cast Aluminum, Tempered Glass |
| 01.JUPSG3150.00 | JUPS150 | 150W | 22,500 lm | 150 lm/W | 3000K, 4000K, 5700K | 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, MBP45 | 336 mm | 264 mm | 53 mm | 3.30 kg | IP66 / IK10 | 50,000H / Ra70 | Visor, Mesh Visor | Die-cast Aluminum, Tempered Glass |
| 01.JUPSG3200.00 | JUPS200 | 200W | 30,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, MBP45 | 407 mm | 328 mm | 53 mm | 5.20 kg | IP66 / IK10 | 50,000H / Ra70 | Visor, Mesh Visor | Die-cast Aluminum, Tempered Glass |
| 01.JUPSG3240.00 | JUPS240 | 240W | 36,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, MBP45 | 407 mm | 328 mm | 53 mm | 5.45 kg | IP66 / IK10 | 50,000H / Ra70 | Visor, Mesh Visor | Die-cast Aluminum, Tempered Glass |
| 01.JUPSG3300.00 | JUPS300 | 300W | 45,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, MBP45 | 496 mm | 411 mm | 65 mm | 9.60 kg | IP66 / IK10 | 50,000H / Ra70 | Visor, Mesh Visor | Die-cast Aluminum, Tempered Glass |
| 01.JUPSG3400.00 | JUPS400 | 400W | 60,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 30°, 60°, 90°, 100° x 150°, 120° x 150°, MLPS0, MBP45 | 496 mm | 411 mm | 65 mm | 9.60 kg | IP66 / IK10 | 50,000H / Ra70 | Visor, Mesh Visor | Die-cast Aluminum, Tempered Glass |
Note: Specifications and dimensions subject to change without notice
Frequently Asked Questions (FAQ)
Q: How does the PMW JUPITER SG3 Series control light pollution and spill light?
A: The SG3 Series integrates a physical visor hood and a metal mesh visor shield that cut off high-angle stray light, directing the beam output precisely toward the intended target while reducing glare to surrounding areas.
Q: What impact protection level does the JUPITER SG3 housing offer?
A: The luminaire carries an IK10 impact resistance rating the highest standard rating for mechanical impact resistance alongside an IP66 ingress protection rating for severe outdoor weather conditions.
Q: What is the maximum wattage and light output available in this series?
A: The series scales up to a high-output 400W model (JUPS400) producing up to 60,000 lumens at an efficacy of 150 lm/W.
Q: What color temperatures and beam spreads can be specified?
A: All models offer CCT selections in 3000K, 4000K, or 5700K (CRI Ra70), with optics ranging from narrow spot distributions (30°, 60°) to asymmetric and broad flood angles (100°x 150°, 120° x 150°, MLPS0, MBP45).
