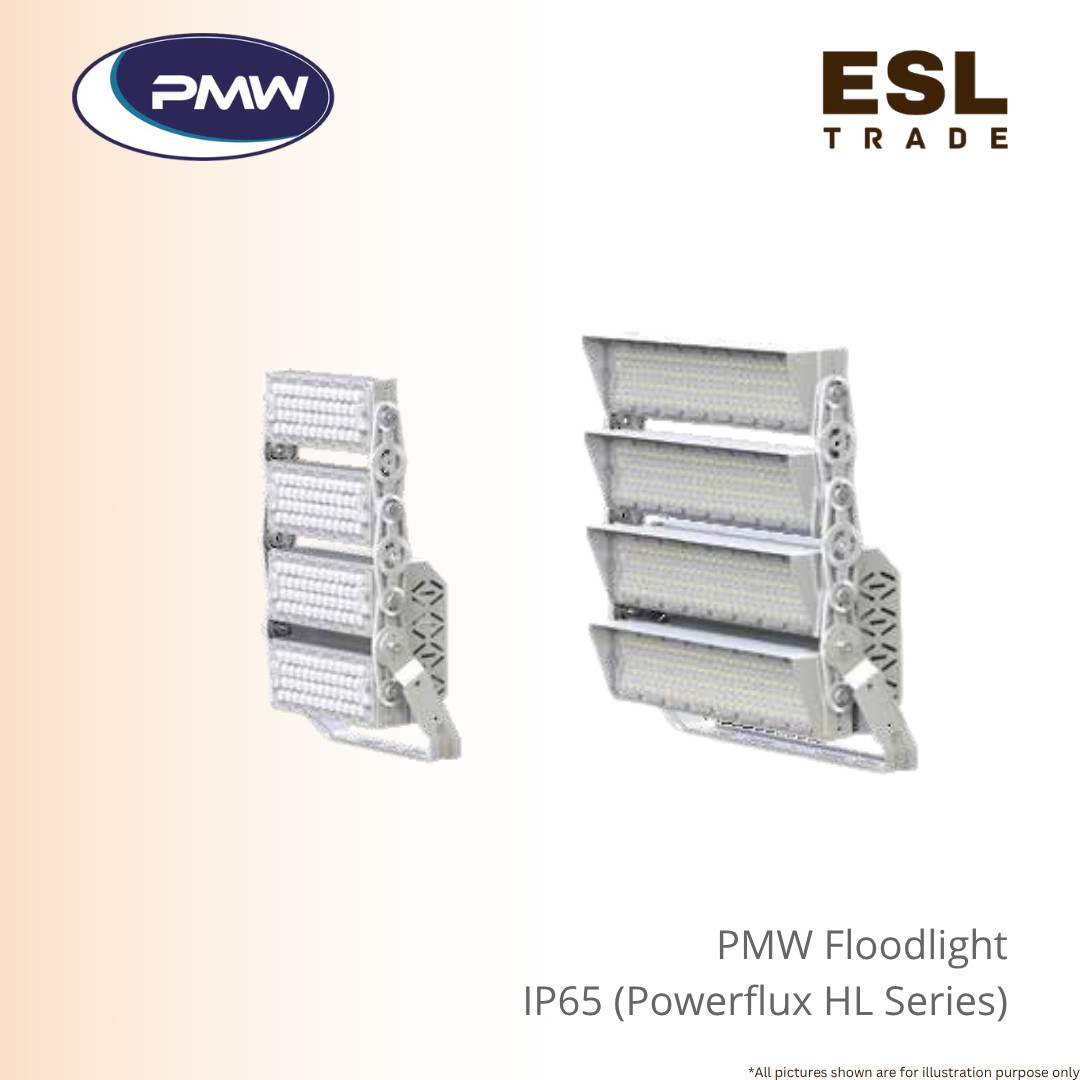

PMW POWERFLUX HL Series Modular LED Floodlight 250W-1500W Cree 5050 Meanwell IP65 Excellent High Mast Stadium
The PMW POWERFLUX HL Series Modular LED Floodlight is engineered for demanding industrial, transport, and sports infrastructure lighting applications.
The PMW POWERFLUX HL Series Modular LED Floodlight is constructed from pure aluminum for thermal dissipation, this heavy-duty fixture incorporates high-performance Cree 5050 LED chips paired with trusted Meanwell drivers to ensure continuous electrical stability and a rated operational lifespan of 50,000 hours.
The PMW POWERFLUX HL Series Modular LED Floodlight has each lighting module within the assembly is mounted on an independent rotatable bracket with precise angle rotation features. Integrated visors reduce glare and light spill beyond specified project boundaries.
The optical distribution range supports various beam angles including tight 20°, 30°, 40°, 60°, and 90° symmetric beams, alongside asymmetric 140° x 100° and P50 options making it suitable for high mast mountings and broad flood illumination.
The luminaire carries an IP65 ingress protection rating against environmental dust and rain, an IK08 mechanical impact rating, and operates reliably in extreme ambient thermal conditions ranging from -40°C to +50°C.
The PMW POWERFLUX HL Series Modular LED Floodlight Color Rendering Index performance is rated at Ra70.
The POWERFLUX HL Series features six modular configurations to suit varying area sizes:
- 250W (37,500 lm),
- 500W (75,000 lm),
- 750W (112,500 lm),
- 1000W (150,000 lm),
- 1200W (187,000 lm), and
- 1500W (225,000 lm).
Every wattage option is available in correlated color temperatures of 3000K warm white, 4000K neutral white, and 5700K cool daylight.
Designed for high masts, sports stadiums, tunnels, subways, football fields, badminton courts, ports, docks, and container yards, the POWERFLUX HL Series delivers targeted illumination for major infrastructure spaces.
Product Detail
PMW POWERFLUX HL
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp (CCT) | Optical Options | Length L (mm) | Width W (mm) | Height H (mm) | Weight (kg) | Ingress / Impact Rating | Operating Temp | Key Components & Accessories | Applications |
| 01.PWFMU0250.00 | PWFM-0250 | 250W | 37,500 lm | 150 lm/W | 3000K, 4000K, 5700K | 20°, 30°, 40°, 60°, 90°, 140° x 100°, P50 | 332 mm | 350 mm | 160 mm | 7.1 kg | IP65 / IK08 | -40°C to +50°C | Pure Aluminum, Cree 5050 LED, Meanwell Driver, Visor, Rotatable Bracket | High Mast, Tunnels, Stadiums, Courts, Ports |
| 01.PWFMU0500.00 | PWFM-0500 | 500W | 75,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 20°, 30°, 40°, 60°, 90°, 140° x 100°, P50 | 628 mm | 350 mm | 160 mm | 9.8 kg | IP65 / IK08 | -40°C to +50°C | Pure Aluminum, Cree 5050 LED, Meanwell Driver, Visor, Rotatable Bracket | High Mast, Tunnels, Stadiums, Courts, Ports |
| 01.PWFMU0750.00 | PWFM-0750 | 750W | 112,500 lm | 150 lm/W | 3000K, 4000K, 5700K | 20°, 30°, 40°, 60°, 90°, 140° x 100°, P50 | 484 mm | 587 mm | 195 mm | 14.2 kg | IP65 / IK08 | -40°C to +50°C | Pure Aluminum, Cree 5050 LED, Meanwell Driver, Visor, Rotatable Bracket | High Mast, Tunnels, Stadiums, Courts, Ports |
| 01.PWFMU1000.00 | PWFM-1000 | 1000W | 150,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 20°, 30°, 40°, 60°, 90°, 140° x 100°, P50 | 632 mm | 587 mm | 195 mm | 18.6 kg | IP65 / IK08 | -40°C to +50°C | Pure Aluminum, Cree 5050 LED, Meanwell Driver, Visor, Rotatable Bracket | High Mast, Tunnels, Stadiums, Courts, Ports |
| 01.PWFMU1200.00 | PWFM-1200 | 1200W | 187,000 lm | ~156 lm/W | 3000K, 4000K, 5700K | 20°, 30°, 40°, 60°, 90°, 140° x 100°, P50 | 780 mm | 587 mm | 195 mm | 21.0 kg | IP65 / IK08 | -40°C to +50°C | Pure Aluminum, Cree 5050 LED, Meanwell Driver, Visor, Rotatable Bracket | High Mast, Tunnels, Stadiums, Courts, Ports |
| 01.PWFMU1500.00 | PWFM-1500 | 1500W | 225,000 lm | 150 lm/W | 3000K, 4000K, 5700K | 20°, 30°, 40°, 60°, 90°, 140° x 100°, P50 | 928 mm | 587 mm | 195 mm | 24.0 kg | IP65 / IK08 | -40°C to +50°C | Pure Aluminum, Cree 5050 LED, Meanwell Driver, Visor, Rotatable Bracket | High Mast, Tunnels, Stadiums, Courts, Ports |
Note: Circuit breaker and MCB looping details should refer directly to the driver data sheet. Specifications subject to change without notice
Frequently Asked Questions (FAQ)
Q: What driver and LED chip brands are utilized in the POWERFLUX HL Series?
A: The POWERFLUX HL Series incorporates Cree 5050 LED chips combined with Meanwell drivers.
Q: How do the rotatable module brackets help during installation?
A: Each individual module is fixed on its own rotatable bracket with precise angle markings, allowing installers to adjust each section independently to achieve uniform coverage across large areas or high masts.
Q: What features manage light spill and glare?
A: The luminaire includes integrated visors on each module section designed to cut off high-angle light output, reducing glare and unwanted light spill.
Q: Where should installers check for electrical circuit looping and MCB selection?
A: Due to high wattage options up to 1500W, installers must refer directly to the driver data sheet for circuit looping details and Miniature Circuit Breaker (MCB) sizing requirements.
