Description

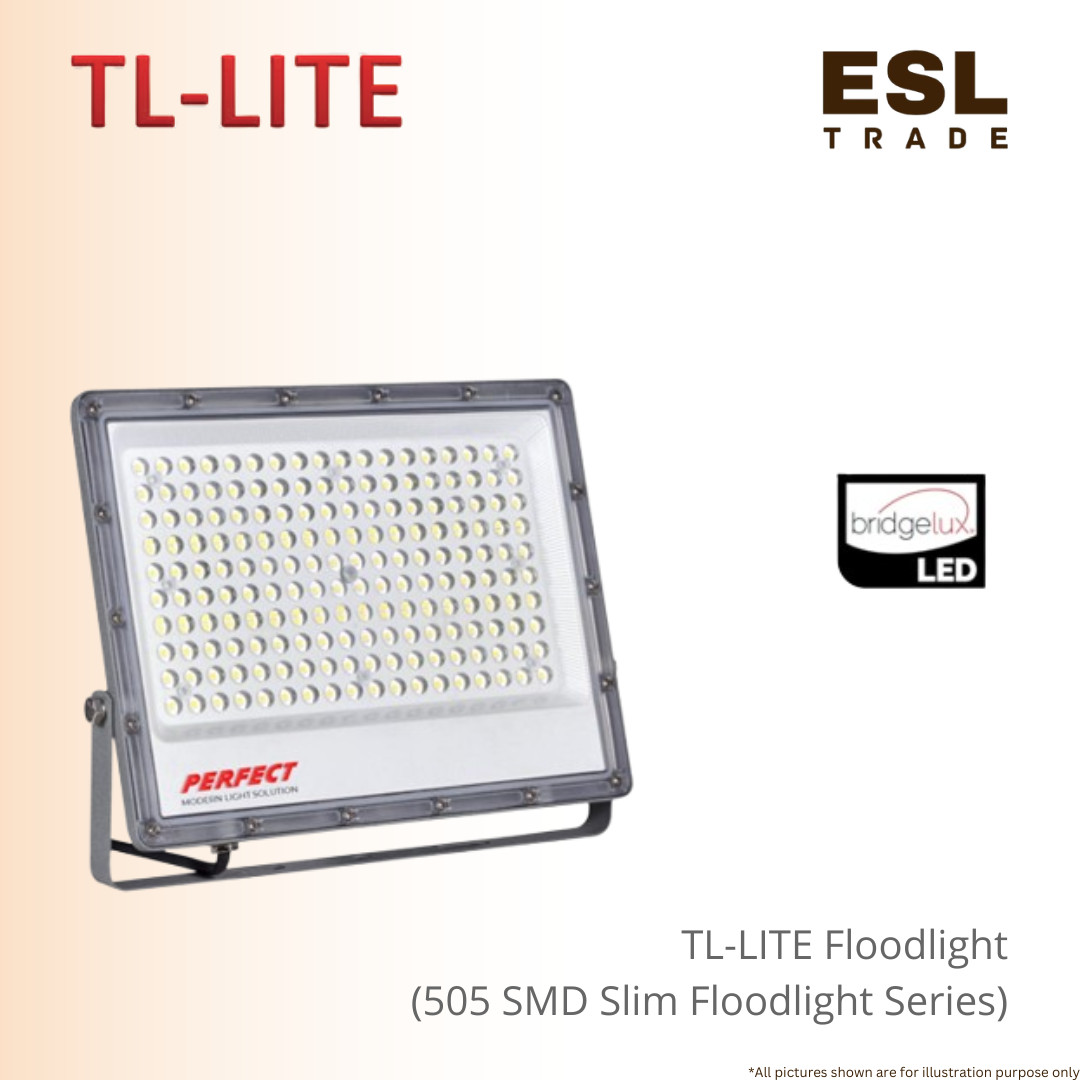

TL-Lite PERFECT LED Slim Floodlight 50W to 400W Bridgelux LED IP66 Waterproof 6KV Surge Protector Stadium & Industrial Area Lighting Spotlight Exceptional Performance
Maximize Visibility with the PERFECT LED Slim Floodlight 505 Series
Providing consistent, high-intensity illumination across expansive properties demands an industrial-grade architectural solution built for extreme efficiency and structural endurance.
The PERFECT LED Slim Floodlight 505 Series stands out as a premier solid-state engineering marvel designed to replace outdated, energy-hungry metal-halide lamps.
Featuring a slim, space-saving design profile that integrates advanced multi-chip optics, these premium heavy-duty spotlights deliver powerful, glare-free light distribution across highly demanding indoor and outdoor layouts where safety, security, and absolute visibility are critical.
Powered by Bridgelux LED for Unmatched Luminous Efficacy
At the core of the 505 Floodlight Series is its integration of elite, genuine Bridgelux LED technology.
Known for excellent thermal stabilization and minimal light degradation over time, these premium LEDs emit an extraordinary light output.
The series pushes out a powerful brightness scale starting from 5,500 lumens for localized requirements and reaching an incredible 44,000 lumens on the top-tier 400W commercial model.
Specifiers have full design freedom with multiple Correlated Color Temperature (CCT) variants available: select models offer versatile choices between crisp 6K (Daylight), warm 3K, or neutral 4K light paths to match the exact aesthetic requirements of your corporate or public projects.
Heavy-Duty Structural Design: IP66 Weatherproofing & 6KV Surge Defense
Outdoor structural lighting fixtures must endure unpredictable weather changes and electrical grid inconsistencies.
Constructed from a rugged hybrid combination of robust polycarbonate (PC) lenses and a tough Die Cast Aluminum housing body, the PERFECT floodlight is built to last.
The entire framework achieves an elite IP66 protection rating, ensuring a completely dust-tight seal that blocks driving rain, heavy storms, and ambient humidity from entering the electronic core.
Furthermore, to handle electrical instability smoothly, each unit comes standard with an integrated heavy-duty 6KV Surge Protector.
This robust electrical shield successfully grounds hazardous voltage spikes caused by regional lightning strikes or industrial machinery switching surges.
Combined with an exceptional 50,000-hour usage lifetime, this durable design drastically cuts down your equipment downtime and building maintenance labor costs.
Precision Optical Engineering for Flexible High-Elevation Mounting
Directing thousands of lumens efficiently across wide properties requires a highly focused optical system.
The 505 Series utilizes specialized multi-lens covers to project a clean 90° beam angle, optimizing down-ward punch while minimizing unnecessary light spill and shadow gaps.
Functioning reliably on a flexible input voltage window of AC100-265V and achieving a standard Power Factor of PF0.6, the line effortlessly balances power variables.
Complete with a pre-installed, heavy-gauge steel pivoting mounting bracket, this highly flexible design is perfectly suited for high-elevation mounting across sports field stadiums, area perimeter lighting, shipping ports, cargo warehouses, and complex industrial applications.
Product Details
| Product Parameter Specification | FL505/50 Model | FL505/100 Model | FL505/150 Model | FL505/200 Model | L505/300 Model | FL505/400 Model |
| Brand | PERFECT™ | PERFECT™ | PERFECT™ | PERFECT™ | PERFECT™ | PERFECT™ |
| Core Product Line | LED Slim Floodlight | LED Slim Floodlight | LED Slim Floodlight | LED Slim Floodlight | LED Slim Floodlight | LED Slim Floodlight |
| Power Capacity (Watt) | 50W | 100W | 150W | 200W | 300W | 400W |
| LED Chip Technology | Bridgelux LED | Bridgelux LED | Bridgelux LED | Bridgelux LED | Bridgelux LED | Bridgelux LED |
| Input Voltage Grid | AC100 – 265V | AC100 – 265V | AC100 – 265V | AC100 – 265V | AC100 – 265V | AC100 – 265V |
| Lumen Output (lm) | 5500 LM | 11000 LM | 16500 LM | 22000 LM | 33000 LM | 44000 LM |
| CCT (Color Tones) | 6K / 3K / 4K | 6K / 3K / 4K | 6K / 3K / 4K | 6K / 3K / 4K | 6K Only | 6K Only |
| Fitting Material | PC+Die Cast Alum. | PC+Die Cast Alum. | PC+Die Cast Alum. | PC+Die Cast Alum. | PC+Die Cast Alum. | PC+Die Cast Alum. |
| IP Protection Rating | IP66 Waterproof | IP66 Waterproof | IP66 Waterproof | IP66 Waterproof | IP66 Waterproof | IP66 Waterproof |
| Surge Electrical Defense | 6KV Surge | 6KV Surge | 6KV Surge | 6KV Surge | 6KV Surge | 6KV Surge |
| Optical Beam Angle | 90° | 90° | 90° | 90° | 90^\circ$ | $90^\circ$ |
| Power Factor (PF) | PF0.6 | PF0.6 | PF0.6 | PF0.6 | PF0.6 | PF0.6 |
| Usage Lifetime Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours |
| Dimensions (WxHxD) | 185 x 145 x 25 mm | 245 x 190 x 25mm | 305 x 230 x 25 mm | 355 x 260 x 25mm | 400 x 290 x 25 mm | 440 x 320 x 25 mm |
| Standard Carton Qty | 40 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Flexible Applications | Sports Field Stadiums, Outdoor Area Lighting, Logistics Ports, Industrial Warehouses |
