Description

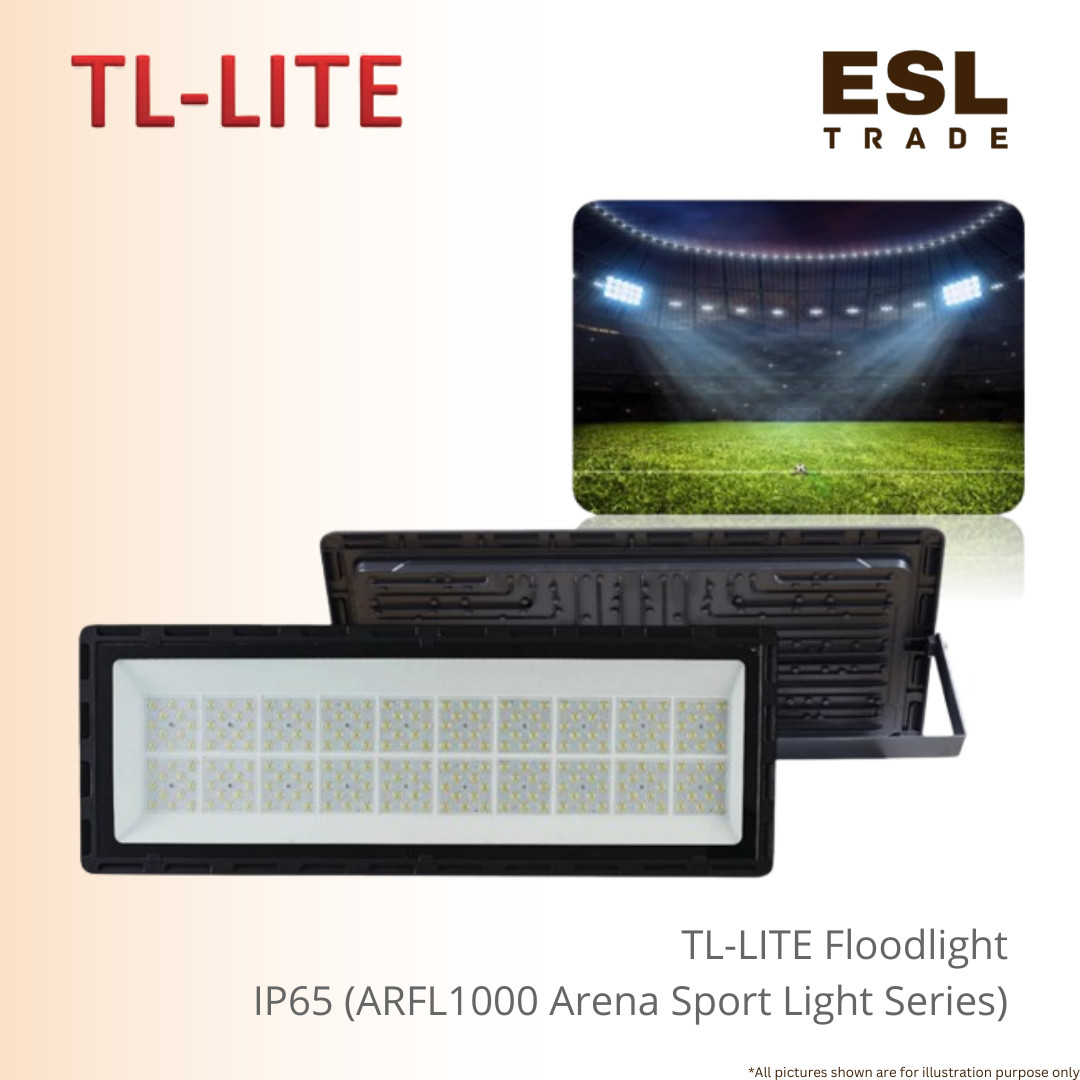

TL-LITE Arena Sport Light 1000W ARFL1000 IP65 Waterproof 10KV Surge Protection Stadium & Port LED Floodlight (906mm) Maximum Performance
Illuminate Massive Architectural Projects with the TL-LITE Arena Sport Light 1000W
Achieving proper visibility across massive modern sports arenas, maritime cargo ports, or expansive industrial perimeters requires high-tier solid-state engineering that standard fixtures cannot provide.
The TL-LITE Arena Sport Light 1000W (Model: ARFL1000) stands out as an elite high-power architectural solution designed to conquer large-scale lighting requirements.
Merging incredible luminous efficacy with a heavy-duty, heat-dissipating framework, this commercial-grade powerhouse projects extreme brightness across vast expanses, eliminating shadows and ensuring absolute safety, security, and clarity.
Blazing Luminous Efficacy Powered by Advanced Optics
At the core of the ARFL1000 is an array of high-intensity multi-chips that generate an extraordinary brightness level exceeding 90,000 Lumens.
Operating at an efficient luminous scale of 90-100 lm/W, the sport light projects a crisp 6500K daylight color temperature.
This temperature gives broad spaces sharp, high-contrast illumination that is essential for both fast-paced sports activities and detailed nighttime surveillance.
To ensure excellent color accuracy under intense light, the system features a Color Rendering Index of CRI >70.
Furthermore, it achieves a superior Power Factor of PF >0.9, meeting strict corporate building energy codes and ensuring optimal electrical network efficiency.
Dual Industrial Protection: IP65 Sealing & 10KV Surge Shield
High-elevation installations are constantly subjected to extreme environmental stresses and electrical grid instability.
Constructed from a rugged hybrid combination of structural Aluminium and premium tempered Glass, the chassis is built to endure long-term wear.
The entire body features a certified IP65 Protection Rank, ensuring a completely dust-tight seal that effortlessly blocks driving rain and high ambient humidity.
Beyond weather defense, each unit incorporates a massive 10KV Surge Protector module.
This advanced electrical shield effectively grounds severe voltage spikes caused by regional lightning strikes or industrial machinery switching loops, safeguarding your delicate driver components and reducing maintenance costs drastically.
Focused 90° Light Path Engineered for High-Mast Mounting
Directing an intense beam smoothly across long target areas requires precise geometric control.
The TL-LITE Arena Sport Light utilizes a tailored 90° optical beam angle that balances down-ward punch with uniform coverage, avoiding excessive light spill.
Functions reliably across a standard electrical grid window of AC180-265V (50/60Hz), its substantial 906 mm x 340mm x 90mm panel profile integrates a flexible, heavy-gauge steel bracket.
This flexible design allows for precise tilting adjustments, making it the premier specification choice for sports fields, large stadiums, area open plots, shipping ports, deep cargo warehouses, and complex industrial applications.
Product Details
| Product Parameter | Specifications & Technical Data |
| Brand | TL-LITE™ (TL Electric & Lighting) |
| Core Product Name | Arena Sport Light 1000W |
| Model Code | ARFL1000 |
| Power Capacity | 1000W |
| Luminous Output | > 90,000 LM |
| Luminous Efficacy | 90 – 100 M/W |
| Color Temperature (CCT) | 6500K (Daylight / Crisp White) |
| Power Factor Rating | PF > 0.9 |
| Color Rendering Index | CRI > 70 |
| Input Operating Voltage | AC180 – 265V ~ 50/60Hz |
| Optical Beam Angle | 90° |
| Chassis Material Composition | Premium Aluminium + Toughened Glass |
| Protection Classification | IP65 Weatherproof Sealing |
| Surge Electrical Protection | Heavy-Duty 10KV Surge Protector Integrated |
| Product Dimensions (WxHxD) | 906mm x 340mm x 90mm |
| Flexible Applications | Sports Fields, Stadiums, Wide Area Lighting, Logistics Ports, Industrial Warehouses |
