Description

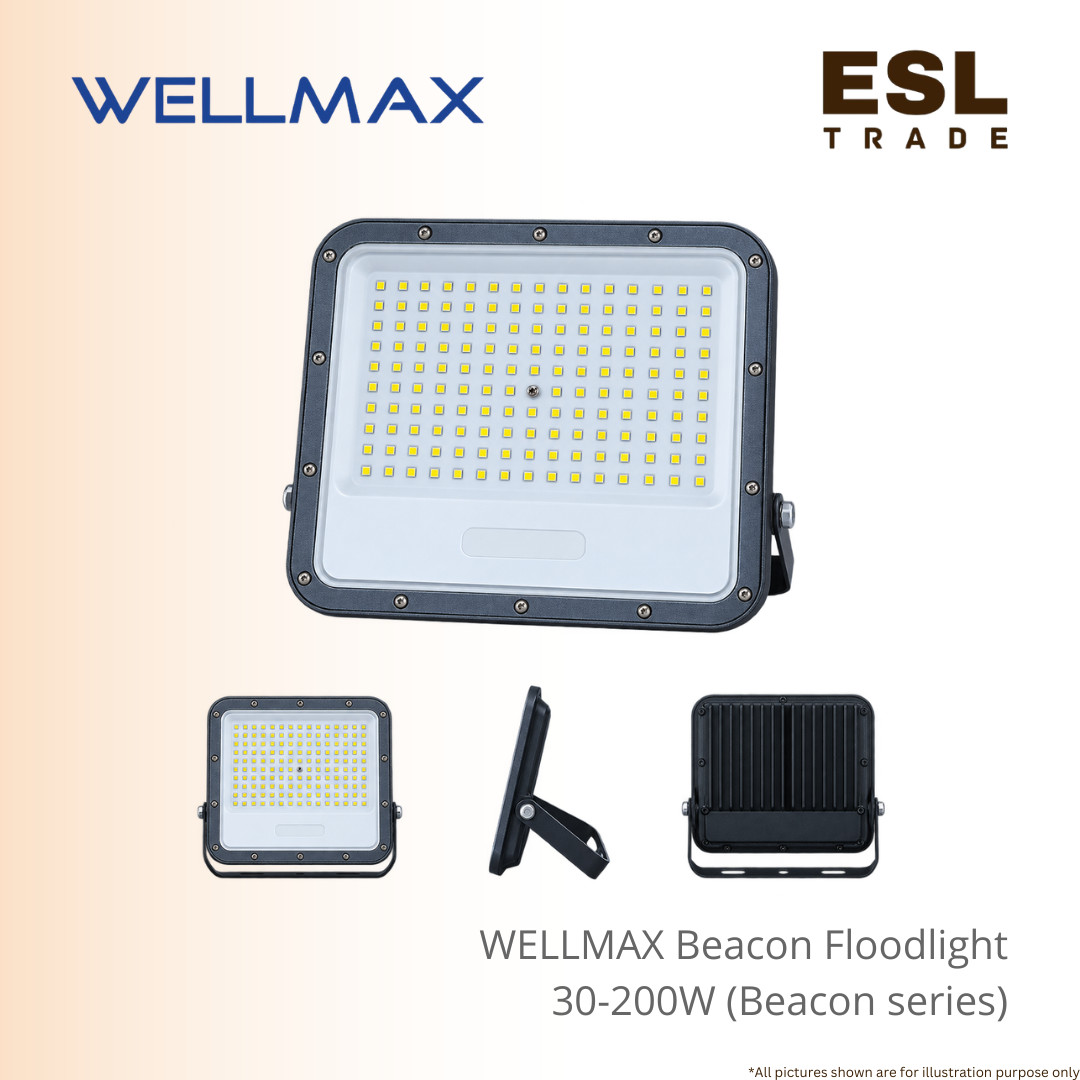

WELLMAX Beacon Series IP65 LED Flood Light 120lm/W All-Screw SKD Excellent High-Efficacy Weatherproof Exterior Luminaire
The WELLMAX Beacon Series LED Flood Light offers a heavy-duty, highly efficient exterior illumination solution engineered to withstand harsh weather conditions across commercial, industrial, and municipal environments.
The WELLMAX Beacon Series LED Flood Light is constructed with a die-cast aluminum body and high-grade aluminum materials, the fixture shell provides impact protection while resisting wind, rain erosion, and dust accumulation.
The optical lens is crafted from anti-yellowing Japanese Teijin polycarbonate (PC) resin, ensuring long-term optical clarity and crack resistance under prolonged UV exposure.
The WELLMAX Beacon Series LED Flood Light is Internal high-quality sealing rings deliver an IP65 protection rating, keeping sensitive components safe from moisture and particle ingress.
The WELLMAX Beacon Series LED Flood Light is engineered with an innovative all-screw structure, the Beacon series is SKD-friendly (Semi-Knocked Down), allowing fast assembly, easier maintenance, and optimized freight logistics for large-scale engineering projects.
Operating at a luminous efficacy of 120lm/W, the luminaire delivers high light output while maintaining low energy consumption.
The WELLMAX Beacon Series LED Flood Light is equipped with built-in 2–4kV surge protection, the driver resists electrical grid fluctuations and lightning induction to minimize maintenance downtime.
The product line spans an extensive wattage range from 10W (1500lm), 50W (7500lm), 100W (15,000 lm), 150W (22,500 lm), up to 200W (30,000lm).
Supporting universal input voltages (100–240V / 220–240V) with a power factor rating (PF ≥ 0.9), the series offers Warm White (3000K), Neutral White (4000K), and Daylight (6500K) options.
Designed with an optimized beam angle for focused reach and visual uniformity (CRI ≥ 80), it carries a nominal service life of 30,000 hours and holds full CE, LVD, RoHS, ErP, and EMC certifications.
Product Details
| Item / Model Series | Wattage (W) | Input Voltage (V) | Luminous Flux (lm) | Luminous Efficacy | Power Factor (PF) | Dimensions (L×W×H) | CCT Options | CRI | Surge Protection | Ingress Protection | Nominal Lifetime (Hrs) | Compliance |
| UFL/SU/0/3/0/SQ | 10W | 100–240V / 220–240V | 1500 lm | 120 lm/W | 0.9 | 141.5mm x 127.5mm x 28mm | 3000K / 4000K / 6500K | ≥ 80 | 2–4kV | IP65 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| UFL/SU/0/3/0/SQ | 50W | 100–240V / 220–240V | 7500 lm | 120 lm/W | 0.9 | 194.1mm x 180.2mm x 28mm | 3000K / 4000K / 6500K | ≥ 80 | 2–4kV | IP65 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| UFL/SU/0/3/0/SQ | 100W | 100–240V / 220–240V | 15,000 lm | 120 lm/W | 0.9 | 251.2mm x 230.5 mm x 29.5mm | 3000K / 4000K / 6500K | ≥ 80 | 2–4kV | IP65 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| UFL/SU/0/3/0/SQ | 150W | 100–240V / 220–240V | 22,500 lm | 120 lm/W | 0.9 | 283.4 mm x 259.7mm x 33.5mm | 3000K / 4000K / 6500K | ≥ 80 | 2–4kV | IP65 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| UFL/SU/0/3/0/SQ | 200W | 100–240V / 220–240V | 30,000 lm | 120 lm/W | 0.9 | 321.7mm x 299.2mm x 34.5mm | 3000K / 4000K / 6500K | ≥ 80 | 2–4kV | IP65 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
Frequently Asked Questions (FAQ)
Q : What are the benefits of the Japanese Teijin PC optical lens?
A : The Japanese Teijin polycarbonate material provides optical clarity, maintains thermal resistance, and prevents yellowing or cracking under outdoor exposure over time.
Q : What does the “All-Screw Structure for SKD” mean?
A : The all-screw mechanical design makes the fixture SKD-friendly (Semi-Knocked Down), allowing efficient knock-down packaging to reduce shipping volume and facilitating assembly or maintenance.
Q : How well protected is the Beacon floodlight against electrical surges?
A : The fixture incorporates built-in 2–4kV surge protection to guard internal circuitry against voltage spikes, lightning induction, and grid supply fluctuations.
Q : Is the Beacon floodlight suitable for severe weather conditions?
A : Yes, featuring a die-cast aluminum shell, internal sealing rings, and an IP65 rating, the fixture resists wind, heavy rain, dust accumulation, and minor mechanical impacts.
Q : What luminous output does the Beacon series offer?
A : Operating at an efficiency of $120\text{ lm/W}$, outputs range from 1500 lm (10W) up to 30,000 lm (200W).
