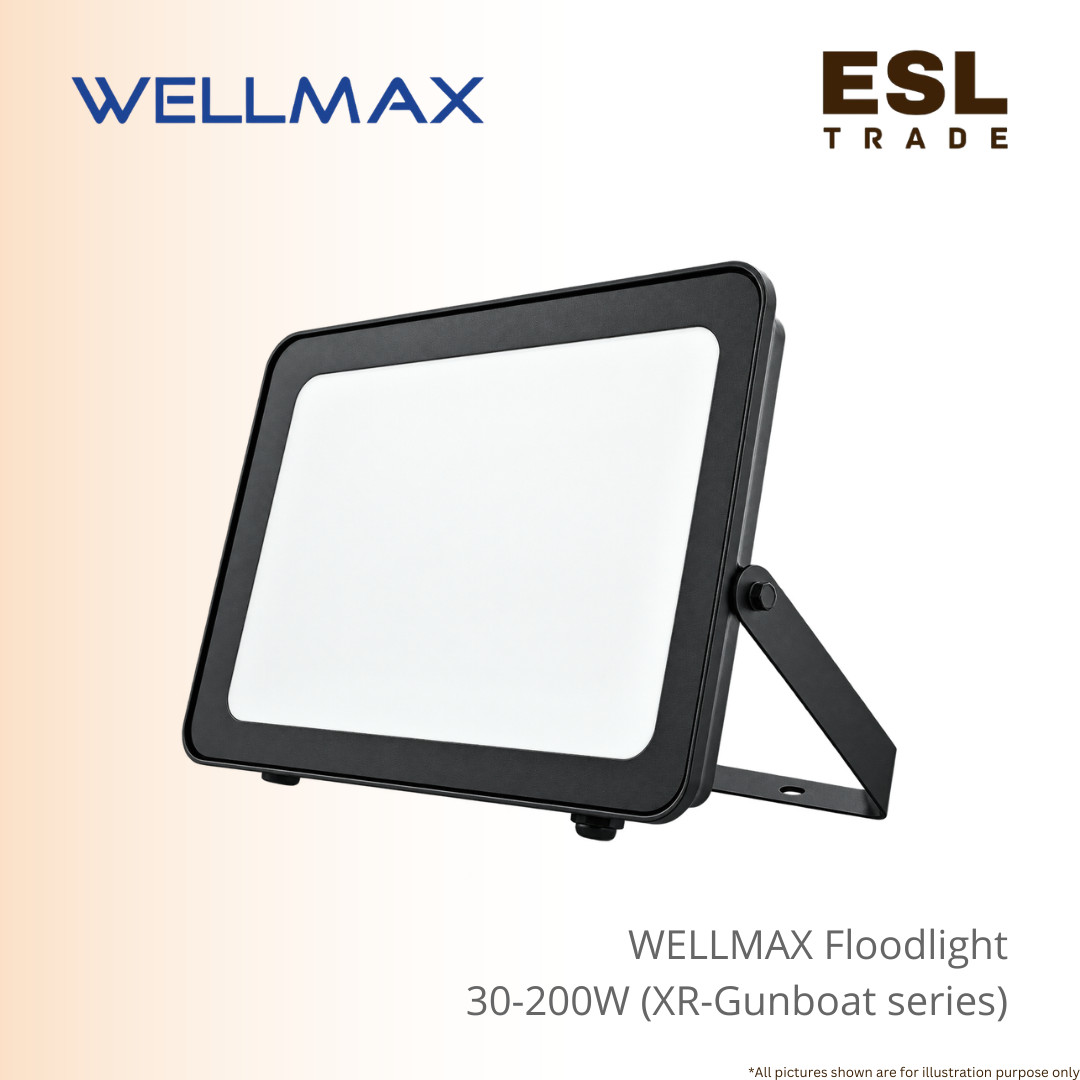

WELLMAX Gunboat Series IP65 LED Flood Light Fortified Tempered Glass Excellent for Heavy-Duty Weatherproof Architectural Spotlight
The WELLMAX Gunboat Flood Light Series offers a heavy-duty, energy-efficient outdoor illumination solution engineered to withstand harsh exterior conditions across commercial, industrial, and residential settings.
The WELLMAX Gunboat Flood Light is designed with an iconic wave-patterned rear housing inspired by marine vessel power, the fixture incorporates a streamlined thermal structure that accelerates heat dissipation and prevents water retention.
This Flood Light is Finished in a stealth black tactile coating, it blends into modern building facades, sports courts, parking lots, exterior perimeters, and industrial yards.
The WELLMAX Gunboat Flood Light is Built for maximum durability, the luminaire features a fortified tempered glass front cover that offers impact resistance (IK06) against physical wear and mechanical impacts.
Sealed with an IP65 ingress protection rating, it effectively resists heavy downpours, windborne dust, and particle accumulation.
Its wide 110° beam angle delivers uniform, high-lumen light coverage, making it a reliable choice for large-area security and landscape lighting.
Operating across standard 220–240V mains supplies, the Gunboat series delivers a luminous efficacy of 100lm/W.
The product family spans multiple power options, including :
- 30W (3000 lm),
- 50W (5000 lm),
- 100W (10000 lm),
- 150W (15000 lm), and
- 200W (20000lm) models.
Available in Warm White (3000K) and Daylight (6500K) color temperatures with a high power factor (PF≥0.9), the series maintains visual consistency with a Color Rendering Index (CRI≥80).
Rated for 25,000 operational hours, the Gunboat floodlight meets international CE, LVD, RoHS, ErP, and EMC standards.
Product Details
| Item / Model Series | Wattage (W) | Input Voltage (V) | Luminous Flux (lm) | Luminous Efficacy | Power Factor (PF) | Dimensions (L×W×H) | Color Temp (CCT) | Beam Angle | CRI | Protection Code | Impact Rating | Lifetime (Hrs) | Compliance |
| XR-GUNBOAT | 30W | 220–240V | 3000 lm | 100 lm/W | 0.9 | 145mm x 110mm x 28mm | 3000K / 6500K | 110° | ≥
80 |
IP65 | IK06 | 25,000h | CE, LVD, RoHS,
ErP, EMC |
| XR-GUNBOAT | 50W | 220–240V | 5000 lm | 100 lm/W | 0.9 | 175mm x 125mm x 30mm | 3000K / 6500K | 110° | ≥ 80 | IP65 | IK06 | 25,000h | CE, LVD, RoHS,
ErP, EMC |
| XR-GUNBOAT | 100W | 220–240V | 10,000 lm | 100 lm/W | 0.9 | 240mm x 190mm x 30mm | 3000K / 6500K | 110° | ≥ 80 | IP65 | IK06 | 25,000h | CE, LVD, RoHS,
ErP, EMC |
| XR-GUNBOAT | 150W | 220–240V | 15,000 lm | 100 lm/W | 0.9 | 310mm x 230mm x 33mm | 3000K / 6500K | 110° | ≥ 80 | IP65 | IK06 | 25,000h | CE, LVD, RoHS,
ErP, EMC |
| XR-GUNBOAT | 200W | 220–240V | 20,000 lm | 100 lm/W | 0.9 | 350mm x 260mm x 33mm | 3000K / 6500K | 110° | ≥ 80 | IP65 | IK06 | 25,000h | CE, LVD, RoHS,
ErP, EMC |
Frequently Asked Questions (FAQ)
Q : What makes the WELLMAX Gunboat housing design unique?
A : The Gunboat series features a wave-patterned rear structure that improves air circulation for rapid heat dissipation and prevents water pooling on the back panel.
Q : Is the Gunboat floodlight suitable for heavy outdoor rain?
A : Yes, the fixture carries an IP65 protection rating, sealing internal electrical components against strong rain showers, water splashes, and dust ingress.
Q : How strong is the front glass cover?
A : The luminaire uses fortified tempered glass rated at IK06 impact resistance, providing defense against accidental impacts and outdoor wear.
Q : What mounting bracket adjustment is available?
A : The Gunboat floodlight comes with a flexible mounting bracket that rotates to support precise angling on walls, ground surfaces, or overhead structures.
Q : What wattages and lumen outputs are available?
A : The series offers five wattage models: 30W (3000lm), 50W (5000 lm), 100W (10,000lm), 150W (15,000 lm), and 200W (20,000lm).
