Description

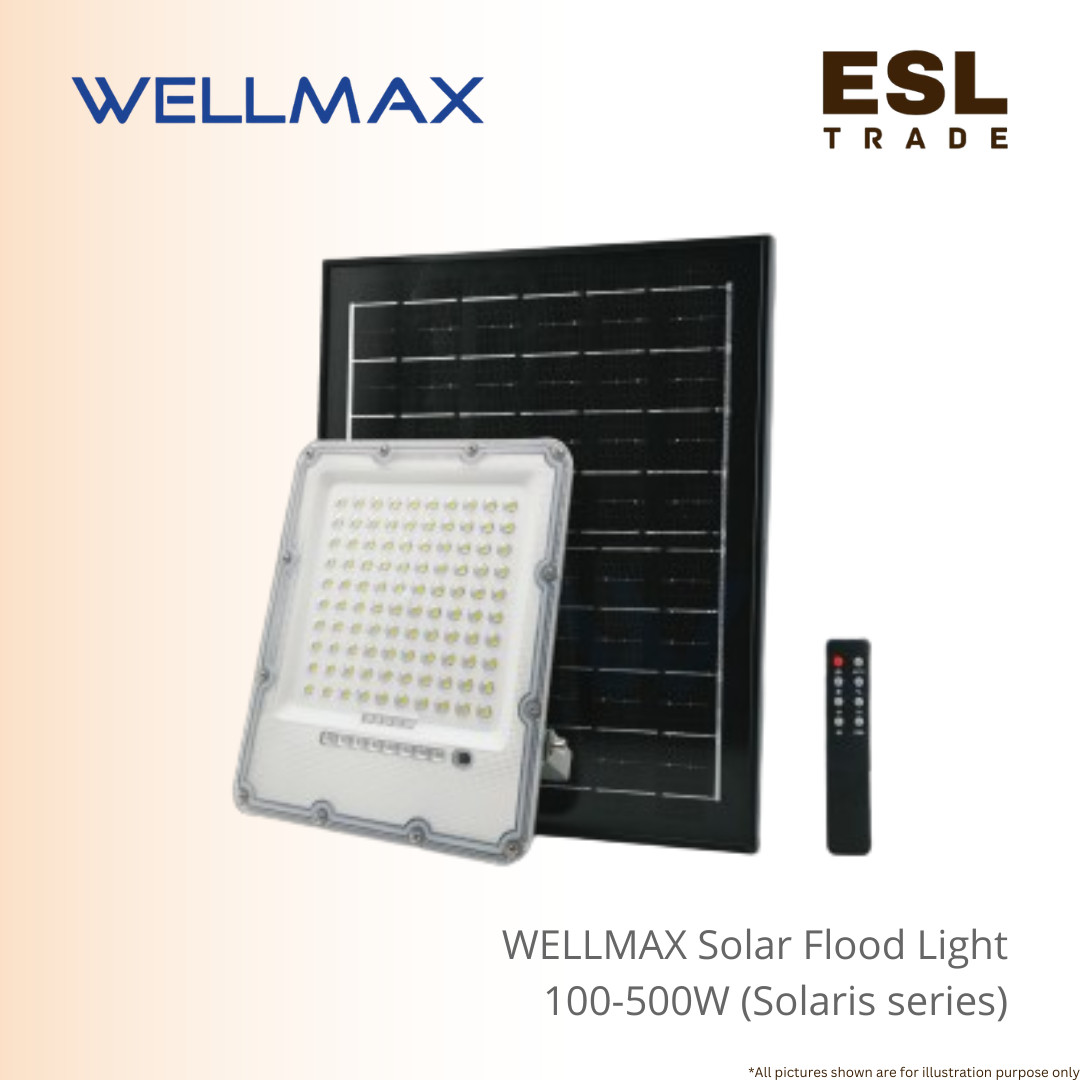

WELLMAX Solaris Series IP65 Solar LED Flood Light High Conductive Die-Cast Aluminum SKD (100W-500W, Outdoor Commercial) Efficient Easy-Assembly Exterior Spotlight
The WELLMAX Solaris Series Solar LED Flood Light (Assemble Series) provides a reliable, grid-free outdoor lighting solution engineered for commercial perimeters, industrial compounds, parking lots, and sports facilities.
The WELLMAX Solaris Series Solar LED Flood Light is a built with a die-cast aluminum housing for elevated thermal conductivity and structural durability, the luminaire efficiently dissipates heat to extend system longevity.
The WELLMAX Solaris Series Solar LED Flood Light is sealed against heavy rain, dust, and particle ingress with an IP65 protection rating, it is further reinforced with IK08 mechanical impact resistance to withstand harsh exterior conditions.
A defining feature of the Solaris Assemble Series is its SKD-friendly (Semi-Knocked Down) design.
The WELLMAX Solaris Series Solar LED Flood Light is engineered with a detachable lens, replaceable battery compartment, and removable bracket, the fixture simplifies field assembly, servicing, and component upgrades while significantly optimizing freight and logistics costs for large projects.
The solar power unit features long-life battery technology rated for up to 1000 cycling times, paired with high-efficiency photovoltaic solar panels (5V / 12W to 5V / 30W options) to store maximum solar energy during daylight hours.
The WELLMAX Solaris Series Solar LED Flood Light is operating completely independent of the main electrical grid, the Solaris series delivers smooth light coverage with an asymmetric 90° x 130° optical beam spread and a Color Rendering Index (CRI ≥ 70).
The product line includes a wide range of output options:
- 100W (800 lm),
- 200W (1200 lm),
- 300W (1650 lm),
- 400W (2400 lm), and
- 500W (3200 lm).
Supported by comprehensive safety testing, the series carries full CE, LVD, RoHS, ErP, and EMC compliance certifications.
Product Details
| Item / Model Series | Wattage (W) | Luminous Flux (lm) | Battery Specification | Solar Panel Specification | Solar Panel Dimensions (mm) | Floodlight Body Dimensions (mm) | Beam Angle | CRI | Impact Rating | Ingress Protection | Battery Cycle Life | Compliance |
| UFL/SF/0/1/0/AS | 100W | 800 lm | 3.2V / 6AH | 5V / 12W | 335mm x 250mm x 16mm | 190mm x 170mm x 48mm | 90° x 130° | ≥ 70 | IK08 | IP65 | 1000 Cycles | CE, LVD, RoHS,
ErP, EMC |
| UFL/SF/0/1/0/AS | 200W | 1200 lm | 3.2V / 10AH | 5V / 12W | 350mm x 290mm x 17mm | 220mm x 200mm x 50mm | 90° x 130° | ≥ 70 | IK08 | IP65 | 1000 Cycles | CE, LVD, RoHS,
ErP, EMC |
| UFL/SF/0/1/0/AS | 300W | 1650 lm | 3.2V / 15AH | 5V / 16W | 400mm x 350mm x 17mm | 245mm x 220mm x 52mm | 90° x 130° | ≥ 70 | IK08 | IP65 | 1000 Cycles | CE, LVD, RoHS,
ErP, EMC |
| UFL/SF/0/1/0/AS | 400W | 2400 lm | 3.2V / 21AH | 5V / 22W | 450mm x 350mm x 17mm | 290mm x 250mm x 58mm | 90° x 130° | ≥ 70 | IK08 | IP65 | 1000 Cycles | CE, LVD, RoHS,
ErP, EMC |
| UFL/SF/0/1/0/AS | 500W | 3200 lm | 3.2V / 27AH | 5V / 30W | 530mm x 350mm x 17mm | 320mm x 270mm x 60mm | 90° x 130° | ≥ 70 | IK08 | IP65 | 1000 Cycles | CE, LVD, RoHS,
ErP, EMC |
Frequently Asked Questions (FAQ)
Q : What are the key features of the Solaris “Assemble Series” SKD design?
A : The Assemble Series features a modular, SKD-friendly (Semi-Knocked Down) structure with a detachable optical lens, replaceable internal battery, and removable mounting bracket, making assembly, transportation, and component servicing fast and straightforward.
Q : Can the battery in the Solaris floodlight be replaced after long-term use?
A : Yes, the unit is equipped with a accessible, replaceable battery designed for up to 1000 charge-discharge cycles, allowing convenient field maintenance without replacing the main light fixture.
Q : What material is used for the floodlight body?
A : The body is constructed from die-cast aluminum, providing high thermal conductivity to manage heat dissipation effectively while offering strong corrosion and weather resistance.
Q : Is the Solaris solar floodlight suitable for severe weather conditions?
A : Yes, the luminaire holds an IP65 water and dust protection rating and an IK08 impact resistance score, protecting it against heavy rain and mechanical stress.
Q : What light distribution pattern does this floodlight provide?
A : The series utilizes an optical lens with a 90° x 130° beam spread to ensure wide and uniform illumination across horizontal and vertical surfaces.
